JACOBSEN FAIRWAY 305 Series CG2
SAFETY AND OPERATION & MAINTENANCE MANUAL
en-19
6 CONTROLS

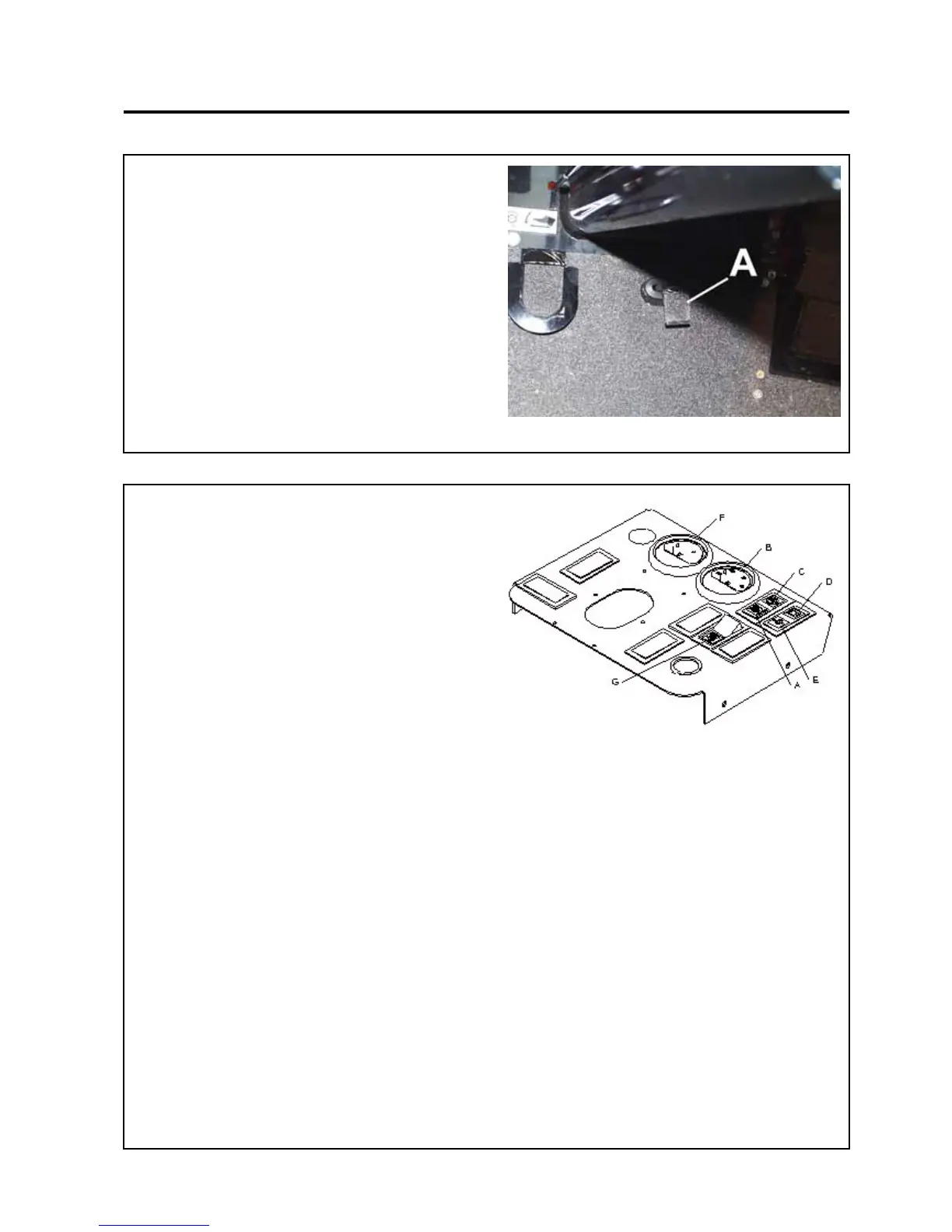

6.15 INSTRUMENT PANEL
A. ENGINE PREHEAT INDICATOR LAMP
Colour green, on when the ignition switch is turned
clockwise to the pre-heat position. Once the lamp
goes out the engine can be started.
B. ENGINE TEMPARATURE GUAGE
Indicates current temparature of engine, whilst
running.
C. HYDRAULIC OIL WARNING LAMP
Colour red, on when the hydraulic oil temperature
reaches a preset level. If the lamp comes on bring
the machine to a stop, disengage the cutting units,
apply the parking brake and stop the engine.
D. CHARGING WARNING LAMP
Colour red, on when ignition is switched on and will
go out when the engine is started. If the light comes
on while the engine is running, the fan belt may be
slipping or broken or a fault in the electrical system
is indicated and should be investigated. STOP
IMMEDIATELY.
E. ENGINE OIL PRESSURE WARNING LAMP
Colour red, on when the ignition is switched on, and
will go out once the engine has started. If the light
comes on while the engine is running - STOP
IMMEDIATELY as this indicates that the engine oil
pressure is too low. Check the level of oil in the sump
and top up as necessary. Check the oil pressure
sender switch. Continued operation may cause
extensive damage to the engine.
F. FUEL GUAGE
Located to the left of the engine temparature guage.
Monitors fuel level.
6.14 UNIT TRANSPORT STOPS
Depressing the pedal (A) while lifting the cutting units
allows cutting units 1 to 5 to be raised for machine
transport.
