JACOBSEN FAIRWAY 305 Series CG2
SAFETY AND OPERATION & MAINTENANCE MANUAL
en-64

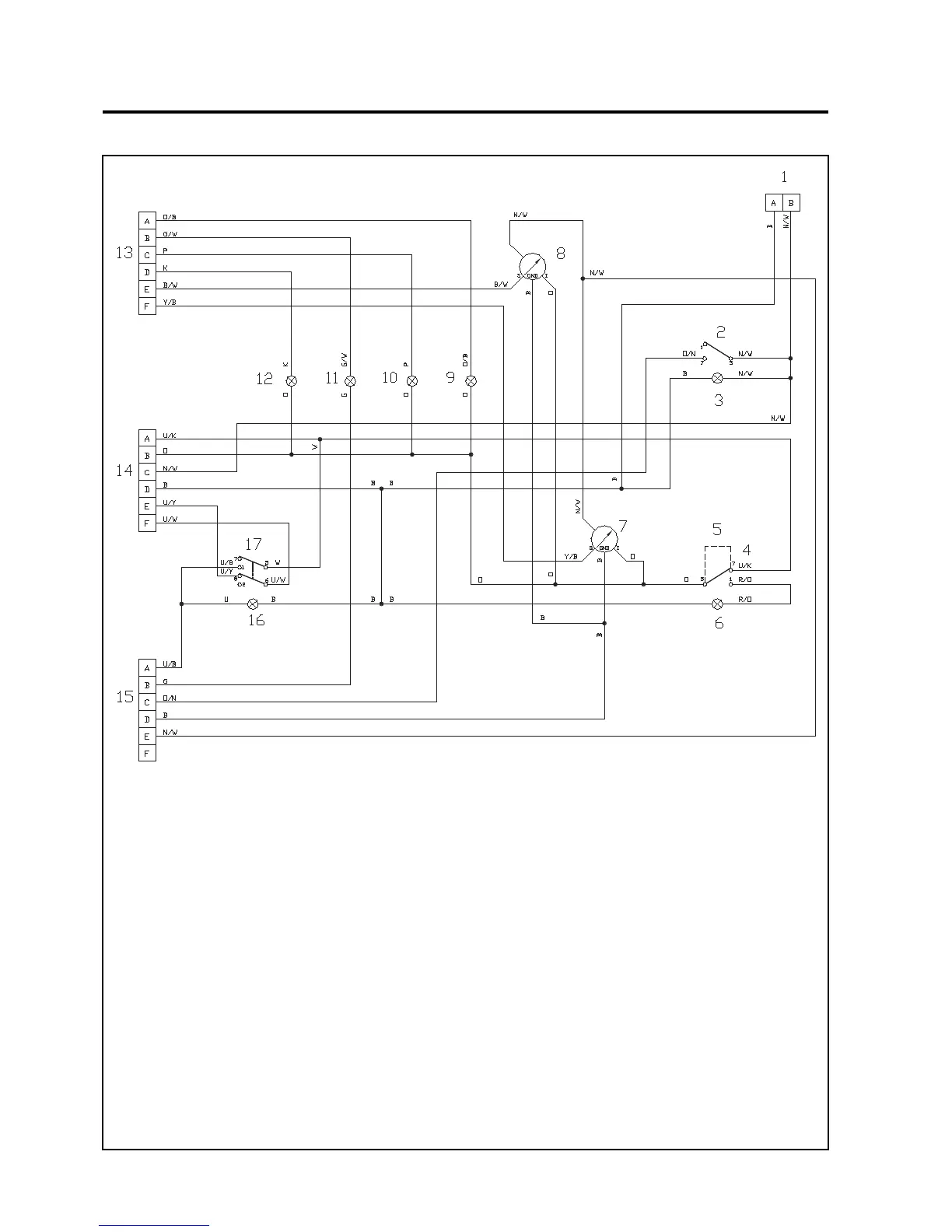

KEY TO WIRING DIAGRAM
1LIGHTS
2 LIGHT SWITCH
3 LIGHTS SWITCH LAMP
44WD SWITCH
5 DETACHABLE LINK
6 4WD SWITCH LAMP
7TEMP GAUGE
8 FUEL GAUGE
9 ENG OVER HEAT
10 OIL PRESS
11 PRE-HEAT
12 CHARGE
13 SPLIT TO MAIN HARNESS # 1
14 SPLIT TO MAIN HARNESS # 2
15 SPLIT TO MAIN HARNESS # 3
16 CUTTER SWITCH LAMP
17 CUTTER SWITCH
11.3 ELECTRICAL CIRCUIT INSTRUMENT
CABLE COLOUR CODE
RRed
GGreen
OOrange
SGrey
BBlack
WWhite
KPink
P Violet
Y Yellow
UBlue
NBrown
LG Light Green
E.G. R/W = Red/White
11 SCHEMATICS
