8 LUBRICATION AND MAINTENANCE
8.6 HYDRAULIC TEST PORTS
If any problems are experienced with the hydraulic
system service ports are provided to enable
pressures to be checked.
All tests, unless stated otherwise, should be carried
out with the hydraulic oil at normal working
temperature.

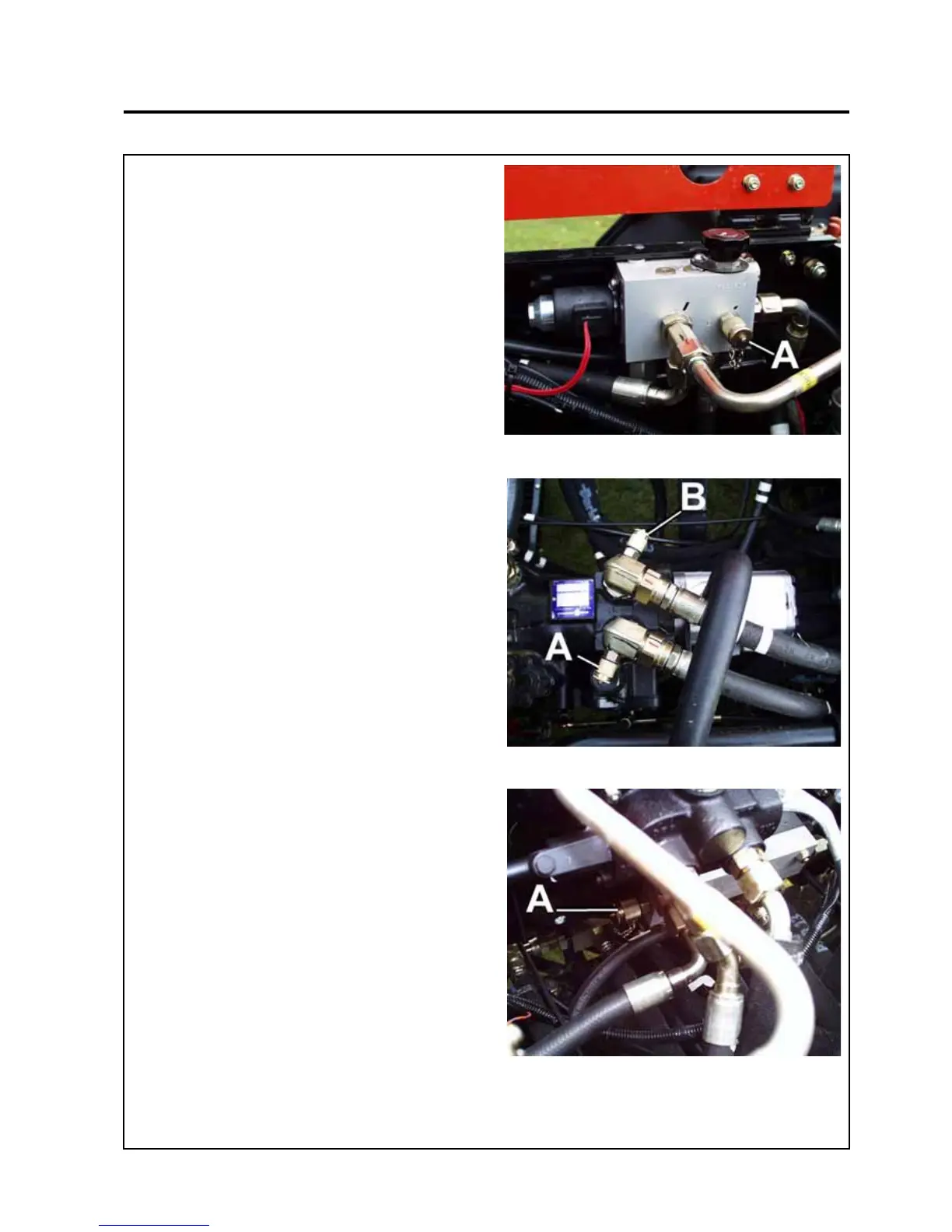

TEST PORTS (Fig.7,8,9):
1. Deck drive pressure: 207 bar (3000 psi).
(A(Fig.7))
2. Four wheel drive pressure: 207 bar (3000
psi). (A/B(Fig.8)).
3. Lift and power steering pressure: 83 bar
(1200 psi). (A(Fig.9)).
NOTE: Any servicing of the hydraulic system must
be carried out by trained service personnel.
Fig.7
Fig.8
Fig.9
LUBRICATION
