9.3 ENGINE ACCESS
The rear section of the unit (Fuel & Hydraulic
Tanks) can be raised for better access to the
engine.
a. Raise the seat platform.
b. Loosen the lock bolt above the rear fork.
c. Raise the fuel tank frame.
Support the frame by pivoting the rod beneath the
fuel tank down and securing it in the cup next to the
fork pivot (See Fig. 9.3).

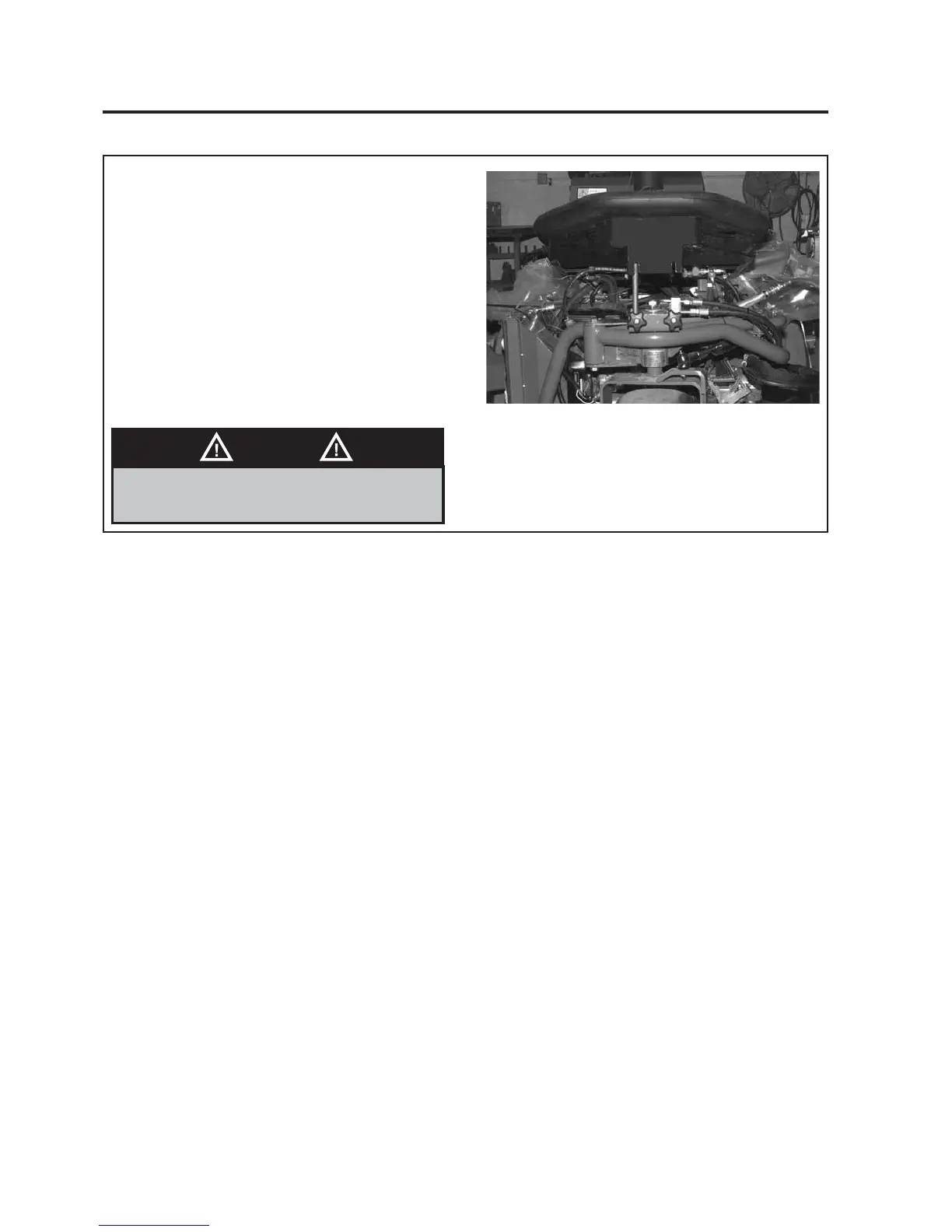

Figure 9.3
Rear Section of Unit Raised
9 LUBRICATION & MAINTENANCE
DO NOT remove the fuel tank cap while
the tank is in the raised position.
WARNING
