JACOBSEN G-PLEX III Series: FH & FJ
SAFETY AND OPERATORS MANUAL
9.29
OIL
COOLER & RADIATOR DIESEL
MACHINE
a.

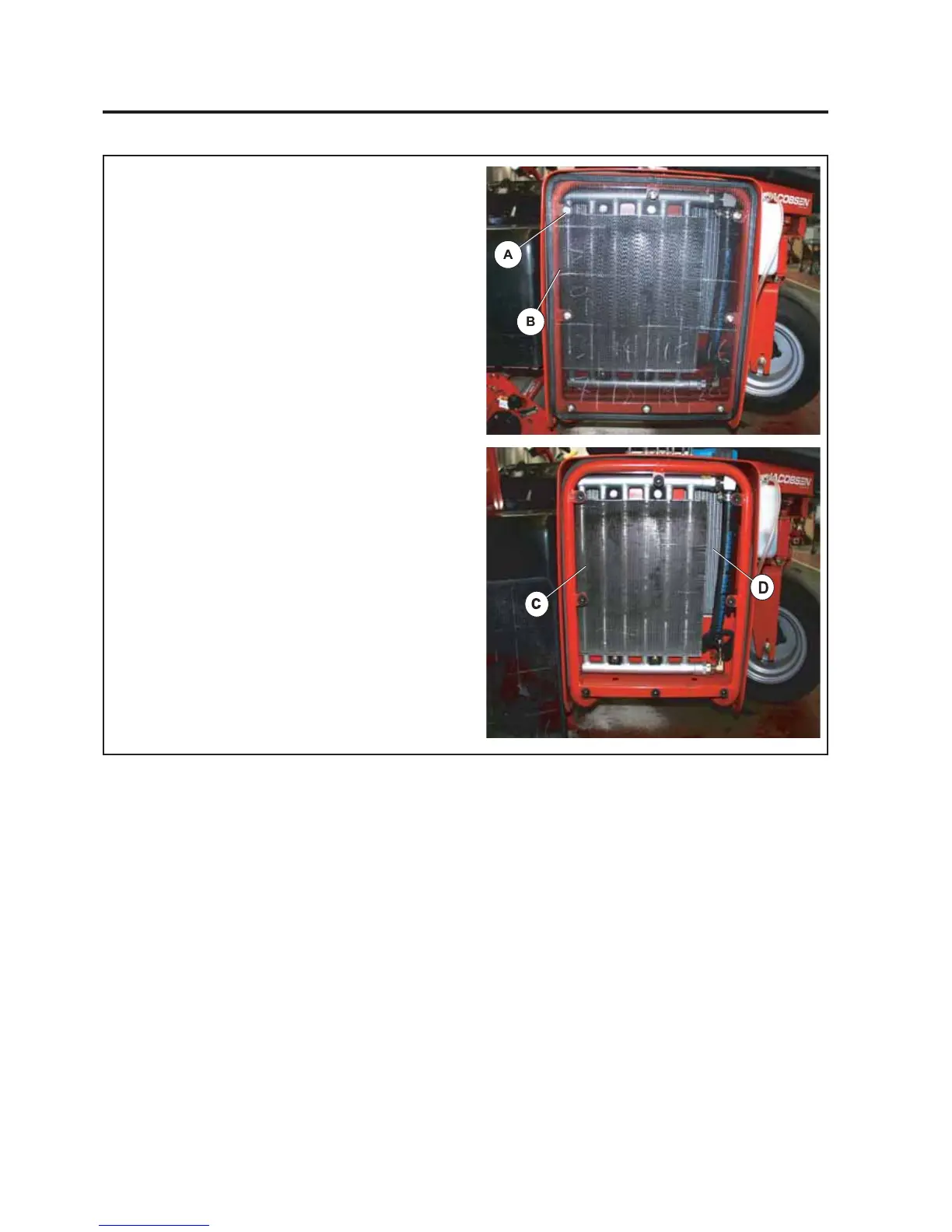

Release the 8 screws A holding the radiator/
oil cooler screen B to the cowling.
b.
Remove screen and clean.
c
.
Remove any debris from inside of cowling
and around oil cooler C and radiator D.
d.
Replace screen, secure with screws.
9
LUBRICATION & MAINTENANCE
53
55
Table of Contents
Default Chapter
3
Table of Contents
3
2 Introduction
4
Important
4
Product Identification
4
Guidelines for the Disposal of Products
5
3 Safety Instructions
6
Operating Instructions
6
Safety Signs
6
Starting the Engine
6
Driving the Machine
6
Transporting
6
Leaving the Driving Position
7
Slopes
7
Blocked Cutting Cylinders
7
Adjustments, Lubrication and Maintenance
7
Important 4
8
4 Specifications
9
Engine Specification
9
Machine Specification
9
Cutting Unit
9
Dimensions
10
Vibration Level
11
Slopes
11
Recommended Lubricants
11
Fuel Recommendations - Diesel
12
Fuel Recommendations - Gasoline
12
Cutting Unit Specification
12
Cutting Performance
12
Conformity Certificates
13
5 Decals
17
Safety Decals
17
Instruction Decals
18
6 Controls
19
Control Panel - Diesel
19
Control Panel - Gasoline
20
Control Pedals
21
Parking Brake Pedal
21
A Parking Brake Lever
21
Paddle/Footswitch Mow/Lift
22
Joystick Mow/Lift
22
7 Operation
23
Daily Inspection
23
Operator Presence and Safety Interlock System
24
Controller Error Codes
24
Operating Procedure
25
Mowing Procedures
26
Mowing on Slopes
27
Set up
27
8 Setup
30
Mounting the Cutting Heads
31
Reel Motor Mounting
32
Cutting Cylinder Lift & Lower Rate & Synchronisation
33
9 Lubrication & Maintenance
35
Lubrication and Maintenance Chart
35
Lubrication Diagram - Gasoline
36
Lubrication Diagram - Diesel
37
Engine Access
38
Engine Oil Level - Gasoline
39
Engine Oil Change- Gasoline
39
Engine Oil Filter- Gasoline
40
Air Filter - Gasoline
40
Air Cleaner - Gasoline
41
Engine Fuel Filter - Gasoline
41
Engine Oil Level - Diesel
42
Engine Oil Change - Diesel
43
Engine Oil Filter - Diesel
43
Engine Fuel Filter - Diesel
44
Air Filter - Diesel
44
Bleeding the Fuel System - Diesel
45
Air Cleaner - Diesel
46
Fan Belt Tension - Diesel
46
Tires
47
Brakes
47
Hydraulic Oil Filter
48
Hydraulic Oil
48
Hydraulic System
49
Hydraulic Pump Bypass Valve
49
Free Wheeling or Towing Unit
49
Battery
50
Jump Starting
51
Oil Cooler Gasoline Machine
52
Radiator Diesel Machine
53
Oil Cooler & Radiator Diesel Machine
54
10 Adjustment
55
Cutting Head Maintenance
55
Bedknife Adjustment
56
Height of Cut
57
Control Arm Adjustment
58
Rear Swing out Arm
59
Levelling Linkage for the Front Cutting Heads
60
Mow/Transport Speed Control
61
Speed Control Pedal
62
Seat Adjustment Lever
62
Backlapping
63
11 Schematics
67
Hydraulic Circuit
67
Electrical Circuit - Gasoline
69
Electrical Circuit - Diesel
71
12 Guarantee / Sales & Service
