LF 4675 / LF 4677

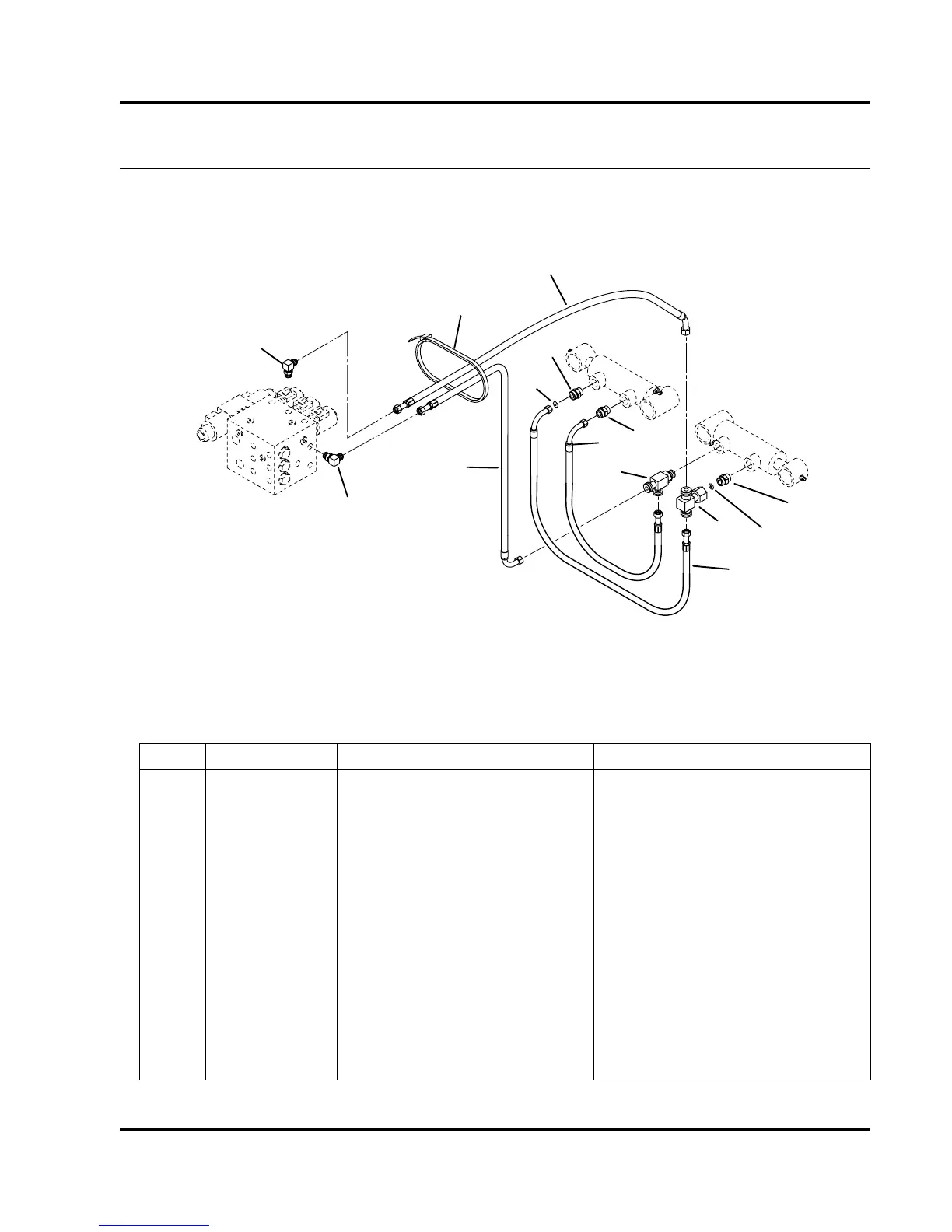

31.1 Rear Lift Hydraulics
7 Gang Units (LF 4675 and LF 4677)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1003352 1 Hose, Left Rear to Right Rear Base Ports
2 1003351 1 Hose, Left Rear to Right Rear Rod Ports
3 1003350 1 Hose, Lift Valve to Inside Tee Lift Valve Port 11
4 1003349 1 Hose, Lift Valve to Outside Tee Lift Valve Port 4
5 340061 2 Adaptor, 90°
6 340263 1 Adaptor, Tee Base Port
7 340143 1 Adaptor, Tee Rod Port
8 3000953 2 Disk, 0.040 Orifice
9 339979 3 Adaptor, Straight
10 473142 1 Tie Wrap
