Jacobsen LF 4677

80
> Change from previous revision
LF 3400 / LF 3800

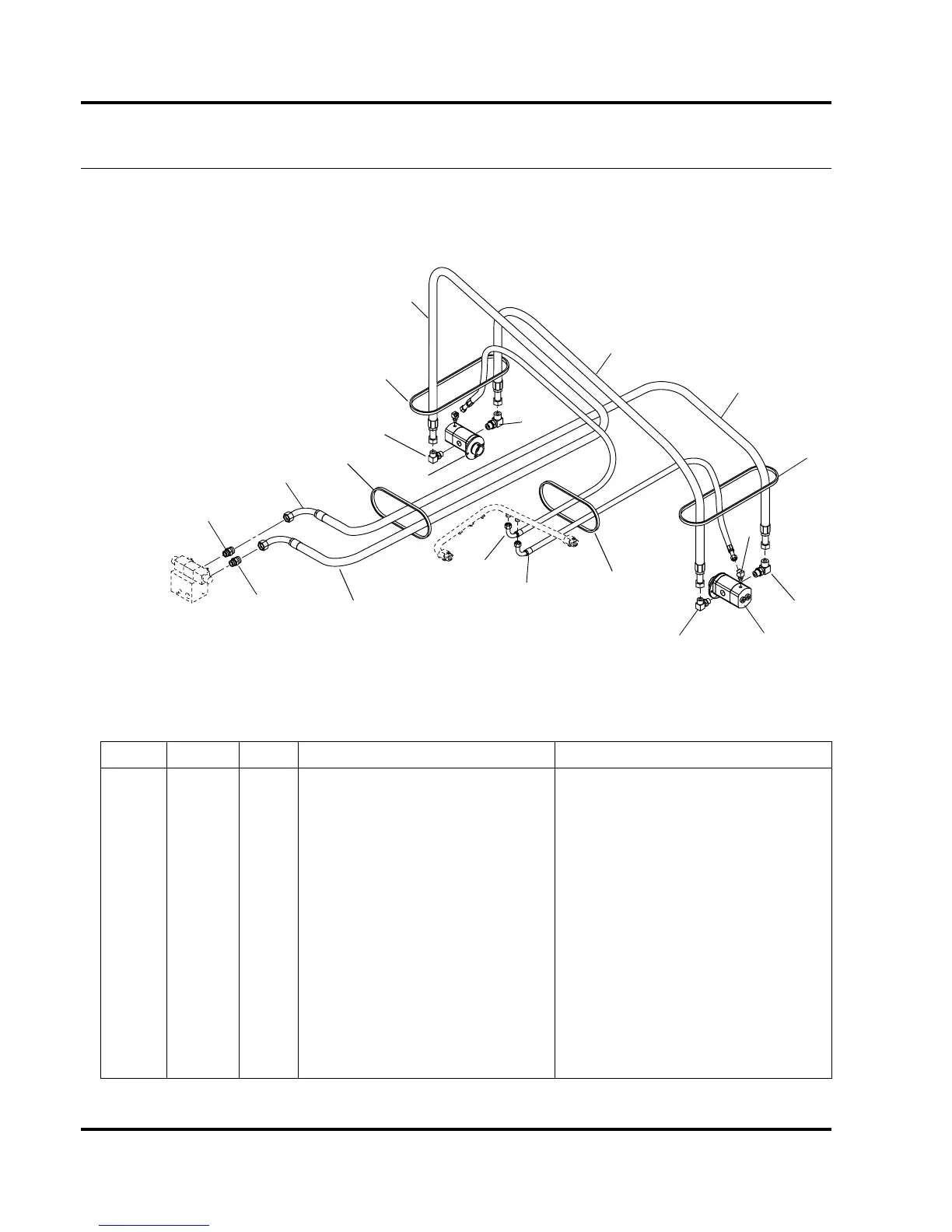

34.1 Rear Reel Hydraulics
5 Gang Units (LF 3400, LF 3800 and LF 3400 Turbo)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1003336 1 Hose, Valve to Right Rear Motor
2 1003443 1 Hose, Right Rear to Left Rear Motor
3 1003335 1 Hose, Left Rear Motor to Valve
4 1003449 1 Hose, Left Rear Drain
5 1003448 1 Hose, Right Rear Drain
6 339989 2 Adapter, Straight
7 340070 4 Adapter, 90°
8 340022 2 Adapter, 45°
9 2822503 2 Motor, 5” Diameter Reel LF 3400 See 53.1
9 1002620 2 Motor, 7” Diameter Reel LF 3800 See 54.1
10 473142 4 Tie Wrap
1
2
3
4
5
6
6
7
7
7
7
8
9
9
10
10
10
10
1
3
