Jacobsen LF 4677 Parts And Maintenance Manual

101
> Change from previous revision
1 / 7
2
3
4
5
3
AB
G
*Used to power both front and rear reels
for LF 3400 and LF 3800 units and for front
reels only on LF 4675 and LF 4677 units.
6
LF 4675 / LF 4677

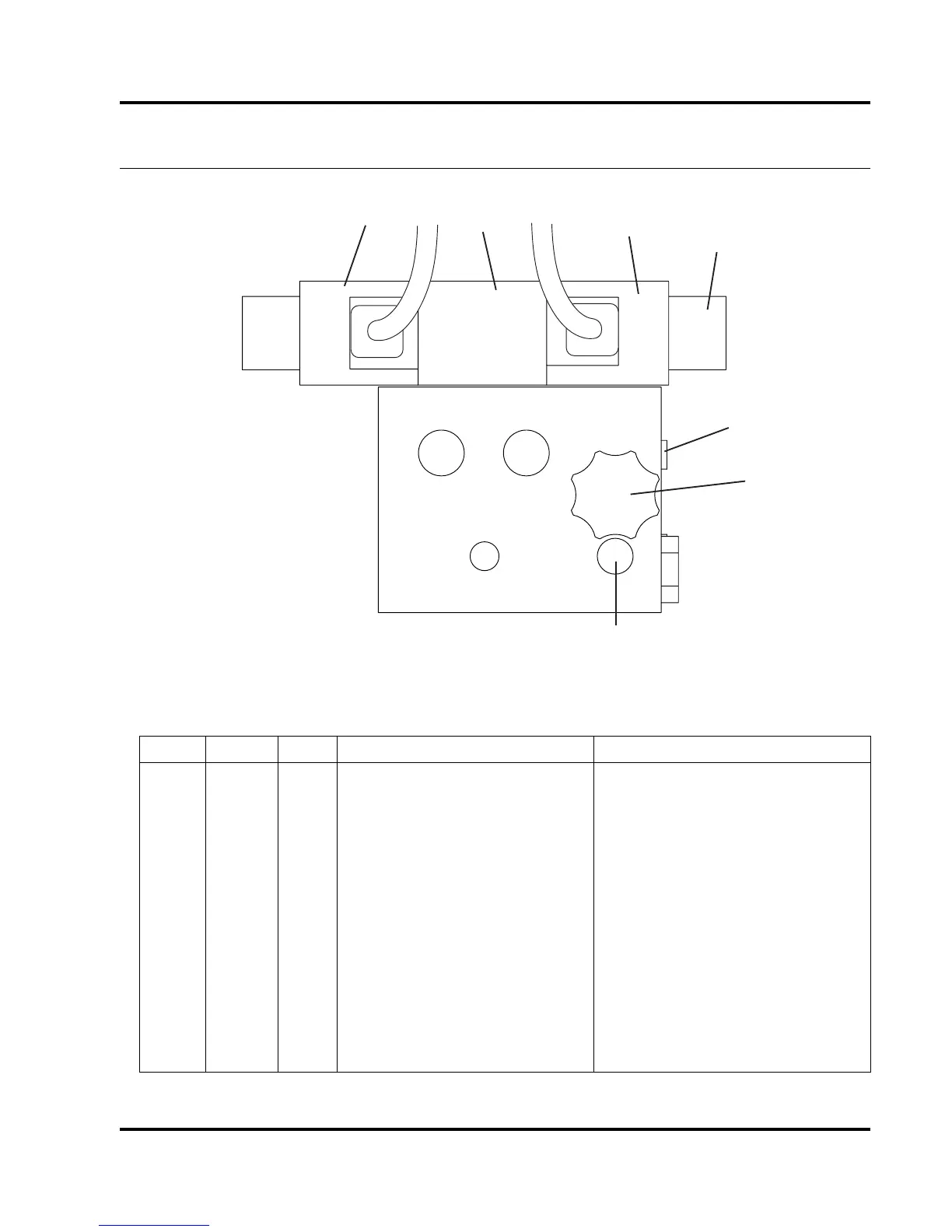

48.1 Reel Valve
Part Number 2822502
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
5003080 1 Flow Control
5003579 1 • Flow Control Seal Kit
2 5003032 1 Solenoid Vlave
339909 4 • O-Ring
3 2812374 2 Coil
4 5002157 3 Port Plug
5 5001065 3 Port Plug
6 4101440 2 Nut, Coil, with “O”-Ring
7 4105980 1 Knob, Flow Control

Jacobsen LF 4677 Specifications

General

Brand	Jacobsen
Model	LF 4677
Category	Lawn Mower
Language	English
