LF 4675 / LF 4677

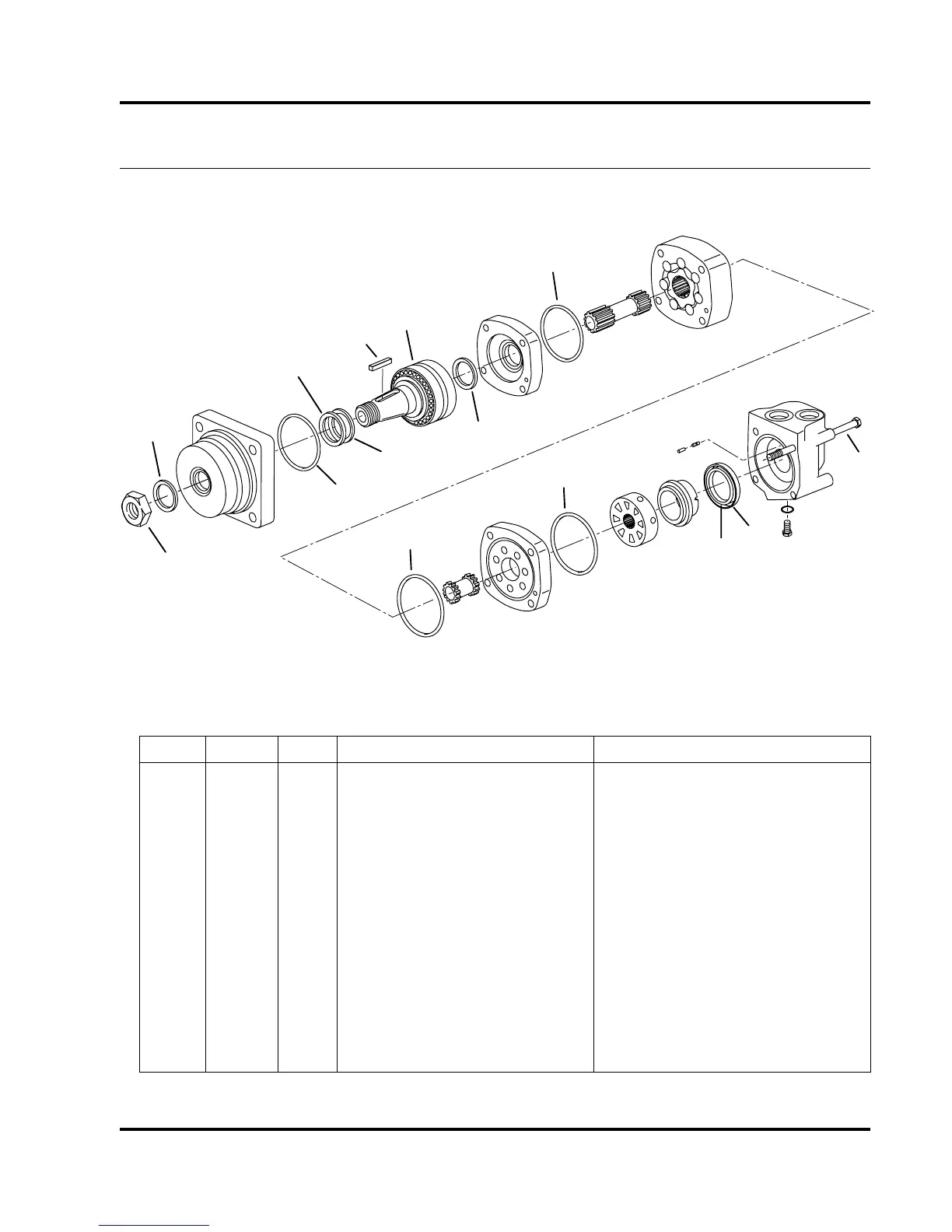

50.1 Rear Wheel Motor
Part Number 390859
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
A1Seal Exclusion
2 A 4 Seal, 3” I.D.
3 A 1 Back Up Ring
4 A 1 Shaft Seal
5 554781 1 Shaft and Bearing Kit
6 554780 1 Key
7 554779 1 Hex Nut
8 A 1 Shaft Face Seal
9 A 1 Inner Face Seal
10 A 1 Outer Face Seal
11 554782 4 Bolt
554783 1 Seal Kit Includes Items Marked A
