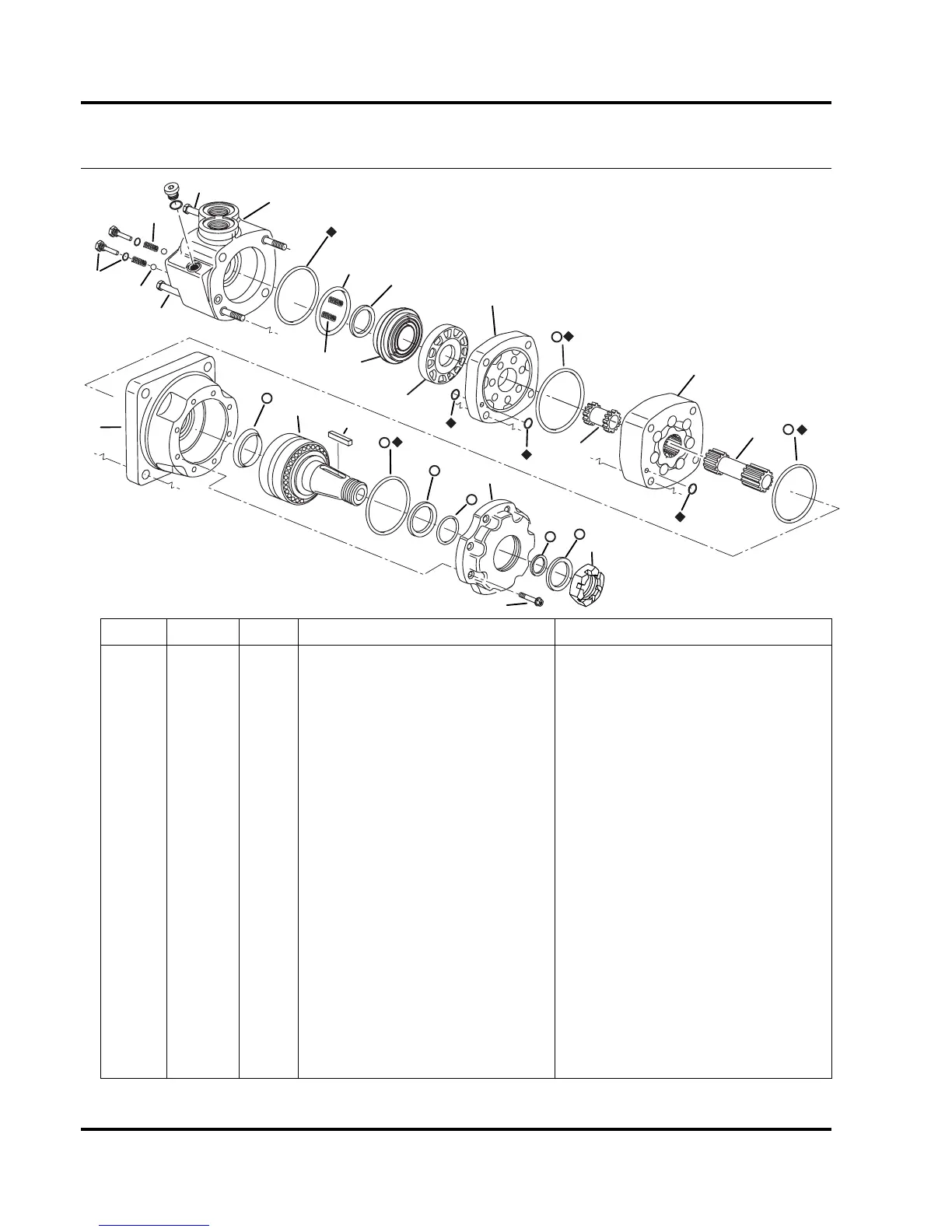

LF 3400 / LF 3800
49.1 Front Wheel Motor
Part Number 1001757
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
558066 8 Screw, Torx
2 5002110 1 Front Retainer
3 558063 1 Shaft and Bearing Kit
4 557624 1 Nut, Hex
5 557623 1 Key
6 558064 1 Bearing Housing
7 557629 1 Drive
8 557630 1 Geroler
9 557632 1 Drive, Valve
10 557631 1 Plate, Valve
11 557633 1 Valve
12 557637 1 Balance Ring and Pins
◆ 13 557634 1 Seal, Inner Face
◆ 14 557635 1 Seal, Outer Face
15 557636 2 Spring
16 557650 3 Bolt, 5-3/4”
17 557638 1 Housing, Valve
18 557639 2 • Check Plug Assembly
19 557642 2 • Spring
20 557640 2 • Ball, Steel
21 5000318 1 Bolt
◆ Included In Seal Kit 557651
❍ Included In Seal Kit 5002111
