JACOBSEN TR3
SAFETY, OPERATORS & MAINTENANCE MANUAL
6CONTROLS

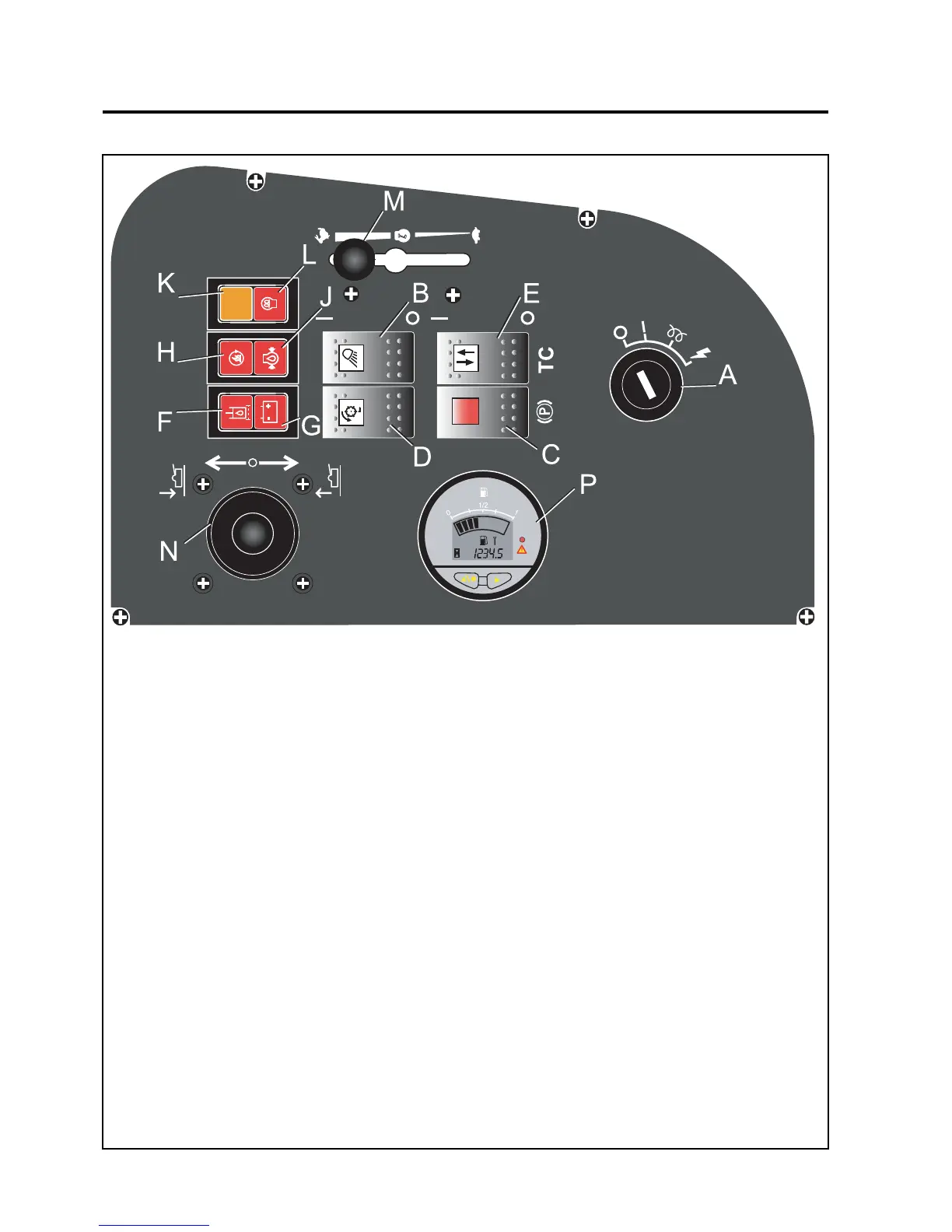

6.1 INSTRUMENT PANEL
A: Starter Key Switch
B: Working Light Switch
C: Parking Brake Switch
D: Cutter Switch
E: Weight Transfer Switch
F: Blocked Hydraulic Filter Warning Lamp
G: Charge Warning Lamp
H: Engine coolant Temperature Warning Lamp
J: Engine Oil Pressure Warning Lamp
K: Control Module Fault Warning Lamp
L: Engine Preheat Indicator Lamp
M: Throttle Control Lever
N: Joystick Unit Lift/Lower Control
P: Multi Function Gauge
