JACOBSEN TR3
SAFETY, OPERATORS & MAINTENANCE MANUAL

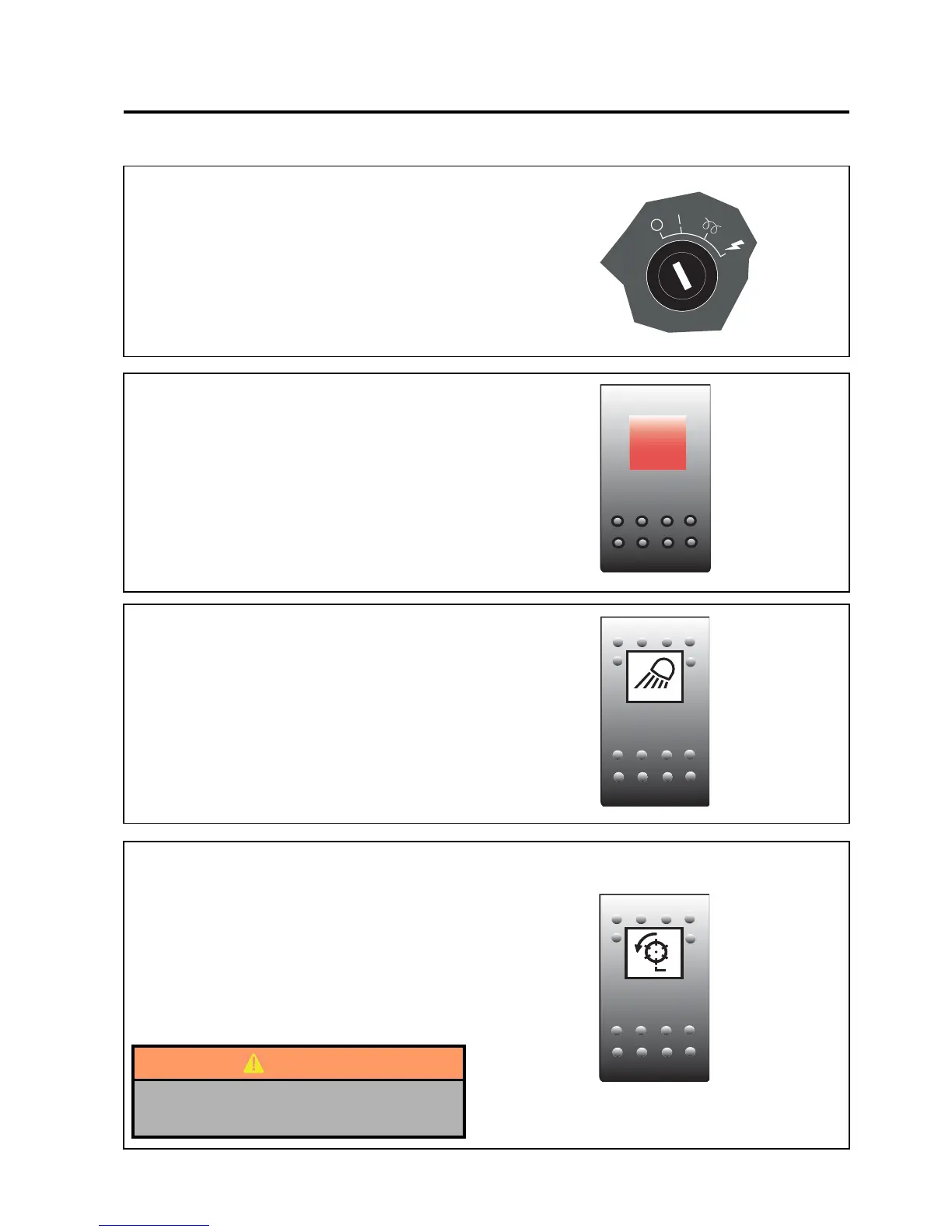

6.1A STARTER KEY SWITCH
The starter key (A) should be turned clockwise to the
'pre-heat' (No. 2) position to heat the glowplugs when
the green warning lamp goes out, on warning lamp
display module, turn the starter key clockwise to the
'start' (No. 3) position to start the engine. After
starting, the key should be released and allowed to
return automatically to the 'on' (No. 1) position for
normal running.
6.1B PARKING BRAKES
When the engine is running the Parking brake is
applied by sliding back the orange button on the
rocker and depressing the switch on the control
panel.
When the engine is switch off the parking brake is
automatically applied.
To release the parking brake depress the opposite
end of the rocker switch.
DO NOT apply the brake when the machine is
moving.
6.1C WORKING LIGHT SWITCH
Push bottom of the rocker switch to turn light on.
When the working light is on the switch is illuminated.
Push top of rocker switch to turn working light off.
6.1D CUTTING UNIT SWITCH
To commence cutting ensure speed limiter is in mow
position and the units have been lowered.
Push bottom of the rocker switch and move joystick
towards the lower position.
To stop cutter unit rotation push top of rocker switch.
(Cutting units stop rotating automatically when
raised.)
WARNING
If units are lowered with the cutting switch
engaged they will start immediately.
