12.4 ELECTRICAL CIRCUIT FUSES AND RELAYS
12 SCHEMATICS
FUSES & RELAYS

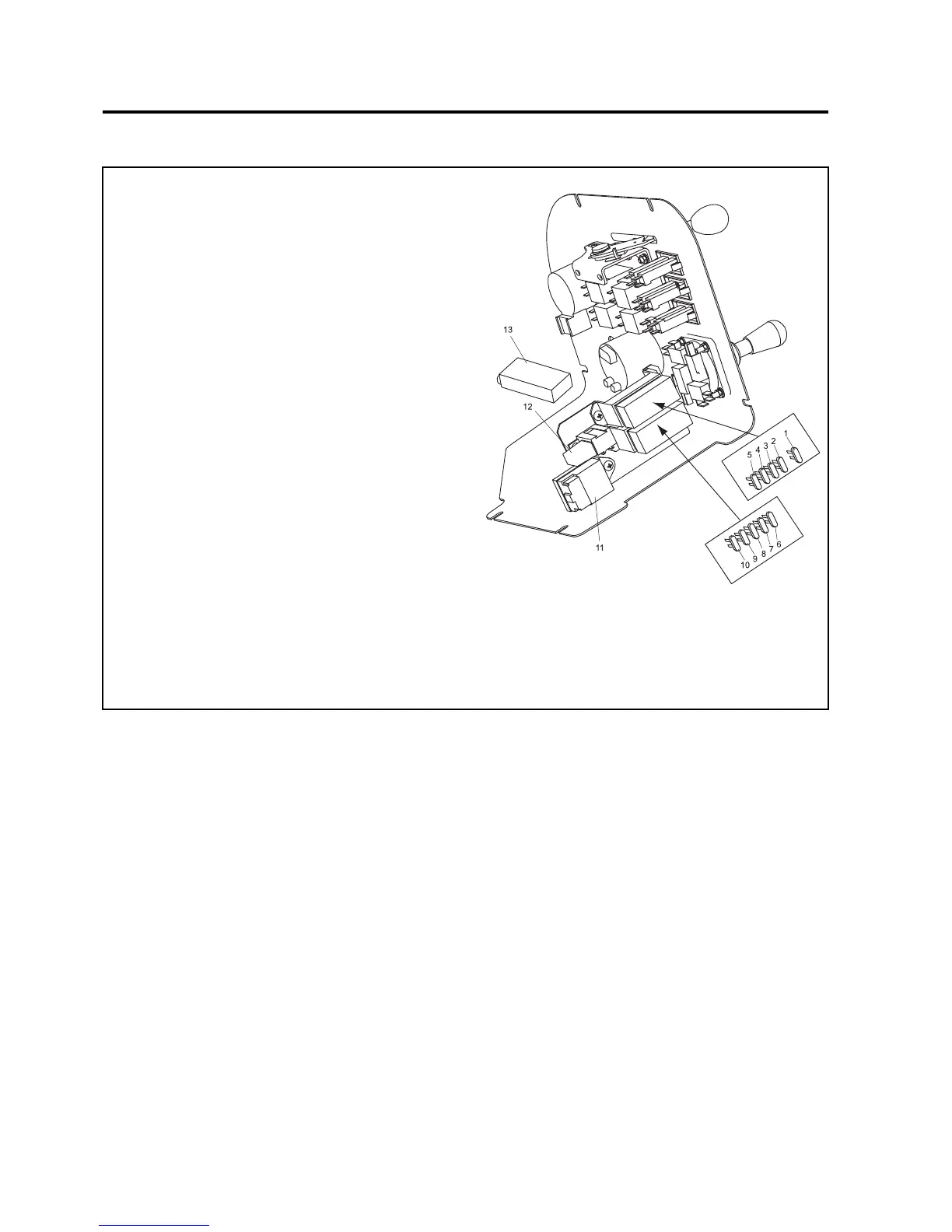

Under Control Panel
1 Fuse - 15 Amp-Start Relay
2 Fuse - 7.5 Amp- Fuel Pump
3 Fuse - 5 Amp - Warning Lamps
4 Fuse - 5 Amp - Warning Lamps
5 Fuse - 10 Amp - Safety Module
6 Fuse - 15 Amp - Accessory Socket 1
7 Fuse - 15 Amp - Accessory Socket 2
8 Fuse - 5 Amp - Warning Lamps
9 Fuse - 5 Amp - Parking Brake
10 Fuse - 2 Amp - Multi-Function Gauge
11 Timer- Glow Plug Lamp
12 Relay- Start
13 Control Module-Safety System Interlocks
