JACOBSEN TR3
SAFETY, OPERATORS & MAINTENANCE MANUAL
12.4 ELECTRICAL CIRCUIT FUSES AND RELAYS
12 SCHEMATICS

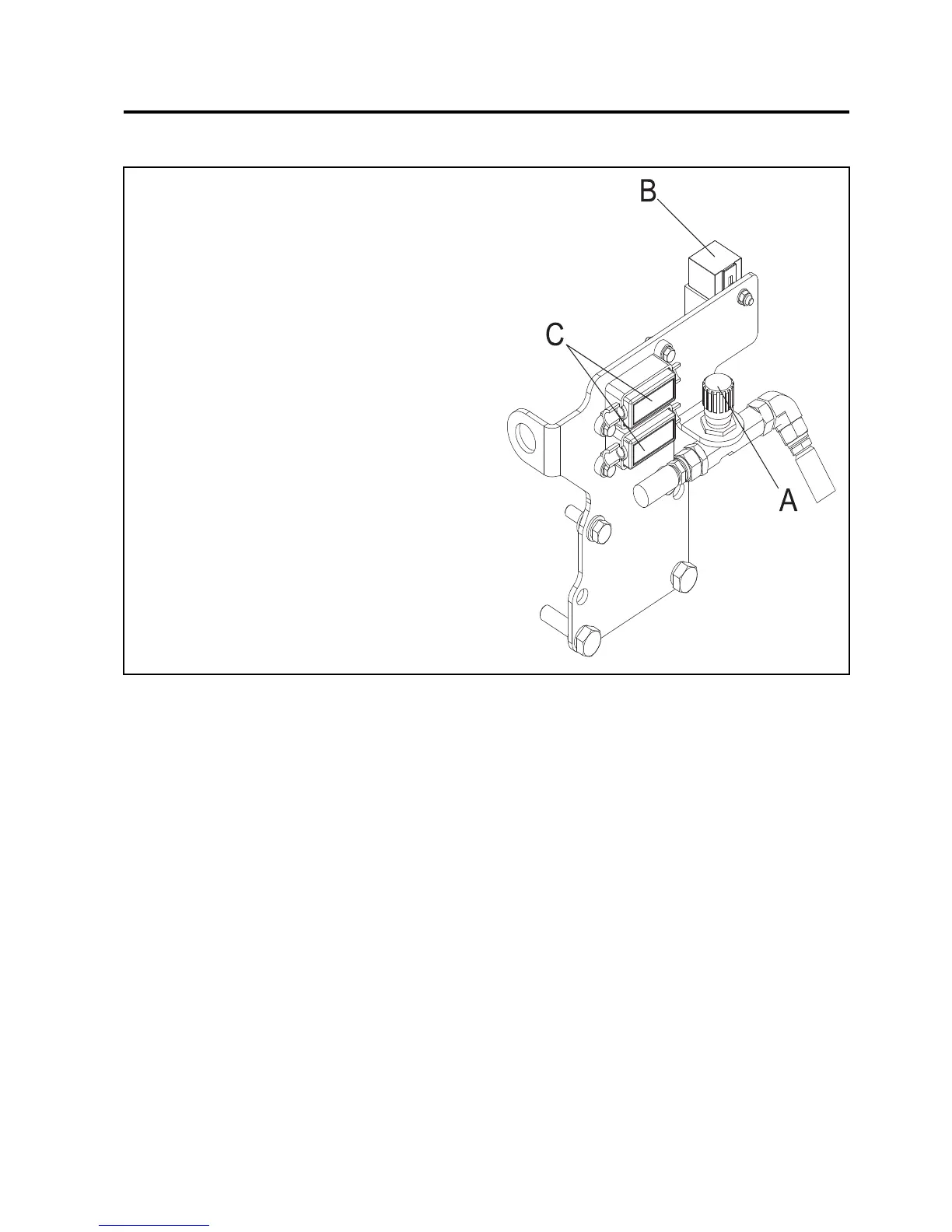

FUSES & RELAYS
In Engine Compartment
B Relay- Glow Plugs
C Strip Fuse - 40 Amp
Top- Cab
Bottom- Glow Plugs
