JACOBSEN TR3
SAFETY, OPERATORS & MAINTENANCE MANUAL

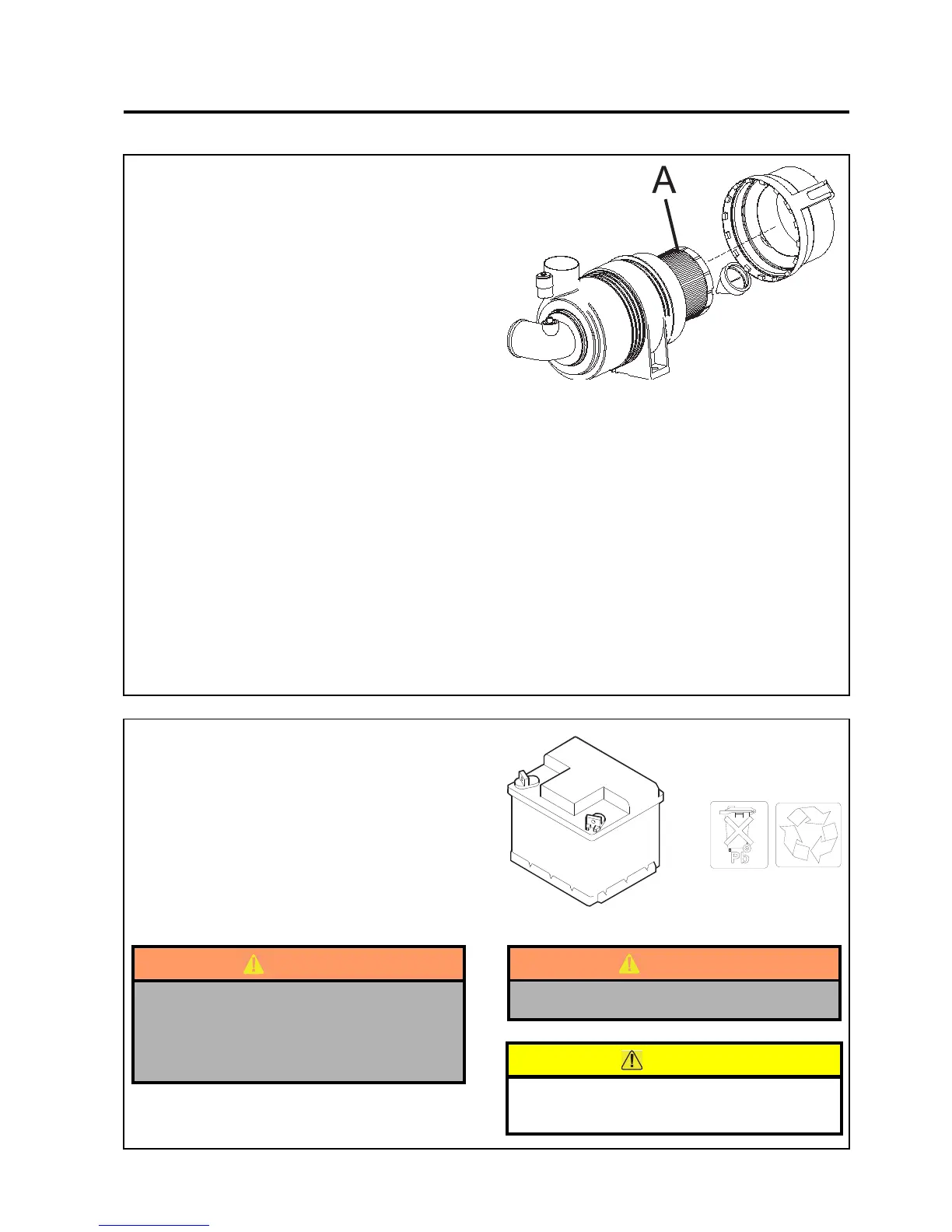

8.10 AIR CLEANER
Cleaning the air filter
NOTE: After 6 cleanings replace the filter element.
(a) Raise engine cover.
(b) Remove end cap of air filter cartridge.
(c) Remove loose dirt from element with
compressed air working from the clean to
dirty side, using compressed air max 6 bar
, with nozzle 5cm from element.
(d) reinstall filter element (press firmly against
rear shoulder)
(e) Replace end cap and fasten with clips
Change air filter
(a) Raise engine cover.
(b) Remove end cap of air filter cartridge.
(c) Remove accumulated dust or dirt.
(d) Remove filter element (A) (pull straight out
firmly)
(e) install new filter element (press firmly
against rear shoulder)
(f) Replace end cap and fasten with clips
NOTE: Extensive damage to engine can result
from an inadequate air supply.
8.11 BATTERY
(a) Keep fluid levels above battery plates.
(b) Keep battery post corrosion free
WARNING
Battery posts, terminals and related
accessories contain lead and lead
compounds.
WASH HANDS AFTER HANDLING
8 MAINTENANCE & LUBRICATION
WARNING
Wear eye protection when servicing battery.
CAUTION
Dispose of used batteries in accordance with
local regulations.
