SET-UP 4
11

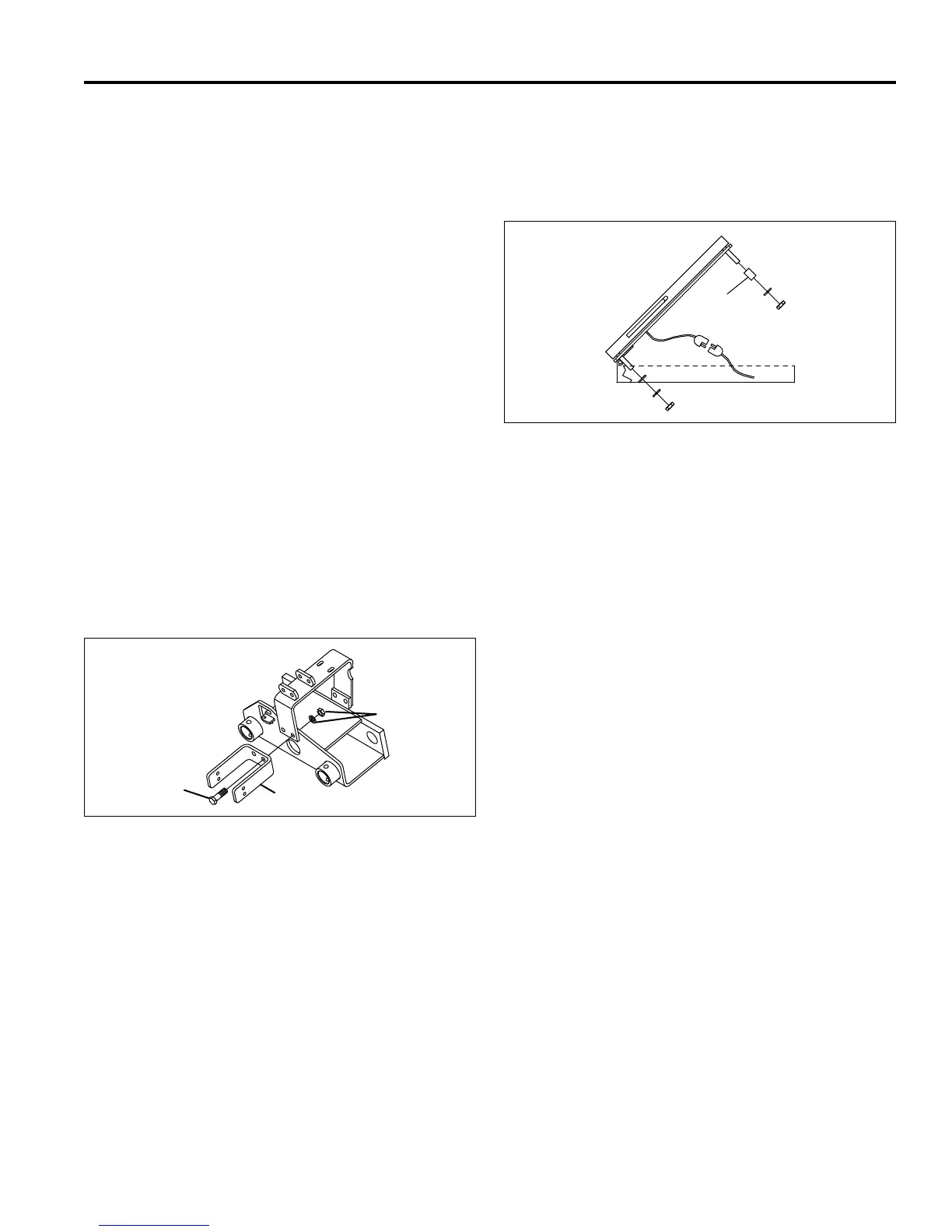

4.6 SEAT ____________________________________________________________________
1. To keep seat clean and prevent damage, do not
remove protective cover from seat during installation
and other set-up procedures.
2. Remove seat from shipping boards and discard
shipping hardware.
3. Assemble the seat to the seat mounting plate.
a. On the two front studs, use 5/16 flat washer, lock-
washers and 5/16-18 nuts.
b. On the two rear studs, assemble 1/2 in. (13 mm)
spacers (E) first, then the lockwashers and 5/16-
18 nuts.
c. Connect the seat wire harness to harness.
4. Apply lithium base grease to the seat runners then
check all seat adjustments to insure they function
properly.
Figure 4C
4.7 FRONT MOWER HOSE BRACKET ____________________________________________
1. Remove hardware (F) from the front lift arm cradle,
then remove hose bracket (G) with its hoses from the
shipping position.
2. Move hose bracket (G) into position as shown, align
the mounting holes then assemble hardware (F).
Figure 4D
