SET-UP 4
13

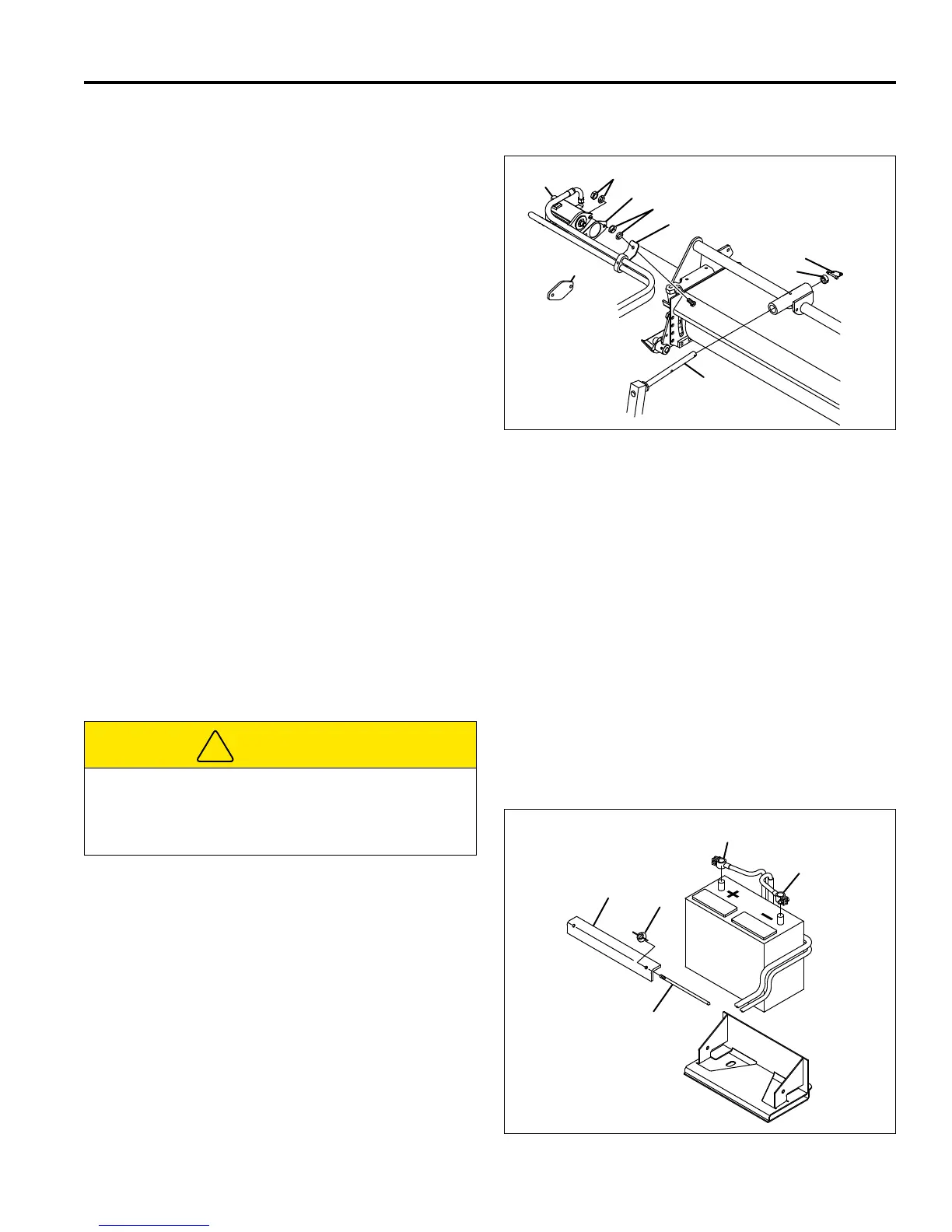

4.9 CENTER (REAR) MOWER ___________________________________________________
1. Remove center mower from its shipping crate and
position behind the rear lift arm (Z). Slide the mower
onto the lift arm and secure with collar (V) and spring
clip pin (W)
2. Remove the cover plate (S) from the drive end of
center mower. Retain hardware (U) and gasket (R).
Store cover plate (S) for future use.
3. Install motor on cutting unit with hardware (U) and
gasket (R). Nut (T) must be facing upwards as
shown.
4. Secure hose bracket (X) to stud of center mower
with 3/8-16 hardware (Y).
Figure 4I
4.10 REEL ADJUSTMENTS ______________________________________________________
The reels have been backed away from the bedknife to
prevent damage during shipment. Each reel must be
adjusted before the unit is ready for delivery.
1. Install any special rollers or reel attachments follow-
ing the instructions provided with them.
2. Adjust the reel to bedknife. [Sections 5.13, 5.14]
3. Adjust the height of cut to customer specifications.
[Section 5.16, 5.18, 5.18]
4.11 BATTERY ________________________________________________________________
1. Before installing the battery, make absolutely certain
the ignition switch is OFF and the key’s have been
removed.
2. Place the battery on the mounting tray with the
terminals towards the rear of the machine.
3. Route the battery cables along the left side and
behind the battery.
4. Connect the RED (Positive) cable (AA) to the
positive (+) battery terminal first.
5. Connect the BLACK (Negative) cable (BB) to the
negative (-) battery terminal.
6. Do not over tighten terminal nuts.
7. Apply a light coat of silicone dielectric grease to
both terminals and cable ends to prevent corrosion.
8. Clamp the battery to battery tray using J-hooks
(CC), hold-downs (DD) and wing nuts (EE).
Figure 4J
T
Y
U
R
S
X
W
V
Z
CAUTION
Always use insulated tools, wear protective glasses or
goggles and protective clothing when working with
batteries. You must read and obey all battery
manufaturer’s instructions.
!
AA
BB
CC
DD
EE
