ADJUSTMENTS 5
17

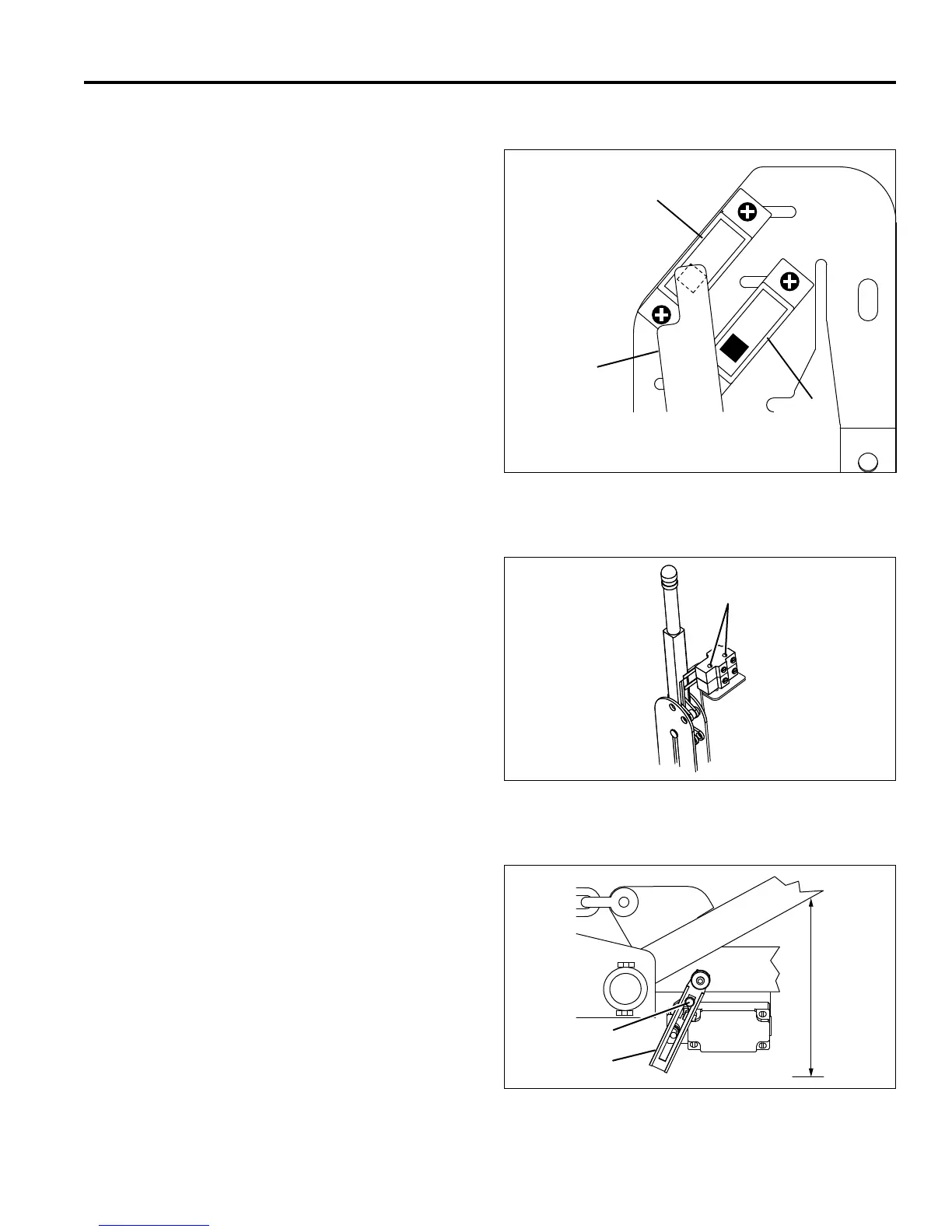

5.4 NEUTRAL AND 3WD SWITCHES _____________________________________________
1. Check traction pedal adjustment.
2. Use a volt/ohm meter to determine when switch
opens or closes.
a. Adjust switch (G) so “finger” of actuating arm (F)
is centered over sensing portion of switch.
Switch contacts should be closed with traction
pedal in neutral and open with minimal pedal
travel in forward or reverse direction.
b. Adjust 3WD switch (H) so contacts are open with
traction pedal in neutral, and contacts close with
minimal pedal travel in forward direction.
Figure 5C
5.5 PARKING BRAKE SWITCHES________________________________________________
Loosen screws (K) and adjust both switches so contacts
just close as the brake lever is moved to the engaged
position then tighten screws.
Figure 5D
5.6 LIFT LIMIT SWITCH ________________________________________________________
The lift limit switch must be adjusted so the reels stop
turning before the cutting plane between the reel and
ground reach 15-3/4 in. (400 mm). To adjust, loosen
screw (L), and adjust arm (M).
Figure 5E
G
H
F
