3 CONTROLS
8
3.3 OPENING THE HOOD ______________________________________________________
The “Right” and “Left”, “Front” and “Rear” of the
machine are referenced from the operator’s right and left
when seated in the ’s seat in the normal operating
position.
1. To Open the Hood, unhook latch (R) on right-front
foot rest, then lift entire left-side hood (S) upwards
to clear the steering console cover.
2. Stand in front of the machine and push the right end
of the hood (S) downwards as shown.
3. Pivot the hood to its full open position.
4. Lift hood (T) straight upwards and remove from the .
5. To Close the Hood, position hood (T) directly over
the hydro, push down and towards the radiator.
6. From the front of the machine, pivot hood (S)
upwards and to the left making sure the hood clears
the operator’s console then push downwards and
into the front retainer.

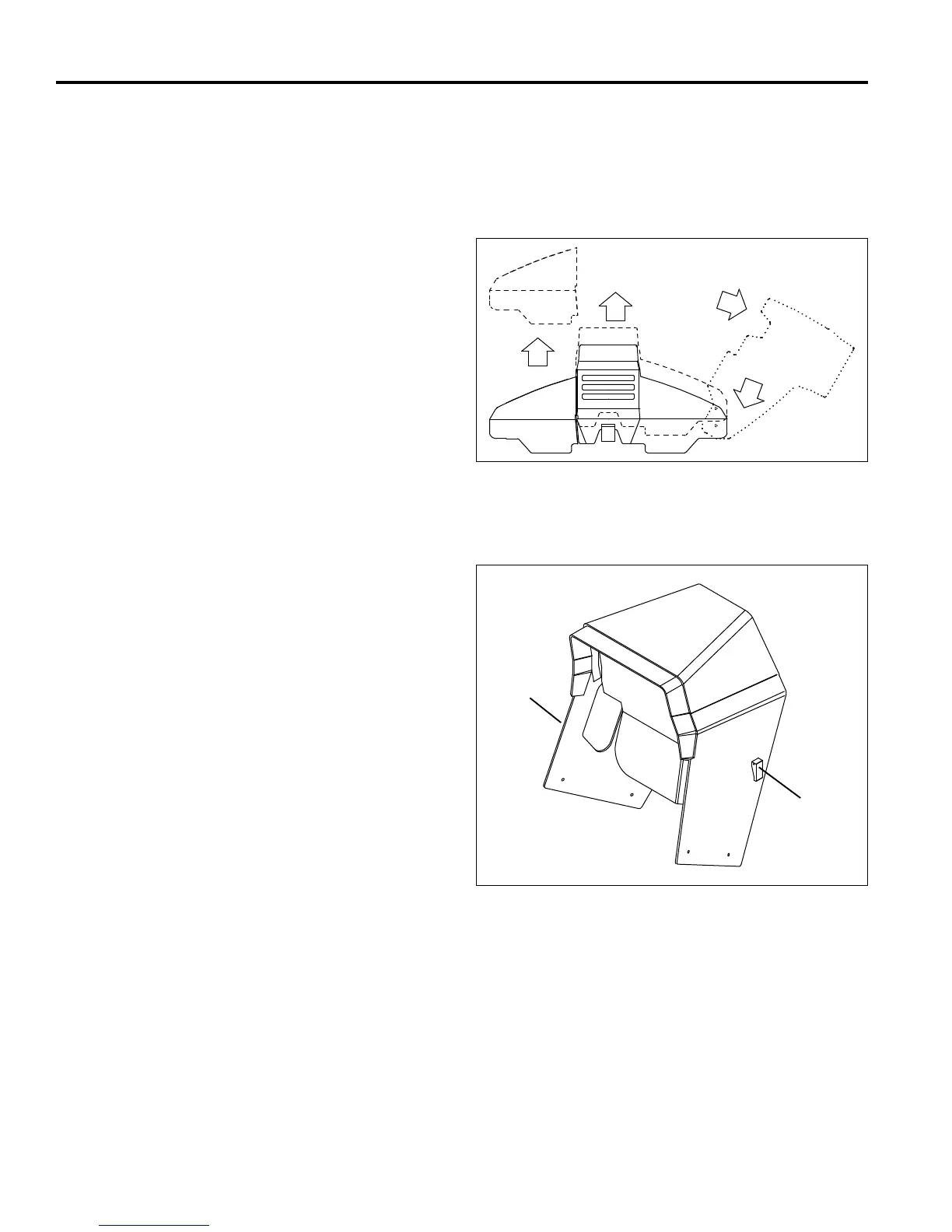

Figure 3A
3.4 STEERING CONSOLE COVER _______________________________________________
1. First open the front hood. See Section 3.3.
2. To remove the console cover, lift latch (U) on both
sides and pull outwards to disengage internal lock.
3. Lift the console cover (Y) straight up and off the .
Figure 3B
T
S
U
Y
