7 MAINTENANCE & LUBRICATION CHARTS

7.1 GENERAL________________________________________________________________

1. Always clean the grease fitting before and after

lubricating.

2. Lubricate with grease that meets or exceeds NLGI

Grade 2 LB specifications. Apply grease with a

manual grease gun and fill slowly until grease begins

to seep out. Do not use compressed air guns.

3. Periodically apply a small amount of lithium based

grease to the seat runners.

4. For smooth operation of all levers, pivot points, and

other friction points that are not shown on the

lubrication chart apply several drops of SAE 30 oil

every 40 hours or as required.

5. Grease fittings (A - F) every 50 hours and fittings (G -

K) every 100 hours.

7.2 LUBRICATION CHART _____________________________________________________

WARNING

Before you clean, adjust, or repair this equipment,

disengage all drives, lower implements to the ground,

engage parking brake, stop engine and remove key

from ignition switch to prevent injuries

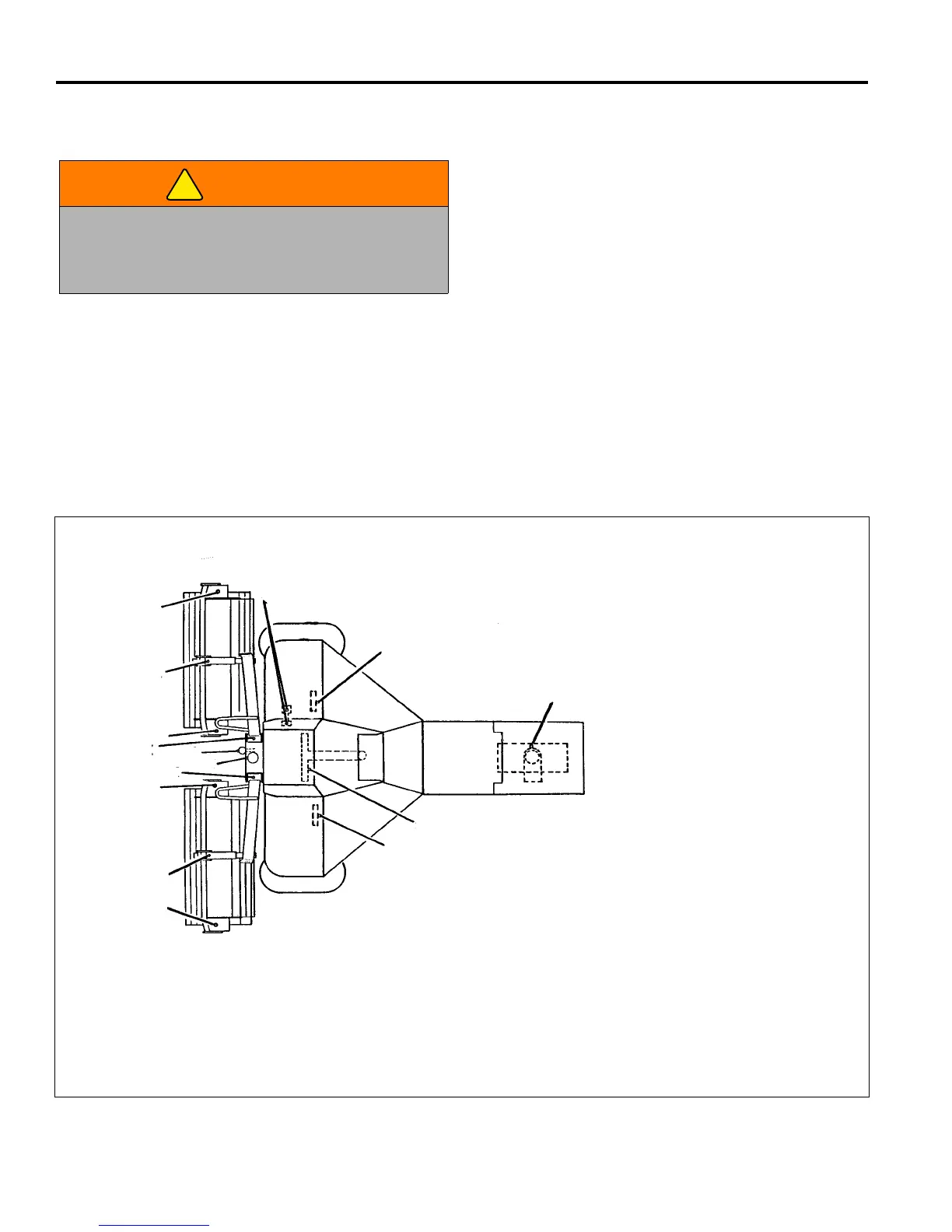

A. Mower Pivot (3 Fittings)

B. Front Lift Arms (2 Fittings)

C. Crank Hub

D. Hydraulic Cylinder

E. Center Lift Arm

F. Control Pedal Pivot (2 Fittings)

G. Steering Yoke

H. Drive Shaft Bearings (2 Fittings)

J. Reel Bearings (6 Fittings)

K. Rollers (As Required)
