Jacuzzi Whirlpool Bath EL21000B 10/06
SPECIFICATIONS (Oval and Round) RH = RIGHT HAND
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 20 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump and RapidHeat™: 240 VAC, 20 AMP, 60 Hz. dedicated GFCI protected separate circuit.
DUETTA™ 6636
RH
DUETTA™ 6042
RH
66” (1676 mm) L
36” ( 914 mm) W
26” ( 660 mm) H
60” (1524 mm) L
42” (1067 mm) W
26” ( 660 mm) H
Not Available
160 lb
(72.7 kg)
110 lb
(50 kg)
Not Available
999 lb
(454 kg)/
57.1 lb/ft
2
(278 kg/m
2
)
1027 lb
(467 kg)/
62.3 lb/ft
2
(303 kg/m
2
)
18.4” (467 mm) A
11” (279 mm) B
18.4” (467 mm) A
11” (279 mm) B
Template
Provided
P/N
DA09000
Template
Provided
P/N
DA08000
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADINGDIMENSIONS DRAIN/OVERFLOW
SKIRT &
MOUNTINGCUTOUT
HEATER
Factory Installed
(BN60000 HEATER 230V)
Factory Installed
(BN60000 HEATER 230V)
DRAIN/OVERFLOW
A
B
OVAL AND ROUND BATHS
VENICIA™
RH
DUETTA™ 6642
RH
DUETTA™ 7242
RH
72” (1829 mm) L
42” (1067 mm) W
26” ( 660 mm) H
66” (1676 mm) L
42” (1067 mm) W
26” ( 660 mm) H
72” (1829 mm) L
42” (1067 mm) W
26” ( 660 mm) H
Not Available
Not Available
90 U.S. gal
(341 liters)
179 lb
(81.4 kg)
117 lb
(53 kg)
130 lb
(59 kg)
Not Available
1106 lb
(503 kg)/
57.5 lb/ft
2
(280 kg/m
2
)
1277 lb
(580.5 kg)/
60.8 lb/ft
2
(296 kg/m
2
)
1230 lb
(559 kg)/
58.83 lb/ft
2
(287 kg/m
2
)
20” (508 mm) A
14” (356 mm) B
18.4” (467 mm) A
11” (279 mm) B
18.4” (467 mm) A
11” (279 mm) B
Template
Provided
P/N
DA07000
Template
Provided
P/N
DA06000
Template
Provided
P/N
P187000
Factory Installed
(BN60000 HEATER 230V)
Factory Installed
(BN60000 HEATER 230V)
Factory Installed
(BN60000 HEATER 230V)

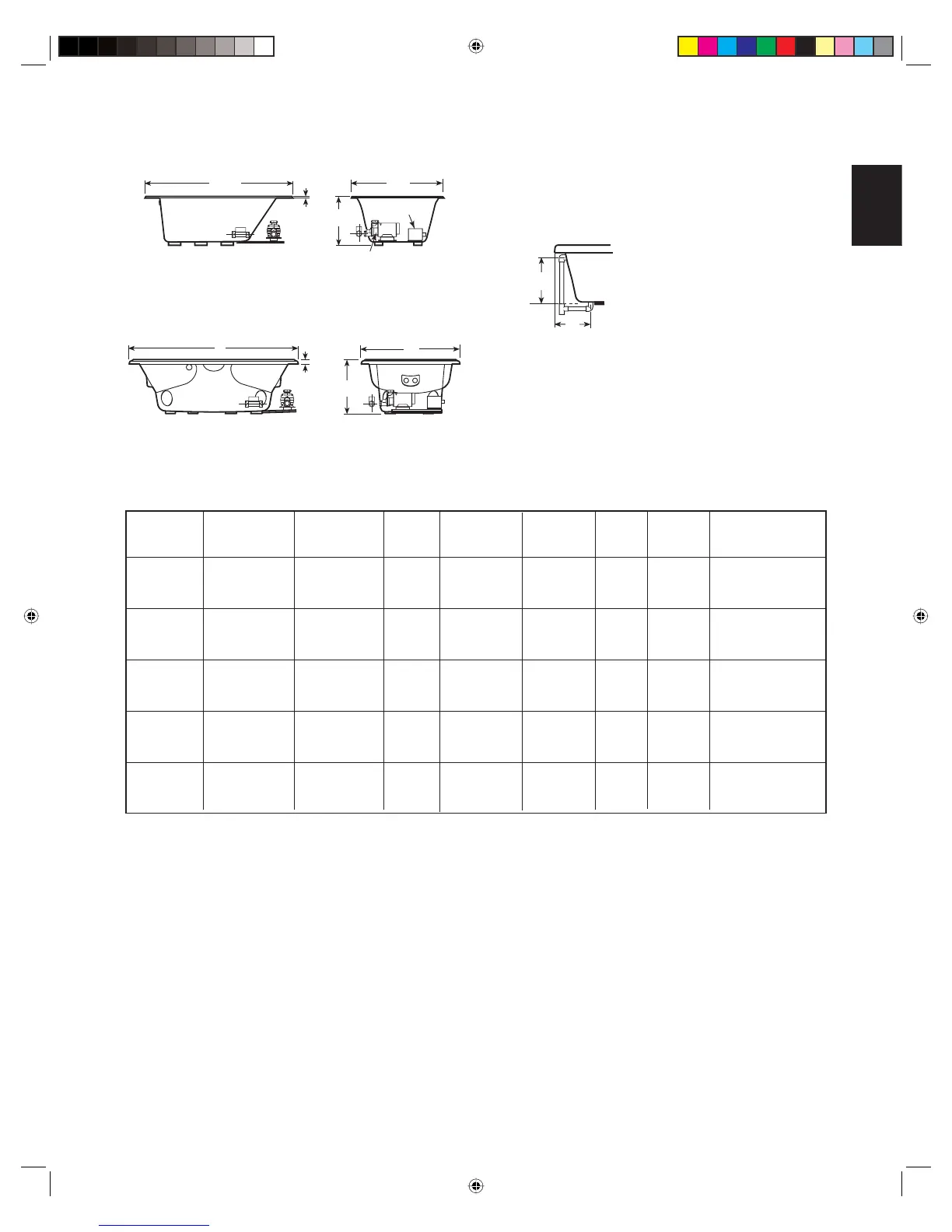

SPECIFICATIONS
END VIEW
H
W
SIDE VIEW
L
1/2"
(13 mm)
(Motor)
(Inlet Heater)
(Blower)
DUETTA
END VIEW
H
W
SIDE VIEW
2"
(Motor)
L
(51 mm)
VENICIA™
(Inlet Heater)
(Blower)
Min - 75 U.S. gal
(284 liters)
Max - 80 U.S. gal
(303 liters)
Min - 77 U.S. gal
(291 liters)
Max - 83 U.S. gal
(314 liters)
Min - 90 U.S. gal
(341 liters)
Max - 95 U.S. gal
(360 liters)
Min - 98 U.S. gal
(371 liters)
Max - 106 U.S. gal
(401 liters)
