.. SETTING FANSPEED

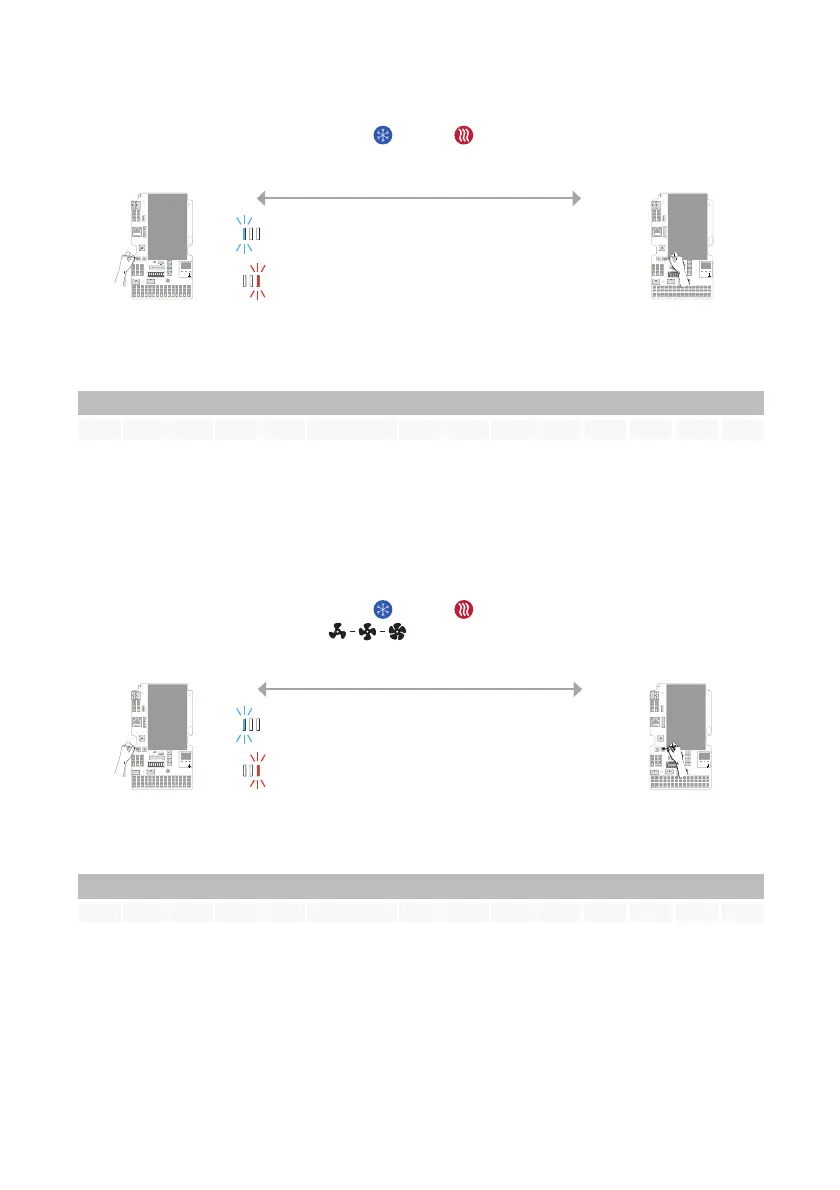

... Without control panel
. Select the mode that you want to adjust : Cooling / Heating
. Short press [-] or [+] to adjust the preset speed .
... With control pannel
. Select the mode that you want to adjust : Cooling / Heating
. Select the speed that you want to adjust :
. Short press [-] or [+] to adjust the preset speed .
SPEED %
SPEED %
. After seconds, the new settings are automatically saved and the device returns to the selected mode.
. After seconds, the new settings are automatically saved and the device returns to the selected mode.
The blue LED flashes quickly when the minimum speed is reached .
The red LED flashes quickly when the maximum speed is reached.
The blue LED flashes quickly when the minimum speed is reached .
The red LED flashes quickly when the maximum speed is reached.
POWER 45W
INPUT: 110-240VAC
OUTPUT: 24V
NL
15120045
GND GND GND GNDNTC1 V.H. V.C.0-10V0-10V0-10V +24V
GND 0-10V 24V
GND 24V
GND 24V
+24V RC IN/OUT GND
Tsens 1
CONTROL PANEL
I2CRS485 A/B
CO2PC / RF
THERMOSTATE 1
DIPSWITCH
Tsens 2
Tsens 3
Tsens 4
JAGA
12345678
ON
POWER 45W
INPUT: 110-240VAC
OUTPUT: 24V
NL
15120045
GND GND GND GNDNTC1 V.H. V.C.0-10V0-10V0-10V +24V
GND 0-10V 24V
GND 24V
GND 24V
+24V RC IN/OUT GND
Tsens 1
I2CRS485 A/B
CO2PC / RF
Tsens 2
Tsens 3
Tsens 4
1234
ON
POWER 45W
INPUT: 110-240VAC
OUTPUT: 24V
NL
15120045
GND GND GND GNDNTC1 V.H. V.C.0-10V0-10V0-10V +24V
GND 0-10V 24V
GND 24V
GND 24V
+24V RC IN/OUT GND
Tsens 1
CONTROL PANEL
I2CRS485 A/B
CO2PC / RF
THERMOSTATE 1
DIPSWITCH
Tsens 2
Tsens 3
Tsens 4
JAGA
12345678
ON
POWER 45W
INPUT: 110-240VAC
OUTPUT: 24V
NL
15120045
GND GND GND GNDNTC1 V.H. V.C.0-10V0-10V0-10V +24V
GND 0-10V 24V
GND 24V
GND 24V
+24V RC IN/OUT GND
Tsens 1
I2CRS485 A/B
CO2PC / RF
Tsens 2
Tsens 3
Tsens 4
1234
ON
