ADwin Installation, manual version 2.1, December 2005 11
ADwin ISA link interface
ADwin
Base address /
link address
Choose basic
configuration

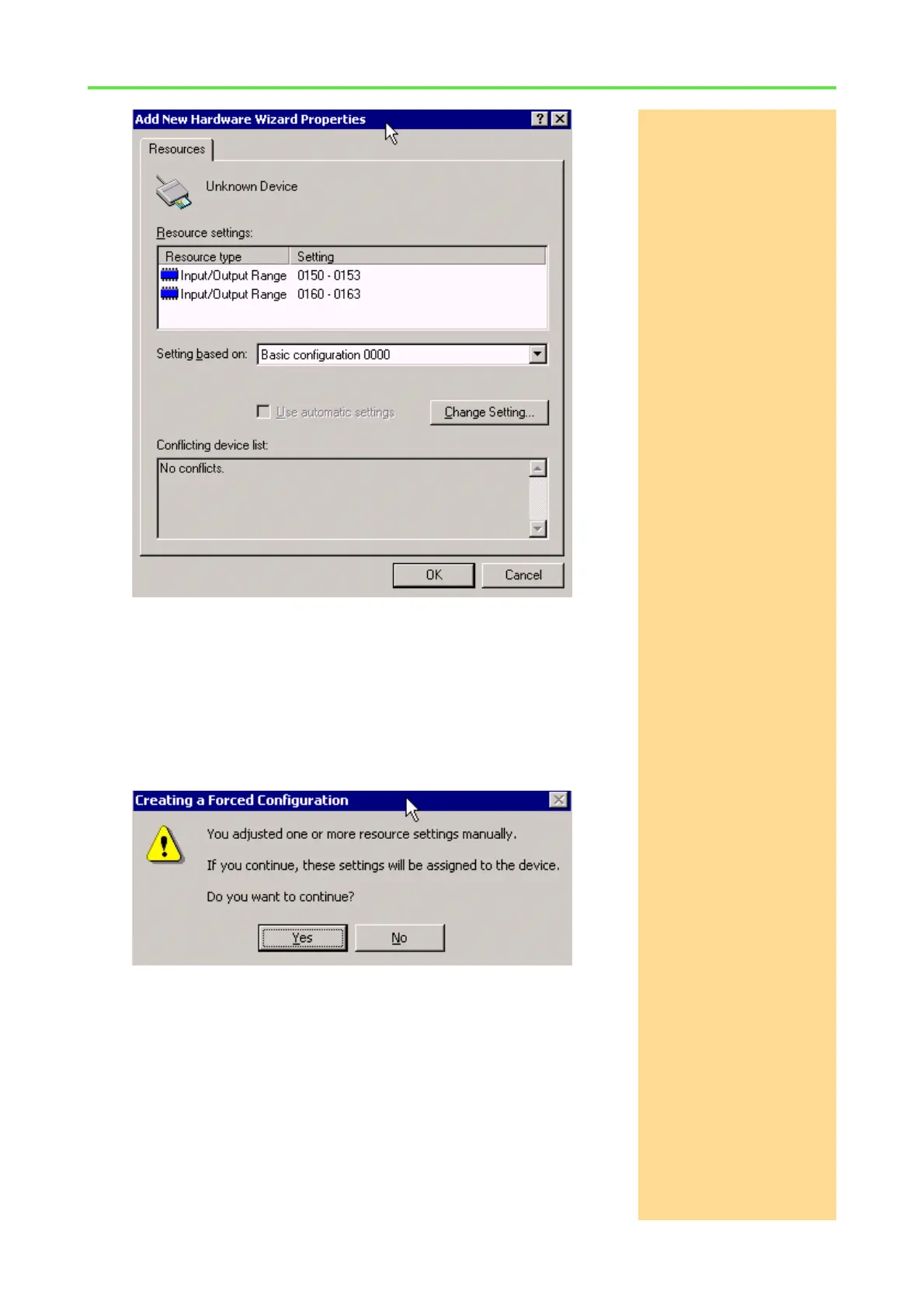

At "Settings based on" choose one of the given basic configurations, so
that in the list "Conflicting Devices" no conflicting devices are displayed.
In doing so, you set the base address of the link adapter.
Note the link addressIf you don’t use the standard base address 0150 (= 150h) as in the example
above, please note this different base address (=link address). You have to set
this address later with the DIP switches on the ADwin board, ADwin-light board
or ADlink-PC-ISA.
Choose a separate link address for each ADwin system.
Yes
