Jands Event 4 Technical Manual

Appendix B - Connector Pinouts B - 1
Revision 1 - 07 July
1999 Event 4 TECHNICAL MANUAL
Appendix B: Connector Pinouts

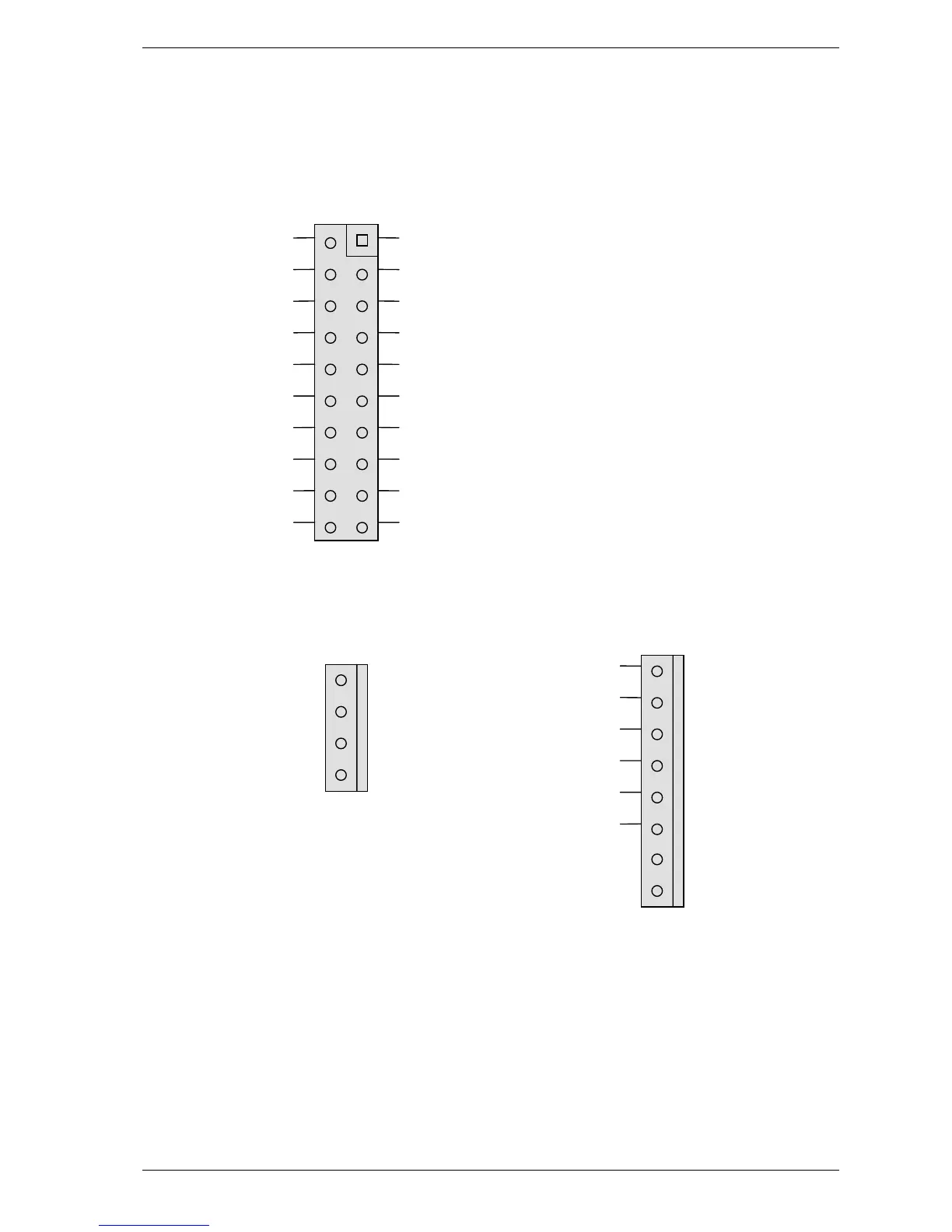

Front Panel Card Bus Connector (View from component side)
Palette, Assign, Master Cards
FDD Power Connector Main Power Connector (CONN8)
D0
GND
D3
D4
GND
D7
R/W
+5
MUX
+12
+5V
GND
GND
NC
GND
D1
D2
GND
D5
D6
+5
ALE
DS
-12
+5V
GND
-12V
GND
+5V
+12V
GND
DIM
