Jands Vista L5 User Manual

Appendix10–thetouchpadandthepentablet RemovingandinstallingtheDuoSwitch


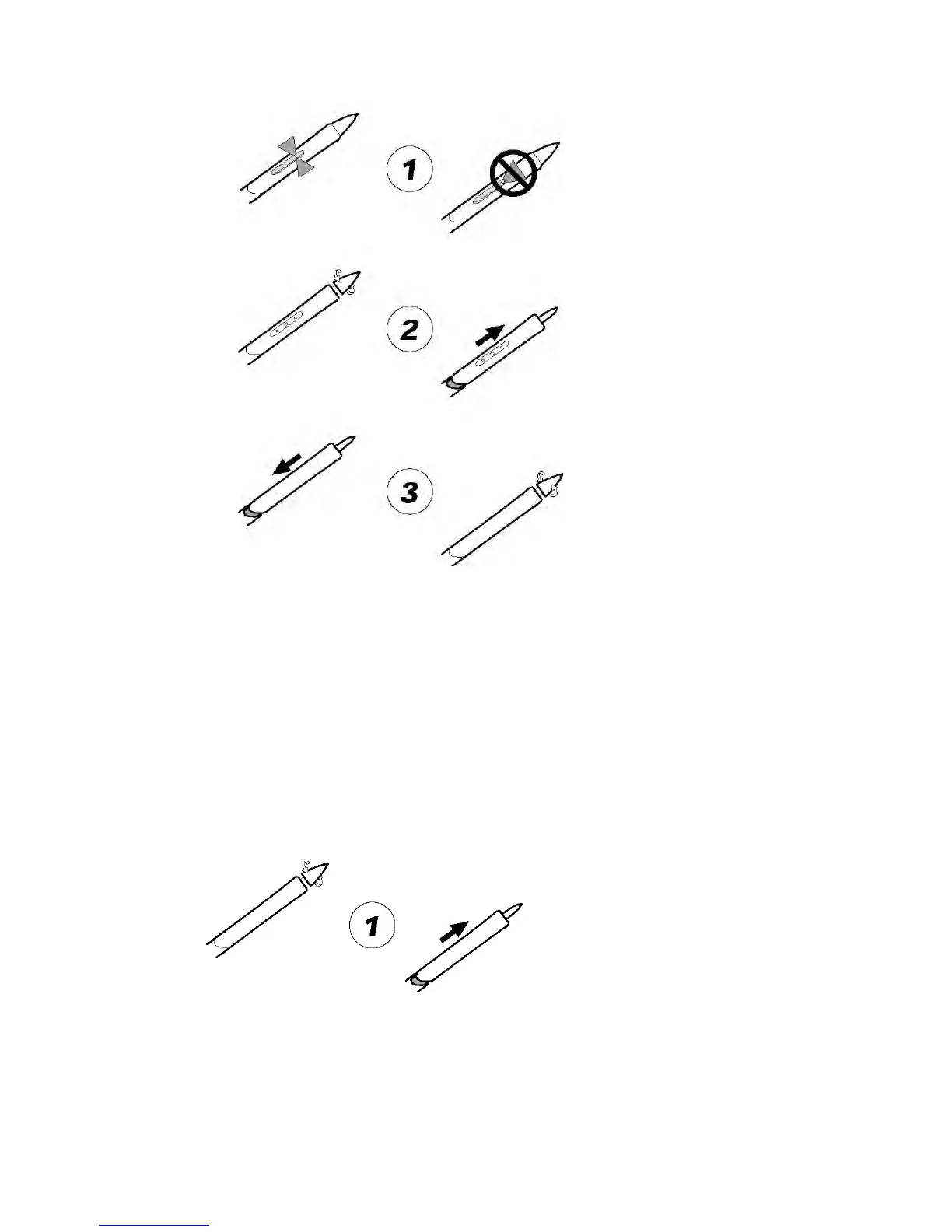

To Install the DuoSwitch:
1. Remove the pen tip cone by turning it counterclockwise. Then pull the grip
2. Install the original grip (the one with the DuoSwitch access slot) by aligning
the pen case rails with the grooves inside the grip and pushing the grip over
the pen tip. When properly positioned, the DuoSwitch access hole will reveal
the trimmer capacitor. Then install the pen tip cone by turning it clockwise
onto the pen.
3. Align the DuoSwitch into place, making sure to match the switch position to
the grip molding. Then gently press in on the DuoSwitch until it snaps into
place.
forward over the pen tip.
VistaUserGuide,Version2 23‐79
