6. Slide dip switches 1 and 2 up, so they are in the
ON position, and slide switches 3 and 4 down, so
they are in the OFF position. See Figure 2.
7. Connect the other end of the cable to the
controller. Match the colors of the wires with the
appropriate connector positions, as described in
Step 4.
8. Restore power to the ePump and verify the
operation of the controller.
9. Refer to the ePump Controller Owner’s Manual,
H0311200, to operate the pump.
To install an AquaLink
®
RS controller (Rev O or
later) or an AquaLink
®
PDA (Rev 4.0 or later):
1. Remove power from the ePump by disconnecting
the high voltage lines or by opening any breaker to
which the ePump power is connected.
WARNING
ELECTRICAL SHOCK HAZARD
Turn off all switches and the main breaker in
the ePump electrical circuit before starting the
procedure. Failure to comply may cause a shock
hazard, resulting in severe personal injury or death.

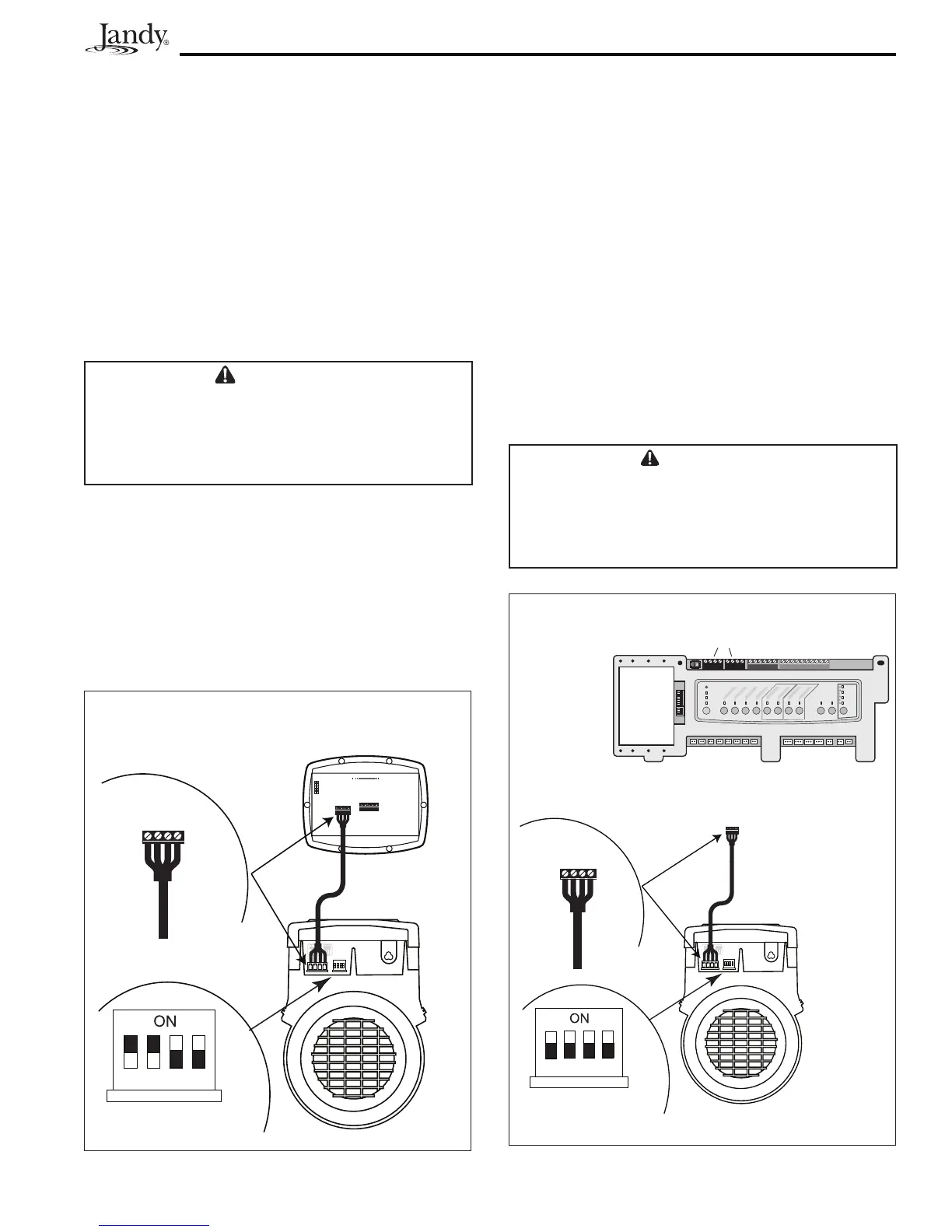

Figure 2. Wiring ePump Controller (JEP-R) to ePump
Jandy ePump
(Rear View)
4321
RED BLACK YELLOW GREEN
RS485
Cable
BLACK YELLOW RED GREEN
4-Position DIP Switch
2
3
4 1
Connect to
AquaLink
®
RS
RS-485 Connector
(or Multiplexer
Interface Board)
S1
S2
RESET
SERVICE
TIME OUT
FILTER PUMP
A
UX
1
AUX
2
AUX 3
A
UX
4
AUX
5
AUX 6
AUX 7
RS6 & RS8 ONLY
RS8 ONLY
HEATER
SOLAR
POOL MODE
SPA MODE
SPA DRAIN
SPA FILL
AUTO
654321 10987654321 4321
4321
AquaLink
®
RS
RS-485 Connectors
Figure 3. Wiring AquaLink
®
RS Controller or
AquaLink
®
PDA to ePump
3.2.4 Installing the Controller
The ePump can be operated by one of three
(3) controllers: the ePump controller (JEP-R), the
AquaLink® RS controller (Rev O or later), or the
AquaLink® PDA (Rev 4.0 or later).
The ePump communicates with the controllers via a
four-wire RS-485 interface.
To install the ePump controller:
NOTE The ePump controller part no. is JEP-R.
1. Remove power from the ePump by disconnecting
the high voltage lines or by opening any breaker to
which the ePump power is connected.
WARNING
ELECTRICAL SHOCK HAZARD
Turn off all switches and the main breaker in
the ePump electrical circuit before starting the
procedure. Failure to comply may cause a shock
hazard, resulting in severe personal injury or death.
2. Remove the cover of the ePump junction box and
feed the RS-485 cable into the fitting.
3. Unplug the RS-485 connector from the ePump.
4. Attach the four (4) wires in the RS-485 cable to
the RS-485 connector. Match the wire colors with
the positions on the connector: 1- red, 2- black,
3- yellow, and 4- green. See Figure 2.
5. Insert the RS-485 connector back into the ePump.
Jandy ePump
(Rear View)
RS485
4321
RED BLACK YELLOW GREEN
REMOTE CONTROL
54321
INPUT 2 INPUT 3 INPUT 4 COMMON
INPUT 1
ePump Controller (JEP-R)
(Rear View)
4-Position DIP Switch
2
3
4 1
RS485
Cable
BLACK YELLOW RED GREEN
