Jandy ePump Series - Pump Performance Curves; ePump Series Flow Rate vs. Head

Page 26
ePump
™
Series Pumps, Installation and Operation Manual
7.2 Performance Curves
0
10
20
30
40
50
60
70
80
90
100
110
120
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250
0
5
10
15
20
25
30
35
40
45
50

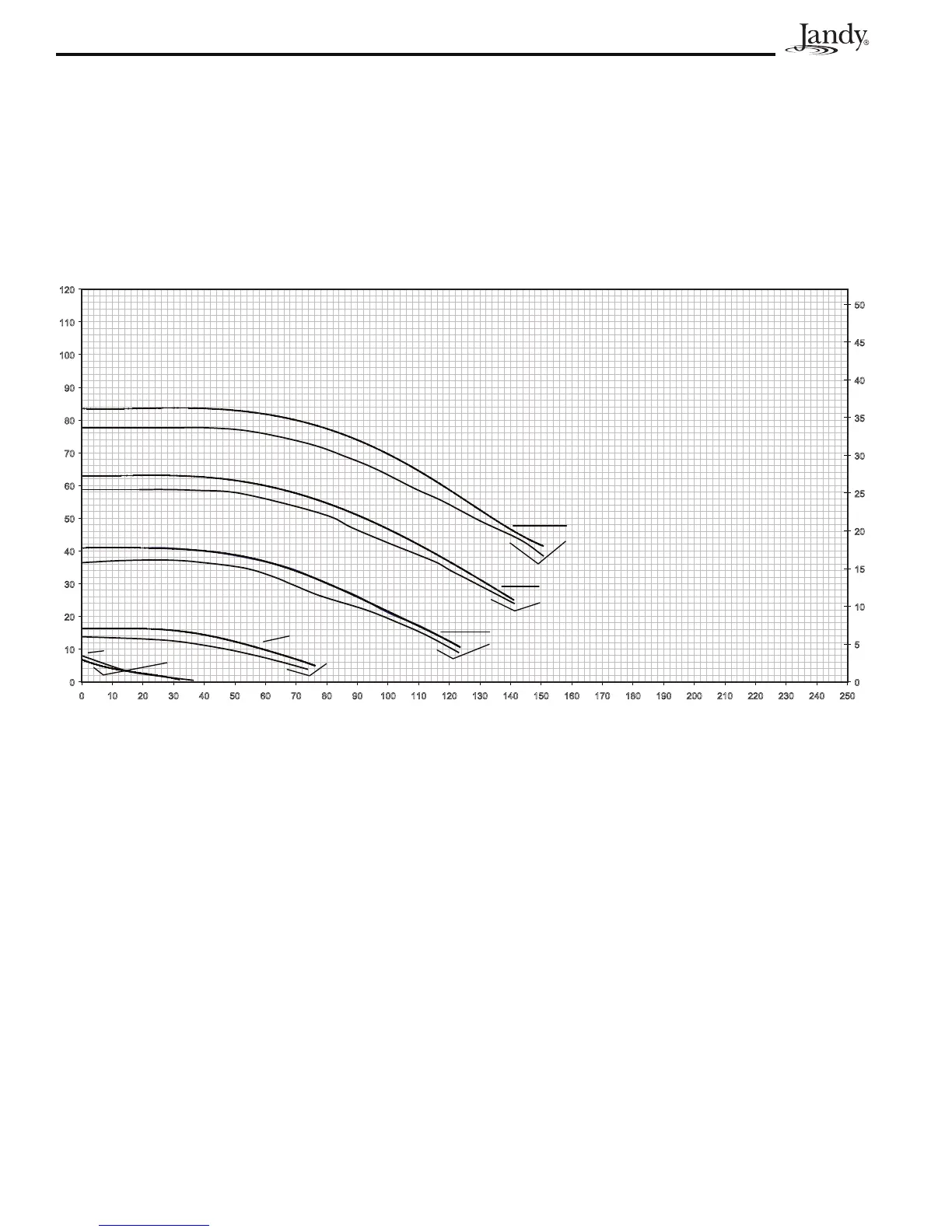

Jandy ePump Series High Head Pumps
Full-Rate (JEP)
Flow Rate, Gallons Per Minute (GPM)
Total Dynamic Head
(Feet of Water)
Pounds Per Square Inch
(PSI)
ePump, JEP-2.0 HP, 3450 RPM
ePump, JEP-2.0 HP, 3000 RPM
ePump, JEP-1.5 HP, 3450 RPM
ePump, JEP-1.5 HP, 3000 RPM
ePump, JEP-1.5 HP, 2400 RPM
ePump, JEP-1.5 HP,
1500 RPM
ePump, JEP-2.0 HP,
1500 RPM
ePump, JEP-2.0 HP,
600 RPM
ePump, JEP-1.5 HP,
600 RPM
ePump, JEP-2.0 HP, 2400 RPM
