Page 7
ePump
™
Series Pumps, Installation and Operation Manual
At Least
3 Feet
Suction Outlet
(Main Drain)
Suction Outlet
(Main Drain)
No V
alves between
T
ee and Main Drains
Listed/Certified to latest
published edition of
ANSI/ASME A1
12.19.8
Anti-entrapment
Cover/Grate or Suction
Fitting, Screw-fastened
to Main Drain Sump
Listed/Certified to latest
published edition of
ANSI/ASME A1
12.19.8
Anti-entrapment
Cover/Grate or Suction
Fitting, Screw-fastened
to Main Drain Sump
V
alves OK between
Pump and T
ee
Pump

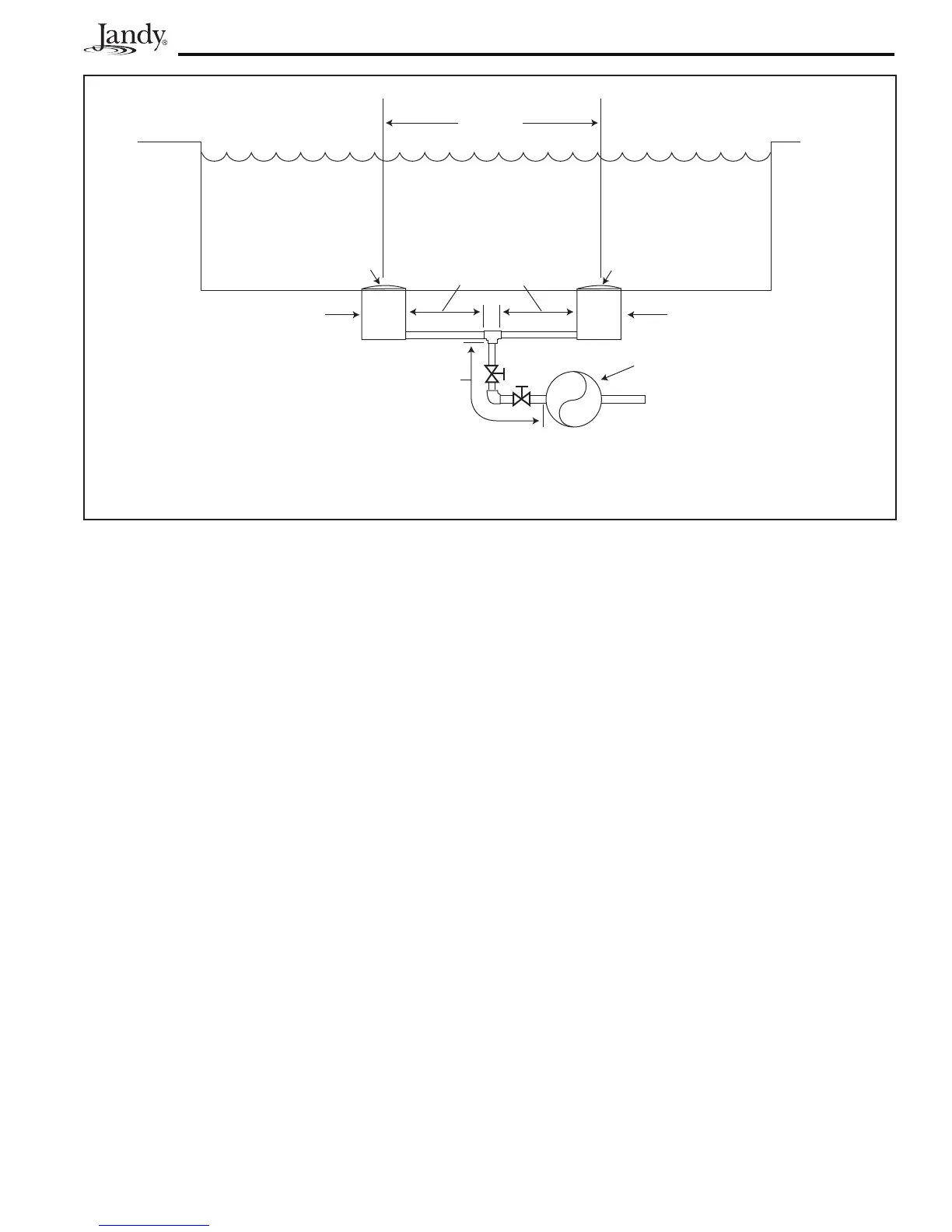

Figure 1.
Number of Suction Outlets Per Pump
6
8
Table of Contents
Table of Contents
3
Section 1. Important Safety Instructions
4
Safety Instructions
4
Pool Pump Suction Entrapment Prevention Guidelines
6
Section 2. General Description
8
Description
8
Section 3. Installation Information
8
Plumbing
8
Preparation Information
8
Pump Location
8
Pipe Sizing
9
Electrical Installation
10
Voltage Checks
10
Bonding and Grounding
10
Electrical Wiring
10
Installing the Controller
11
Epump Dip Switch Settings
12
Pressure Testing
12
Replace Blue Pressure Test O-Ring if Necessary
13
Conduct Pressure Test
14
Section 4. Operation
14
Start-Up
14
Section 5. Service and Maintenance
15
Routine Maintenance
15
Winterizing the Pump
15
Section 6. Troubleshooting and Repair
16
Troubleshooting
16
Service Technician Maintenance
18
Blocked Impeller
18
Impeller Removal and Replacement
18
Mechanical Seal Replacement
21
Variable Speed Drive Electronics Replacement
22
Motor Replacement
23
Section 7. Product Specifi Cations and Technical Data
24
Replacement Parts List and Exploded View
24
Performance Curves
26
Physical and Operational Specifi Cations
27
Specifi Cations
27
Dimensions
27
Replacement Motor Guide
27
Limited Warranty
28
