Jandy HHPlus Series User Manual

Page 17 Jandy
®
Pumps
SECTION 12.

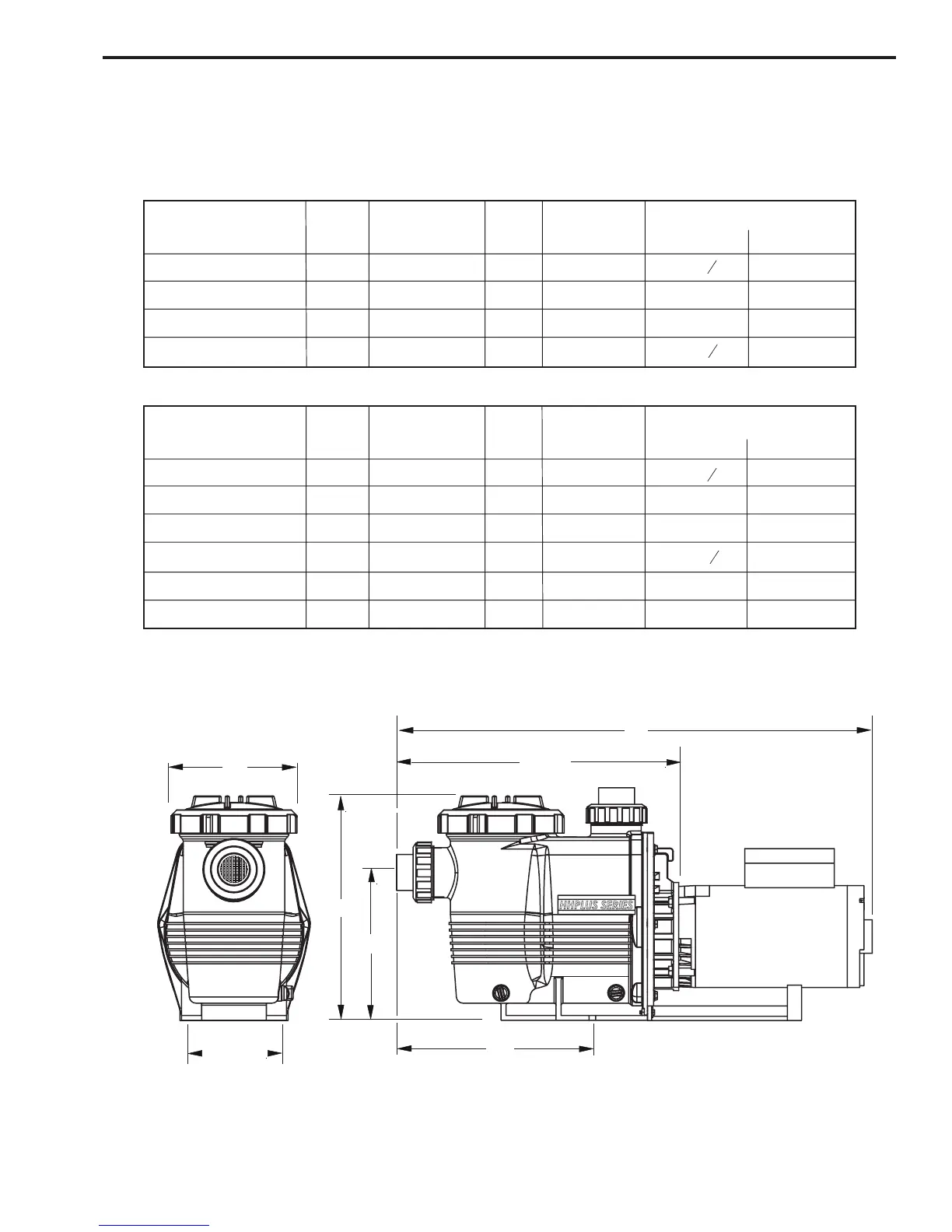

Pump Dimensions
12.1 Jandy
®
PHP & PHPU Pump Dimensions
MODEL HP VOLTAGE PIPE CARTON OVERALL LENGTH (A)
NO. SIZE WEIGHT Franklin Century
PHP.75 .75 115/230 2" 44lbs. 26 " 26½"
PHP1.0 1.0 115/230 2" 49lbs. 26½" 27"
PHP1.5 1.5 115/230 2" 56lbs. 27¼" 28¼"
PHP2.0 2.0 230 2" 63lbs. 28 " 27¾"
5
8
1
8
8"
17¼"
A
13½"
8¾"
12"
MODEL HP VOLTAGE PIPE CARTON OVERALL LENGTH (A)
NO. SIZE WEIGHT Franklin Century
PHPU1.0 .75 115/230 2" 44lbs. 26 " 26½"
PHPU1.5 1.0 115/230 2" 49lbs. 26½" 27"
PHPU2.0 1.5 115/230 2" 57lbs. 27¼" 28¼"
PHPU2.5 2.0 230 2" 63lbs. 28 " 27¾"
PHPU2.0-2 1.5 115/230 2" 56lbs. 28½" 27¾"
PHPU2.5-2 2.0 230 2" 63lbs. 29½" 28¼"
1
8
5
8
Bolt Holes,
Center to
Center
Front Edge of Union to
Center of Bolt Holes
5¾"
