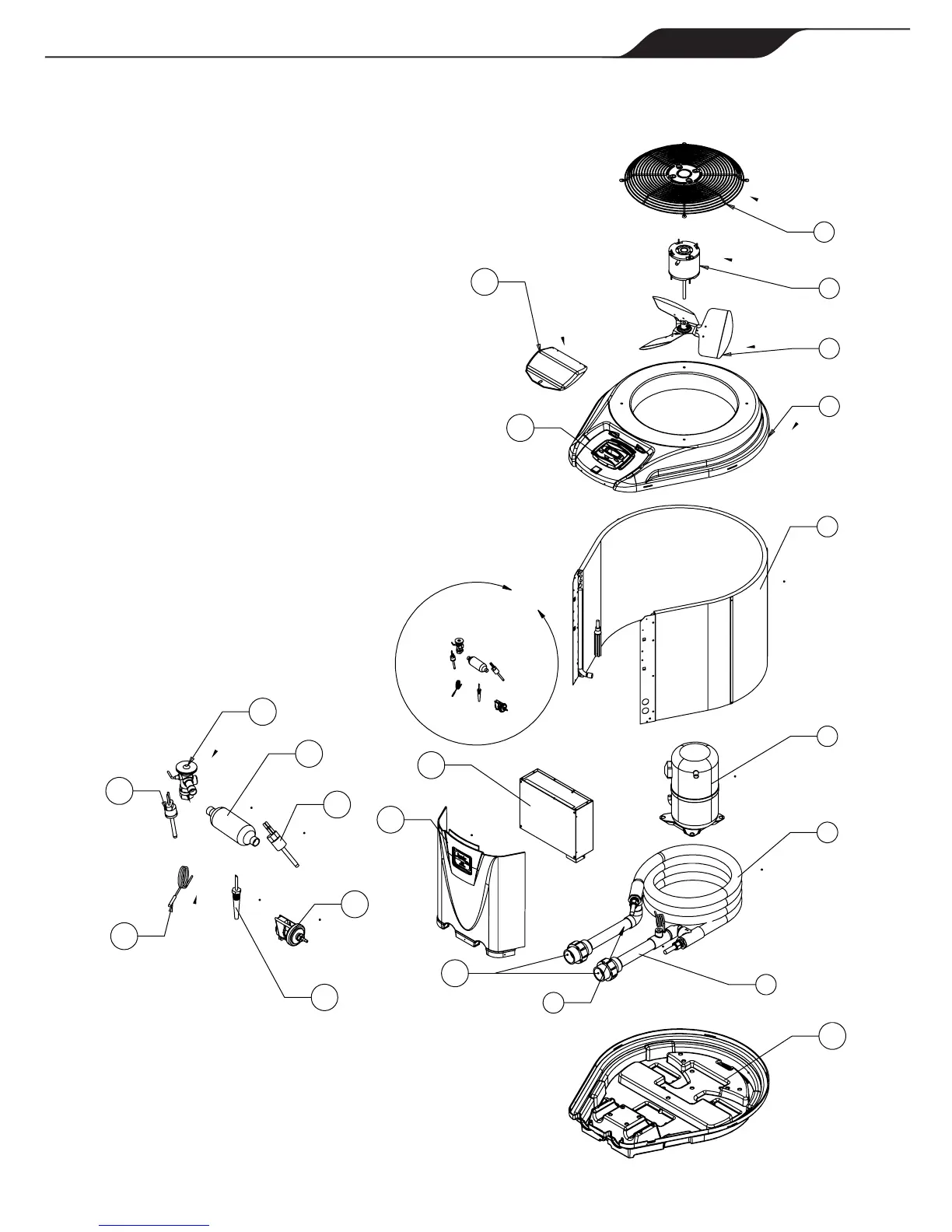

Jandy JE1500T - Zodiac JE1500 Heat Pumps Exploded View; Figure 16. Zodiac JE1500 Heat Pumps Exploded View (JE1500 Shown)

Page 27
ENGLISH
Jandy
®
Pro Series JE Heat Pumps
|
Installation and Operation Manual
 


C
1
2
3
4
5
6
7
8
9
10
11
12
20
21
DETAIL C
SCALE 1 : 8 13
14
15
16
17
18
19
33
*See Figure 19
for detail
 
