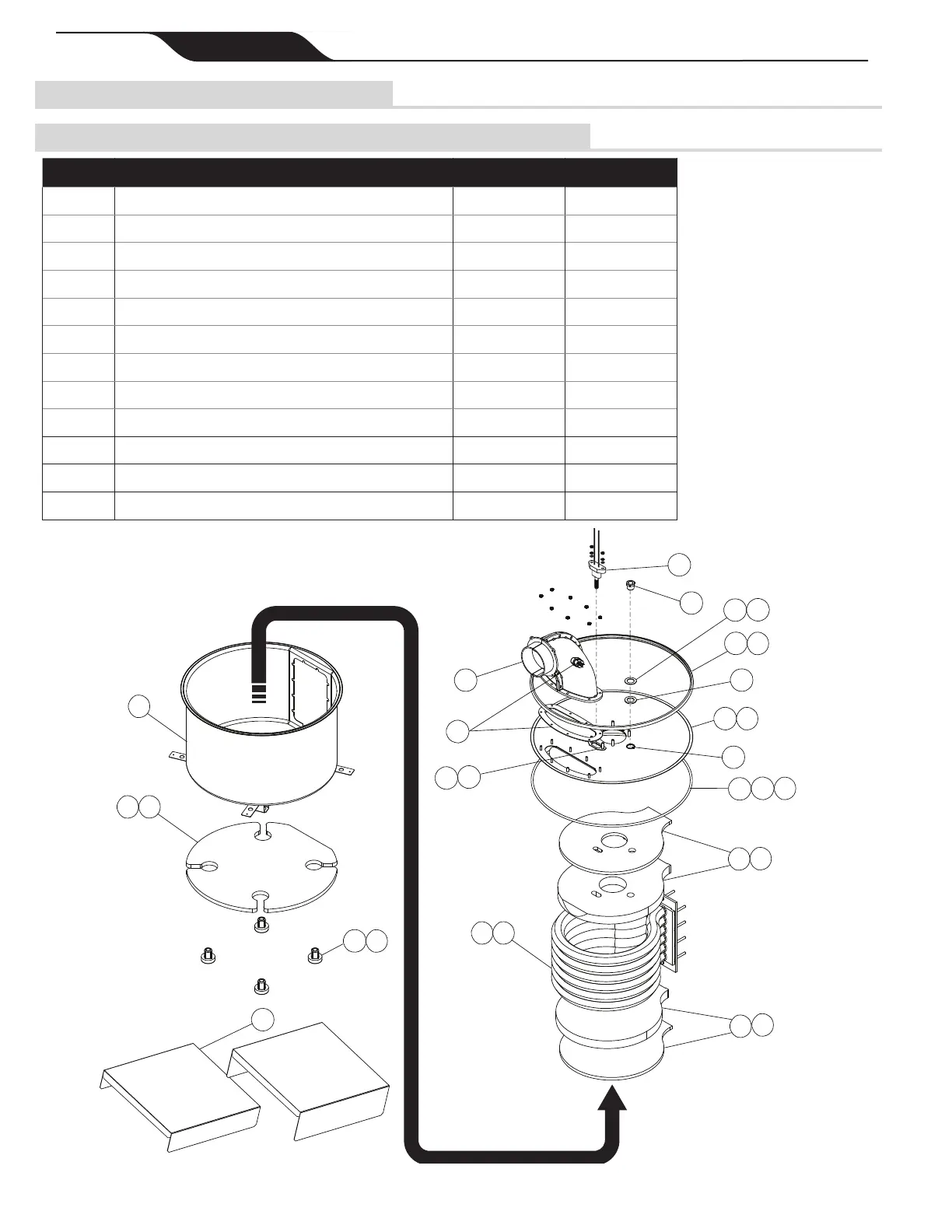

12.3.1 Combustion Chamber Assembly
(From Section “12.3.1 Combustion Chamber Assembly” on page 45)
Key No Description model 260 model 400
1 Exhaust Elbow Assembly Kit R0590200 R0590200
2 Band Clamp Kit R0590400 R0590400
3 Refractory Kit, Internal R0590500 R0590500
4 Combustion Chamber Shelf (set of 2: Models 200, 260) R0590700 N/A
5 Combustion Chamber Lid Kit R0590800 R0590800
6 Gasket Kit R0590900 R0590900
7 Sight Glass Kit R0305400
R0305400
8 Ignitor Kit R0457502 R0457502
9 Insulation Kit, External R0591000 R0591000
10 Isolator Kit (Thermal) R0593200
R0593200
11 Combustion Chamber Assembly (Includes Header) R0810203 R0810205
12 Heat Exchanger Kit R0828700 R0828701
3
10
1
8
2
5
7
2
6
9
3
260
200
4
6
8
6
7
7
6
7
1211
11
11
11
11
11
11
11
11
