Pump Function
Pump
Address
DIP Switch Setting
1 2 3 4 5
VS-FHP 1.0
Factory Default N/A ON ON OFF OFF ON
JEP-R N/A ON ON OFF OFF ON
AquaLink
®
RS
AquaLink PDA
PUMP 1 OFF OFF OFF OFF ON
PUMP 2 OFF OFF ON OFF ON
PUMP 3 OFF OFF OFF ON ON
PUMP 4 OFF OFF ON ON ON
ePump,™
VS PlusHP, and
VS-FHP2.0
Factory Default N/A OFF OFF OFF OFF N/A
JEP-R N/A ON ON OFF OFF N/A
AquaLink RS
AquaLink PDA
PUMP 1 OFF OFF OFF OFF N/A
PUMP 2 OFF OFF ON OFF N/A
PUMP 3 OFF OFF OFF ON N/A
PUMP 4 OFF OFF ON ON N/A

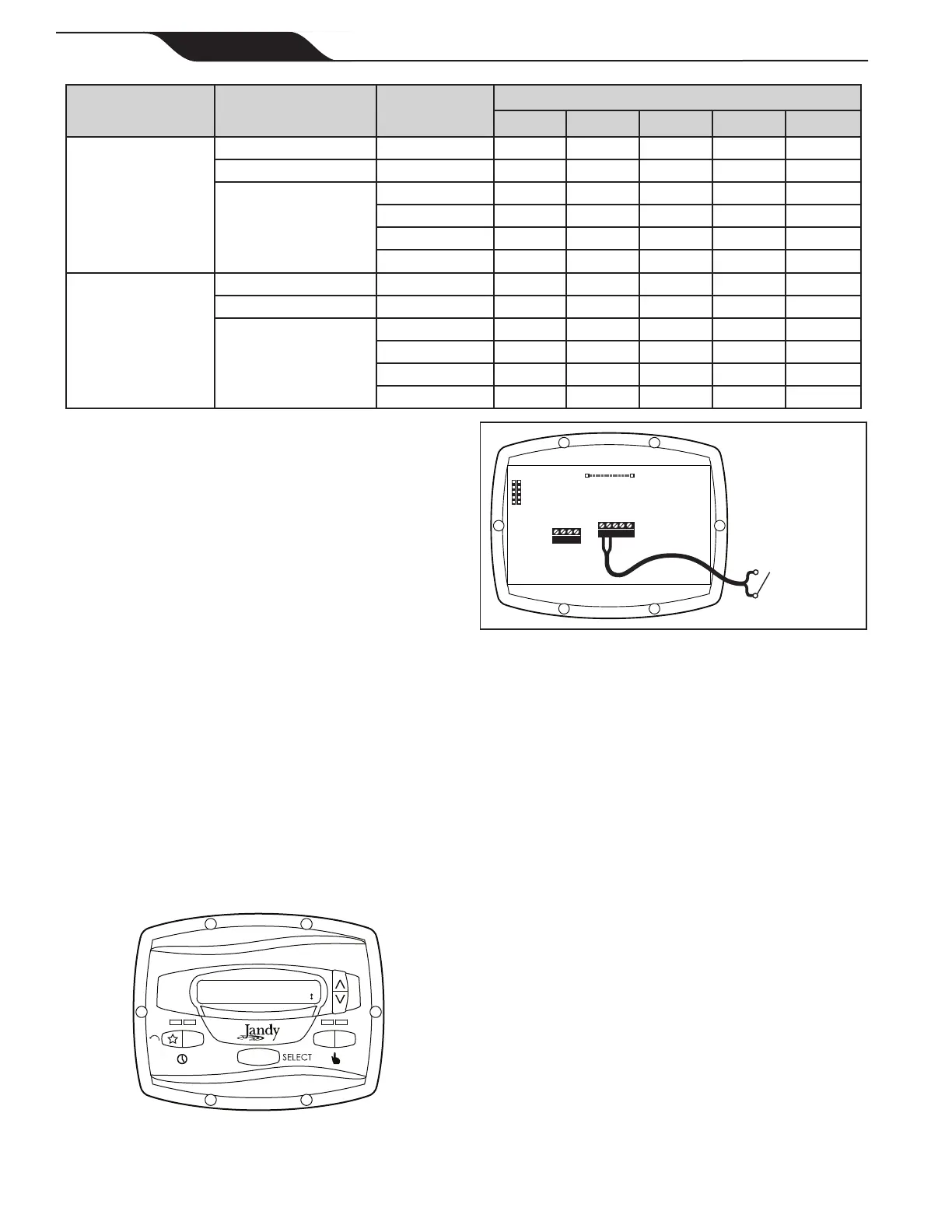

Table 1. DIP Switch Settings
3. Connect the other side of the remote contact
closure to INPUT 1, INPUT 2, INPUT 3, or
INPUT 4 terminal on J3 REMOTE CONTROL
connector of the controller, depending on which
speed is to be controlled.
4. Turn on all switches and the main breaker feeding
power to the variable-speed pump.
5. Verify the operation of the contact closures. If
the correct speed is activated when the closure
is activated, the variable-speed pump starts, and
the message
REMOTE ENABLED appears on the
controller display.
NOTE When starting the pump via a remote closure,
the pump will rst run at the priming speed for
the priming duration, as set by the installer.
2.9 Remote Operation
Speeds activated via remote closures always override
speeds that have been activated manually or via an
internal timer program. When the pump is activated
via a remote closure, the keypad is disabled and the
message
REMOTE ENABLED appears on the display.
2
3
4
MENU
REMOTE ENABLED
10:00AM RPM:1200
The controller will remain in this state until the contact
is opened. When more than one (1) contact closure
occurs, the highest speed will take priority.
RS485
4321
RED
BLACK
YELLOW
GREEN
REMOTE CONTROL
54321
INPUT 2
INPUT 3
INPUT 4
COMMON
INPUT 1
J3
Remote Contact
Closure
input
common
Figure 5. Connect to Remote Contacts
2.10 Remote Closure 4 Behavior
The behavior of speed "4" differs from manual operation
when operated via a remote contact closure. As during
manual operation, the turn-on time of remote closure
4 is immediate, and occurs at the same time as contact
closure. The turn-off time, however, is delayed by 30
minutes.
In other words, when remote closure 4 is de-activated,
the variable-speed pump will continue to run for 30
minutes, after which time the controller will turn off
the variable-speed pump. The delay may be manually
interrupted by pressing any speed key.
2.11 Remote Closure 4 Application -
Booster Pump Support
The behavior of remote closure 4 may be used to allow
an external timeclock tted with a 20-minute “reman’s
switch” (e.g., Intermatic P/N 156T4042A) to properly
control the variable-speed pump in conjunction with a
booster pump.
NOTE Pump models JEP1.5, JEP2.0 allow for
alternate remote closure, or auxiliary load
options. Please see the pumps installation/
owner's manual for more information.
Connection for Booster Pump Support:
1. Turn off all switches and the main breaker that
supplies power to the variable-speed pump.
PAGE 10
JEP-R Variable-Speed Pump Controller
|
Installation Manual
