VS FloPro™ Variable-Speed Pumps
|
Installation & Operation Manual

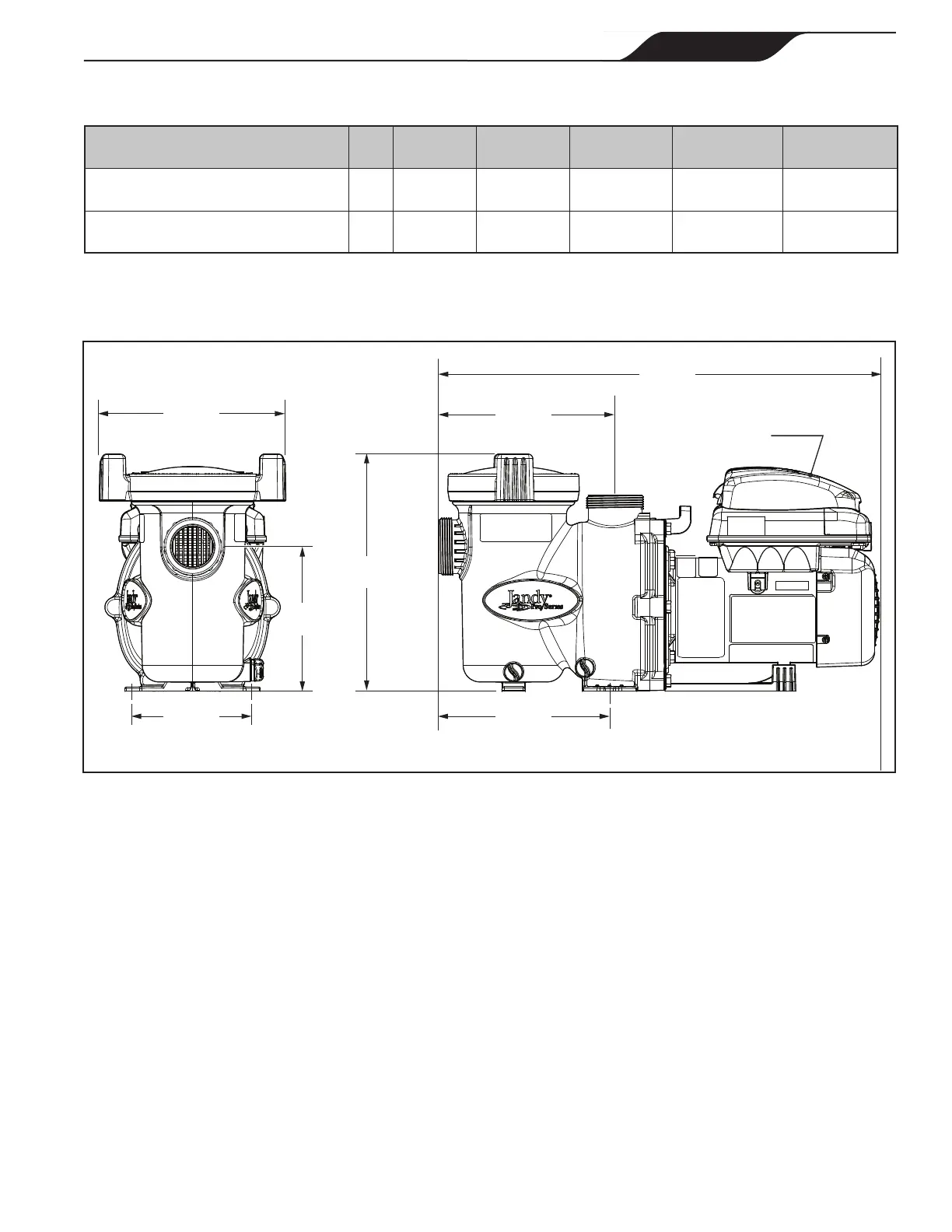

Figure 16. VSFHP165AUT, VSFHP165JEP, VSFHP085AUT, VSFHP085JEP Dimensions
254 mm
10”
197 mm
7 ¾”
165 mm
6 ½”
Bolt Holes,
Center to Center
610 mm
24”
240 mm
9 ½”
324 mm
12 ¾”
232 mm
9 ⅛”
Front Edge of Pump
to Center of Bolt Holes
Attached JEP-R Enclosure
(JEP Models only)
7.4 Physical and Operational Specications
Specications
Model No. HP Voltage Max Watts Pipe Size Carton
Weight
Overall
Length
VSFHP165AUT & VSFHP165JEP 1.65 230 VAC 1,600W 1 1/2 - 2 1/2” 46 lbs. 24” (61 cm)
VSFHP085AUT & VSFHP085JEP 0.85 115 VAC 975W 1 1/2 - 2" 46 lbs. 24” (61 cm)
7.4.2 Dimensions
NOTE When installing a pump, leave a minimum of two (2) feet (30 cm) of clearance above the pump for removal of the strainer basket.
