Janfire NH Burner Service Installation Manual 4.16.09 - Technical specifications are subject to change without prior
notice.
35(38)

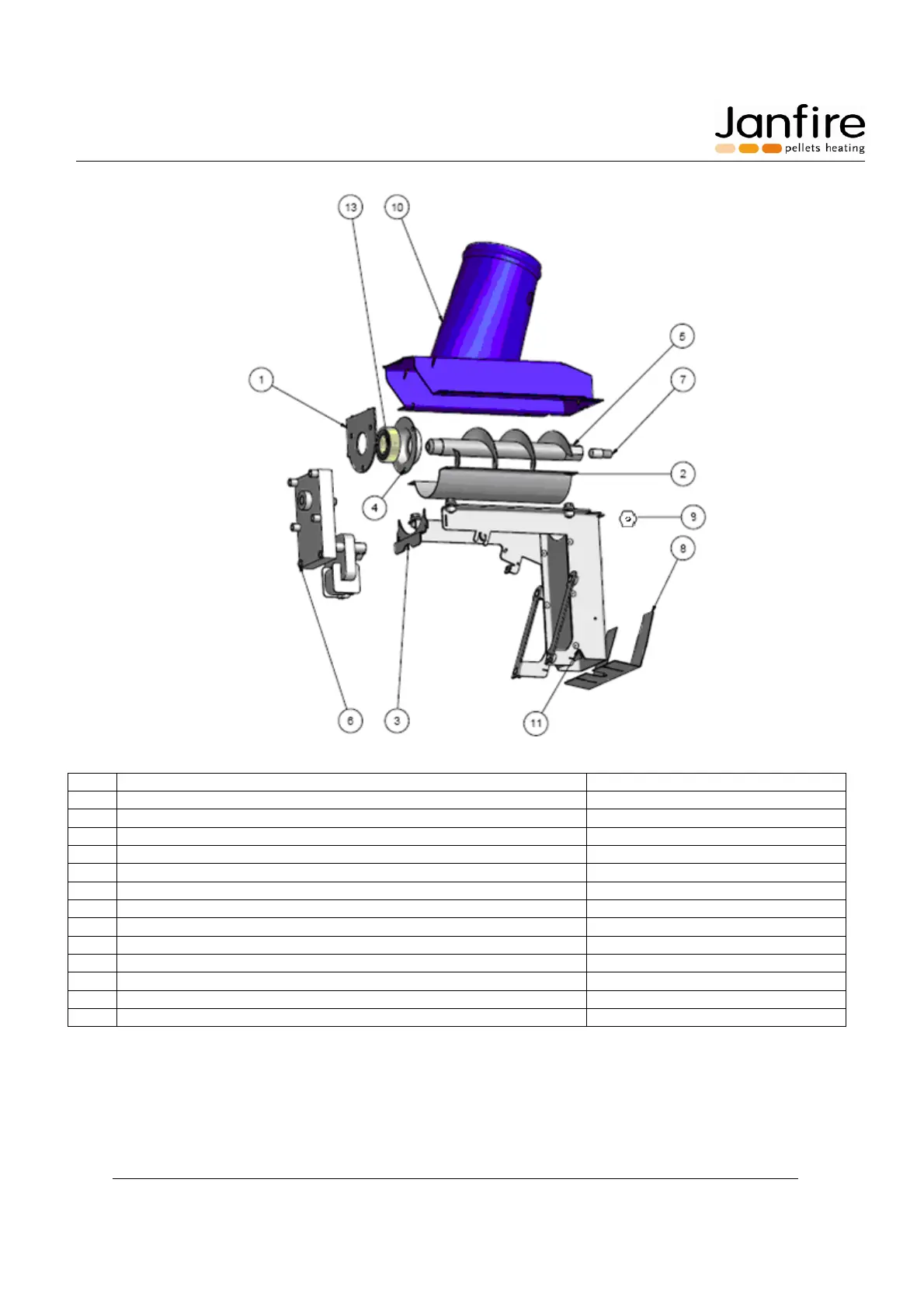

Figure 13. Dosing auger close-up
Description Part No.
1 Motor separator 11801027
2 Trough 11801026
3 Half moon support 11801029
4 Bearing guide front 11803001
5 Dosing auger 11801040
6 Dosing motor assembly 51830013
7 Stud 11805001
8 Air guide 11801030
9 Jam Nut 81068005
10 Burner hopper 11801039
11 Drop Shaft 11801038
12 Flange screw M-6 x 10 80661003
13 Auger bearing 51830008
