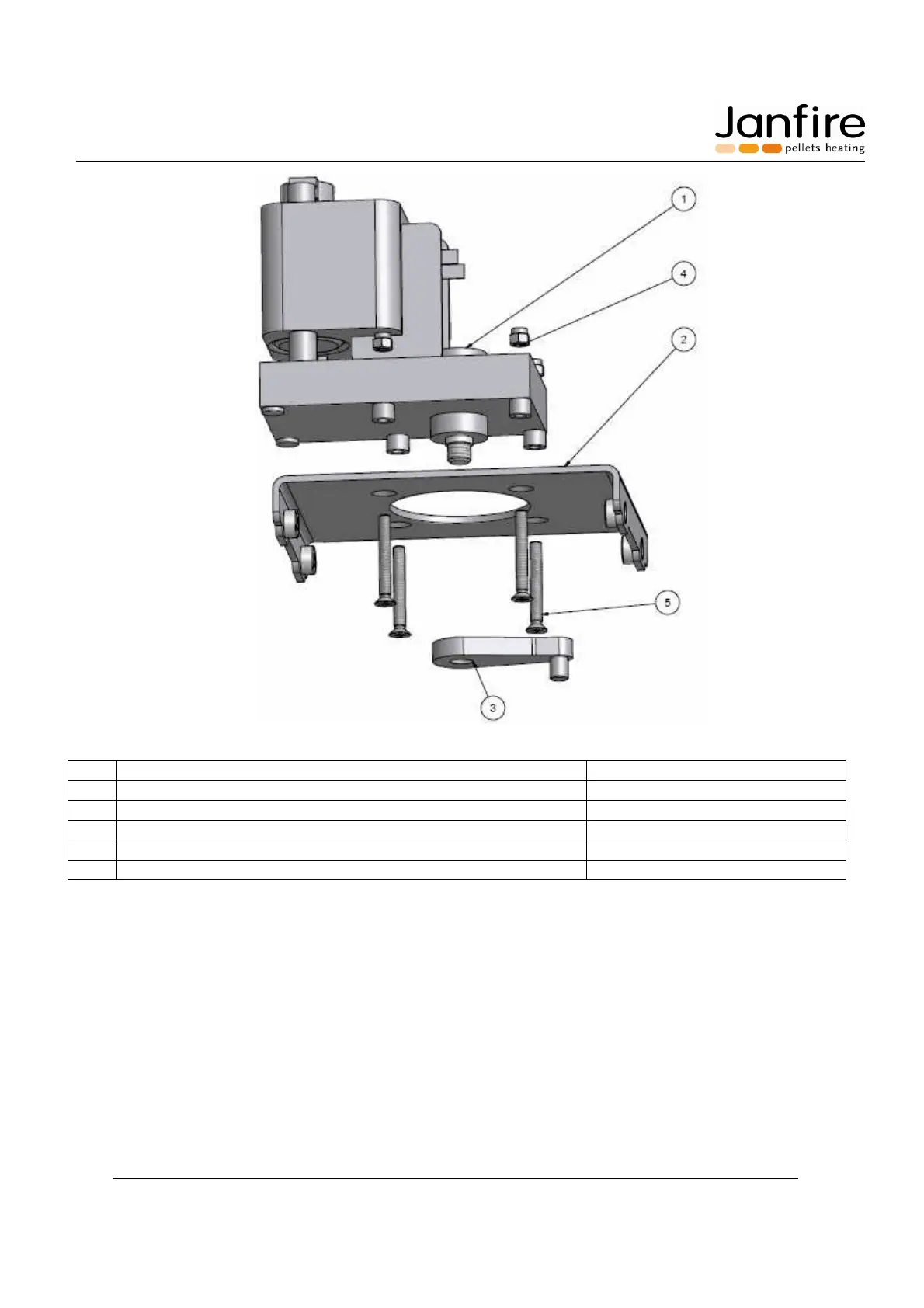

Figure 14. Ash scrape motor close-up
Description Part No.
1 Scraper motor assembly 51830012
2 Motor frame 11801019
3 Scraper cam 11801028
4 Lock nut 80567001
5 Allen head screw M5x40 80560001
