PRESSER BAR HEIGHT PRESSER BAR HEIGHT
PRESSER BAR HEIGHT PRESSER BAR HEIGHT
PRESSER BAR HEIGHT
AND AND
AND AND
AND
ALIGNMENTALIGNMENT
ALIGNMENTALIGNMENT
ALIGNMENT
TO CHECK:

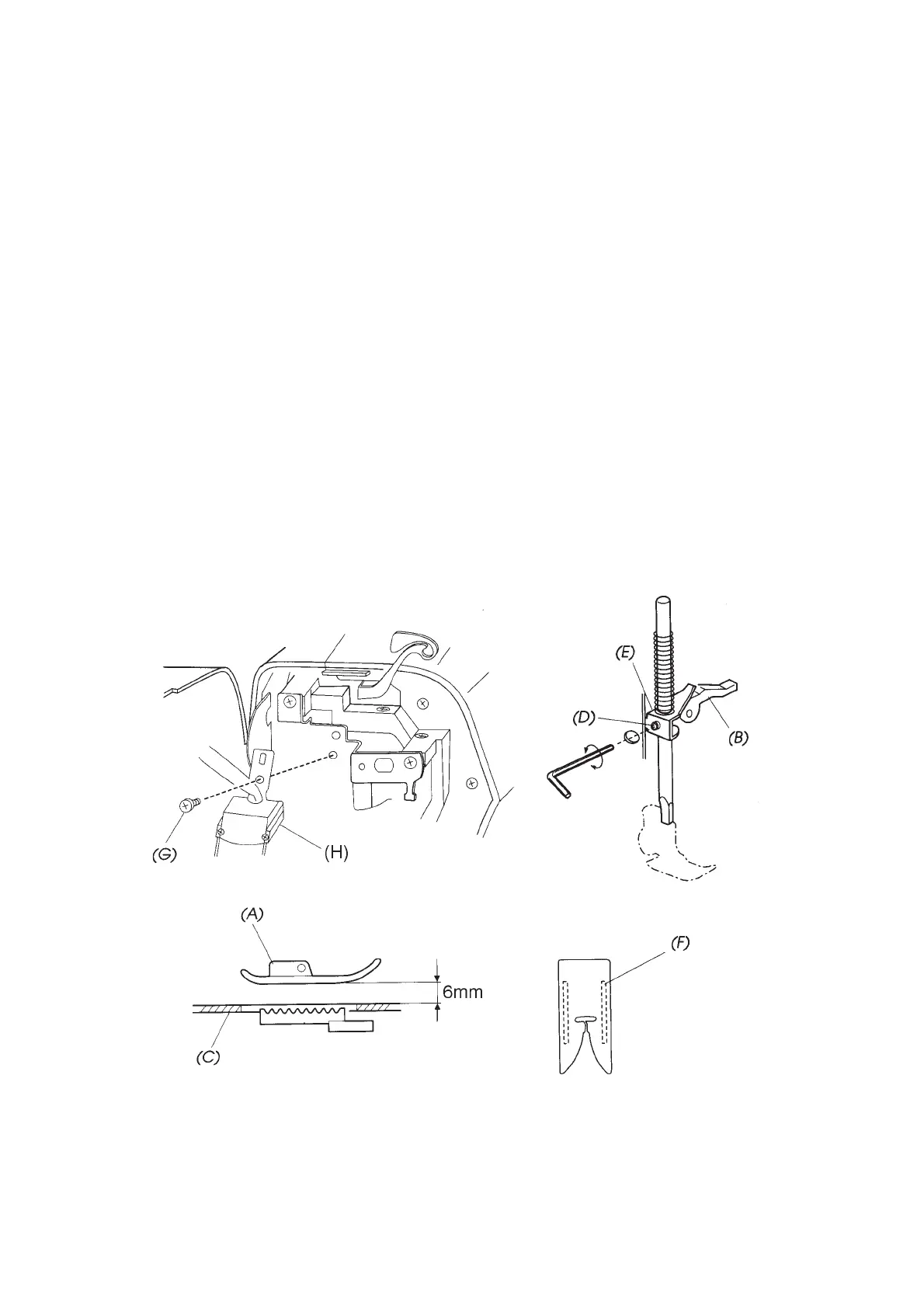

1. Raise the presser foot lever (B).
2. The distance between the zigzag foot (A) and the needle plate (C) should be 6.0 mm
(0.24").
If the height is greater or less than 6.0 mm (0.24"), adjust as follows:
Adjustment procedure:
1. Open the face cover.
2. Remove the set screw (G) and remove the lamp socket.
3. Raise the presser foot lever (B) and loosen the hexagon socket screw (D) on the presser
bar holder (E).
4. Adjust the distance between the zigzag foot (A) and the needle plate (C) to 6.0 mm
(0.24").
5. Tighten the hexagon socket screw (D) securely.
Note: when you tighten the screw (D), make sure that both sides of the zigzag foot (A)
are parallel to the feed dog slits (F) on the needle plate.
6. Fix the lamp socket (H) with set screw (G).
9
