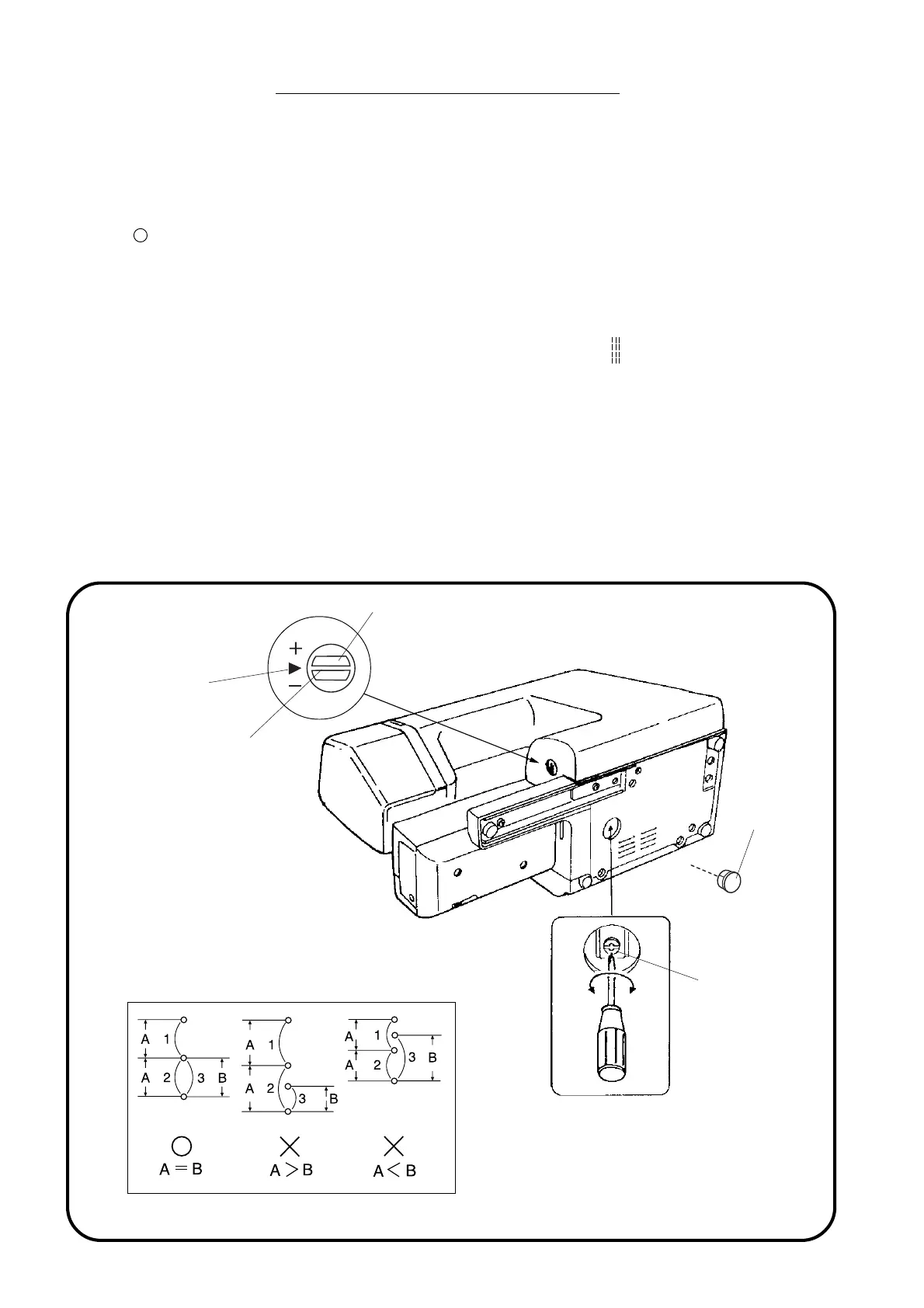

STRETCH STITCH FEED BALANCE
WHEN A STRETCH STITCH PATTERN IS SEWN WITH THE FEED BALANCING DIAL POSITION SET AT
THE STANDARD SETTING MARK " ", THE STITCH PATTERN SHOULD LOOK LIKE THE ONE MARKED
WITH A " " (A=B) IN THE DIAGRAM BELOW.
IF FORWARD AND BACKWARD FEEDING IS UNBALANCED (A.B OR A,B), ADJUST AS FOLLOWS.
ADJUSTMENT PROCEDURE:
1. TURN THE POWER SWITCH ON AND SELECT THE STITCH PATTERN " ".
2. SET THE SLIT OF THE FEED BALANCING DIAL TO THE STANDARD SETTING MARK " " ON THE
FRONT COVER.
3. PUT A PIECE OF PAPER UNDER THE PRESSER FOOT AND LOWER IT.
TURNING THE HANDWHEEL TOWARD YOU, AND CHECK THE NEEDLE MARK AT "A" AND "B".
4. REMOVE THE CAP.
5. IF A>B, TURN THE ADJUSTING SCREW COUNTERCLOCKWISE "C".
6. WHEN A<B, TURN THE ADJUSTING SCREW CLOCKWISE "D".
7. ATTACH THE CAP.
£
£
MECHANICAL ADJUSTMENT
G
F
ADJUSTING
SCREW
CAP
FEED BALANCING DIAL
INDICATION LINE
STANDARD
SETTING MARK
