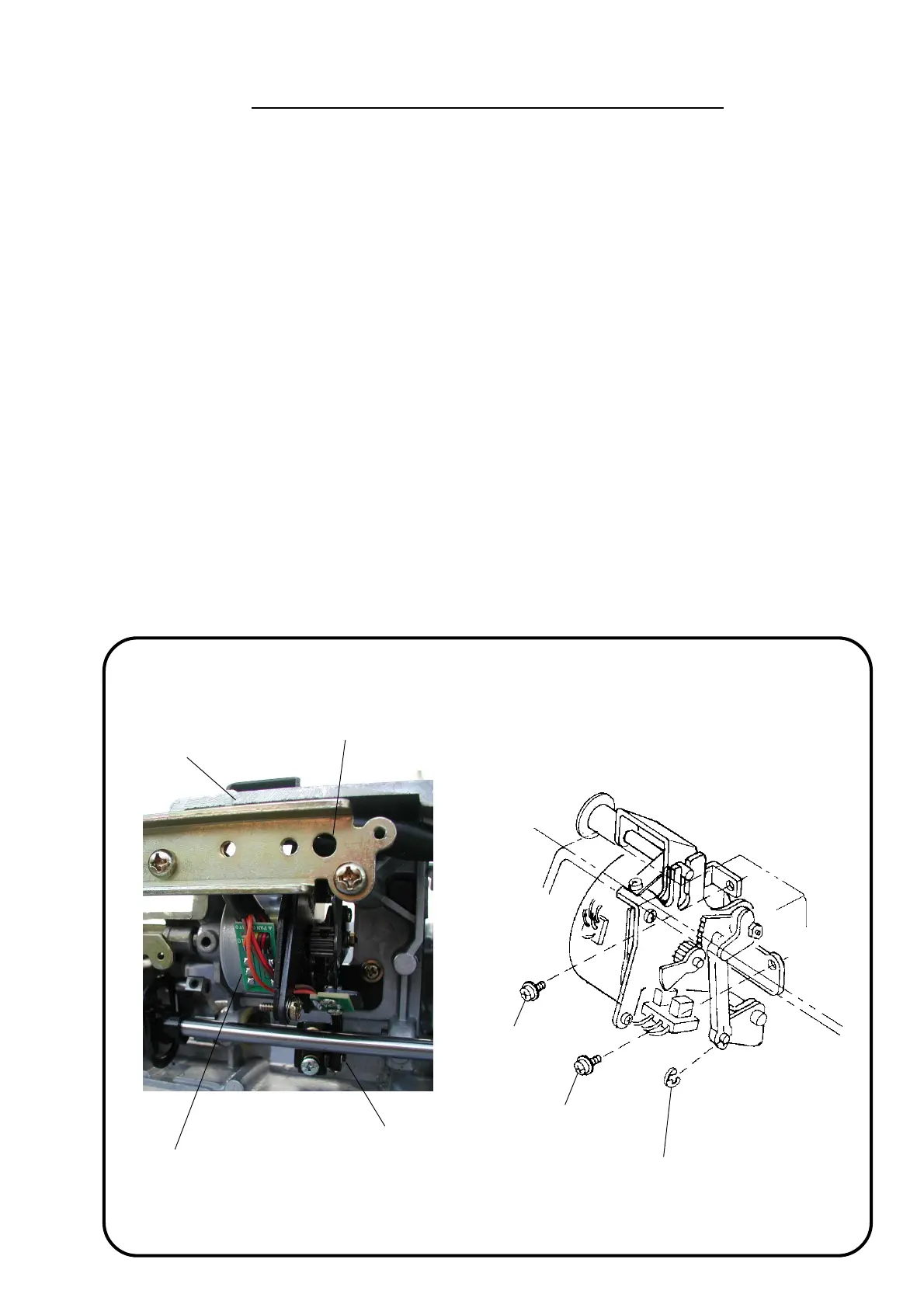

REPLACING THE FEED MOTOR
TO REMOVE:
1. REMOVE THE FRONT COVER AND REAR COVERS (SEE PAGE 9~11).
2. REMOVE THE SNAP RING (E-3).
3. REMOVE THE TWO SETSCREWS AND REMOVE THE FEED MOTOR.
CUT OFF THE CORD BINDER.
REPLACING THE FEED STITCH MOTOR
SNAP RING (E-3)
SNAP RING
(E-3)
FEED MOTOR
SETSCREW (A)
SETSCREW (B)
BINDER
ACCESS SETSCREW (B)
THROUGH THIS HOLE
TO INSTALL:
4. TO INSTALL THE FEED MOTOR, FOLLOW THE ABOVE PROCEDURE IN REVERSE.
NOTE
1. ADJUST THE STRETCH STITCH PATTERNS (SEE PAGE 21).
28
