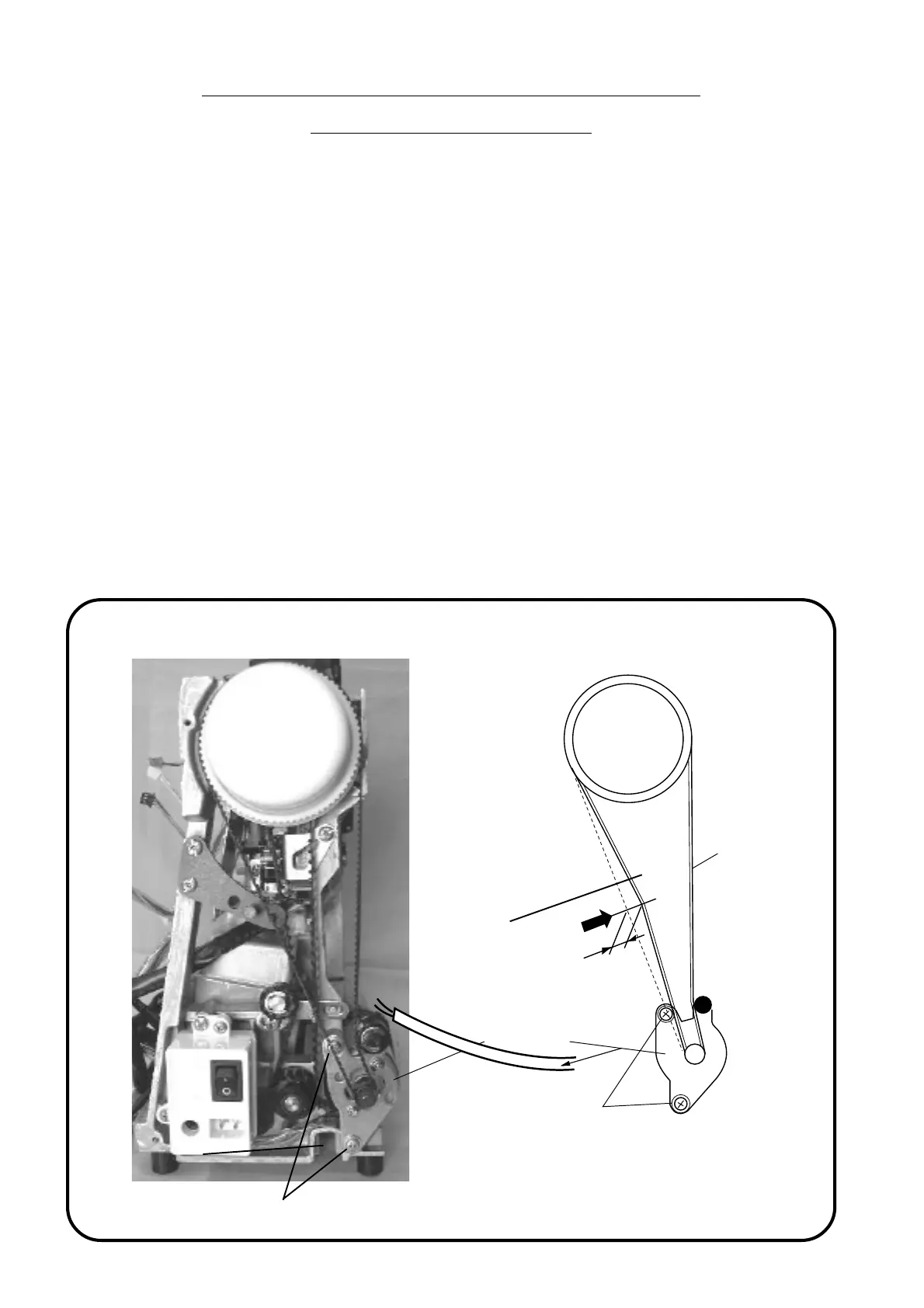

REPLACING DS MOTOR AND ADJUSTING
MOTOR BELT TENSION
PRESSURE 300G
BELT TENSION:
7~9 MM
SETSCREWS (2)
SETSCREWS (2)
DC MOTOR
BELT
TO REMOVE:
1. REMOVE THE FRONT AND REAR COVERS (SEE PAGE 6~8).
2. REMOVE THE TWO SETSCREWS, THEN REMOVE THE DC MOTOR AND BELT.
TO INSTALL:
3. LIGHTLY TIGHTEN THE TWO SCREWS.
4. PUT THE MOTOR BELT ON THE PULLEY AND ADJUST THE BELT DEFLECTION TO ABOUT 7 TO 9 MM
BY PRESSING THE MIDDEL OF THE MOTOR BELT WITH YOUR FINGER (WITH APPROXIMATELY
300 GRAMS OF PRESSURE). THEN, TIGHTEN THE SCREWS FIRMLY.
5. INSTALL THE FRONT AND REAR COVERS.
