REPLACING THE TRANSFORMER
TO REMOVE:
1. REMOVE THE FRONT COVER (SEE PAGE 6~7).
2. REMOVE THE TWO SETSCREWS AND REMOVE THE TRANSFORMER.
CUT OFF THE BINDER.
TO INSTALL:
3. TO INSTALL THE TRANSFORMER, FOLLOW THE ABOVE PROCEDURE IN REVERSE.
NOTE
1. PLACE THE REAR END OF THE TRANSFORMER ON THE TRANSFORMER SUPPORT.
SLIDE THE TWO TRANSFORMER WIRE TUBES TO THE SIDE OF TRANSFORMER AND SECURE
THEM TO THE ZIGZAG STEPPING MOTOR WIRE SO THEY WILL NOT COME IN CONTACT WITH ANY
MOVING PARTS.

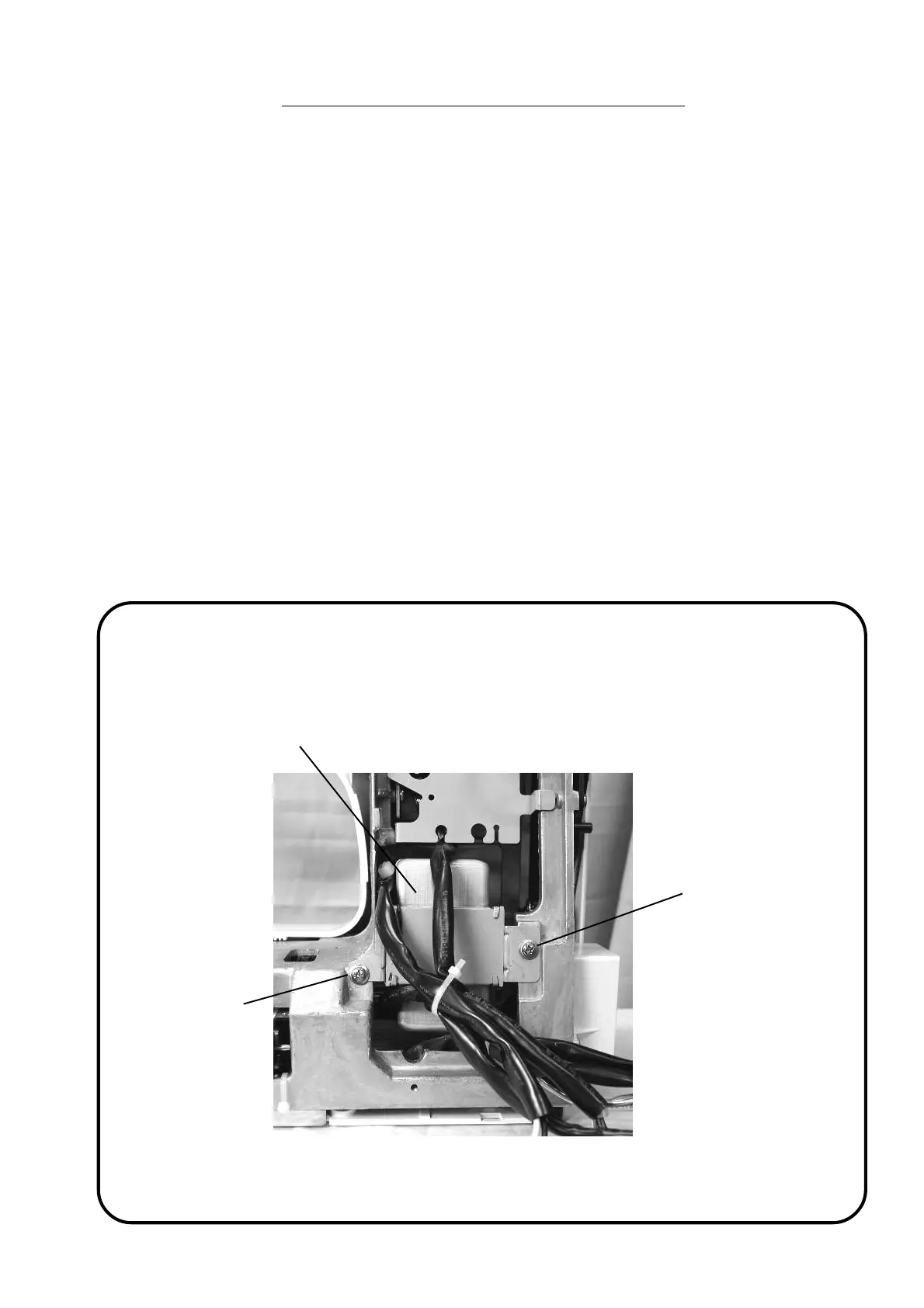

TRANSFORMER
SETSCREW
REPLACING THE TRANSFORMER
SETSCREW
26
