ADJUSTING THE BOBBIN WINDER SWITCH
SETSCREW
SWITCH FIXING
PLATE
APPROX.
07. TO 1.3 MM
(BOBBIN WINDING)
BOBBIN WINDER ARM

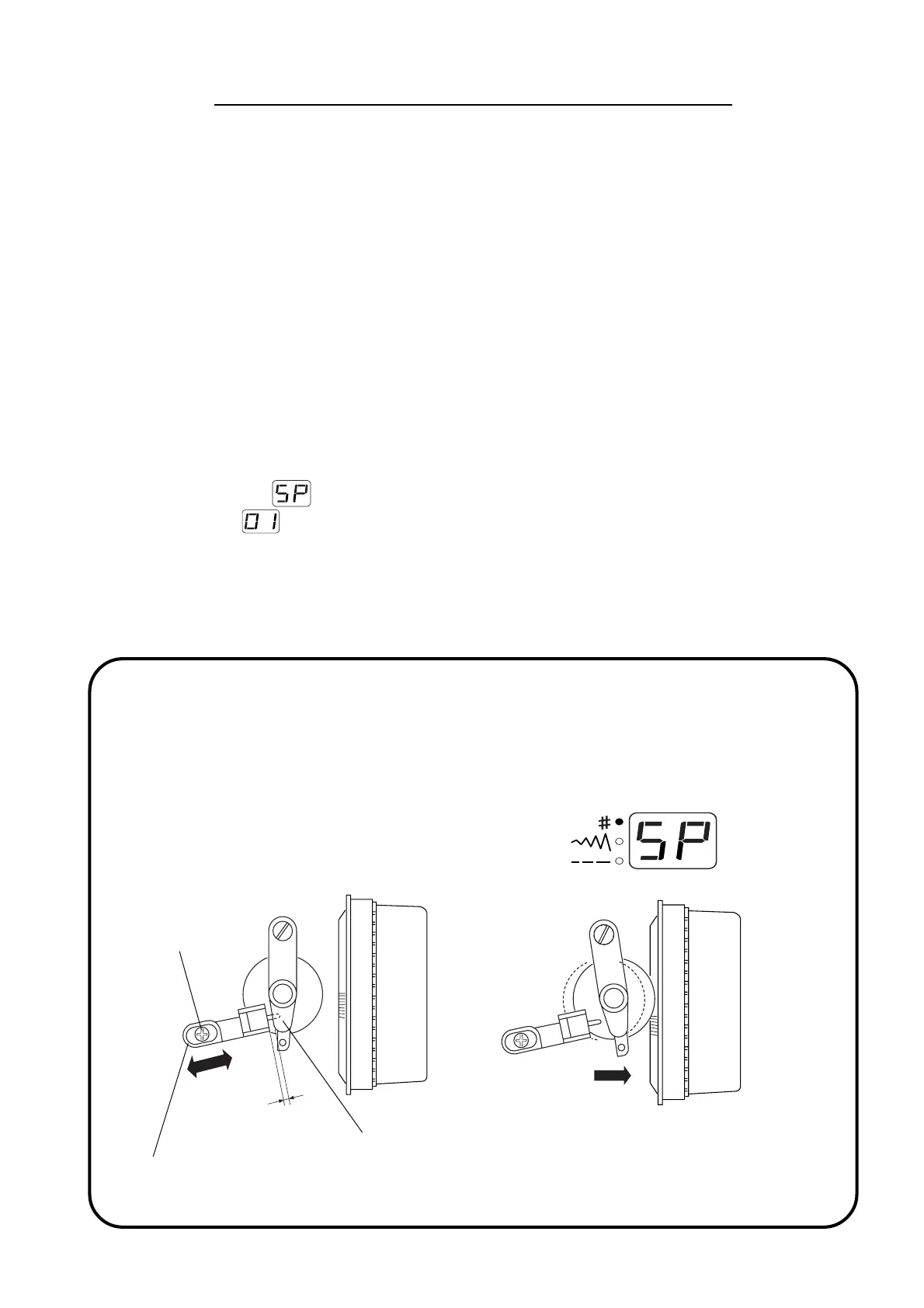

TO ADJUST THE BOBBIN WINDING SWITCH
1. REMOVE THE FRONT COVER (SEE PAGE 6 - 7).
2. SET THE BOBBIN WINDER ARM IN THE SEWING POSITION AND LOOSEN THE SETSCREW.
ADJUST THE CLEARANCE BETWEEN THE BOBBIN WINDER ARM AND THE SWITCH FIXING PLATE
TO O.7 TO 1.3 MM.
3. TIGHTEN THE SETSCREW.
4. INSTALL THE FRONT COVER.
TO CONFIRM:
TURN THE POWER SWITCH ON.
THE LED DISPLAYS WHEN THE BOBBIN WINDER SPINDLE IS SET THE BOBBIN WINDING
POSITION, AND WHEN THE BOBBIN WINDER IS RETURNED TO THE SEWING POSITION.
