Janome HD3000 User Manual

3
Extension Table
The extension table provides added sewing surface
and can be easily removed for free arm sewing.

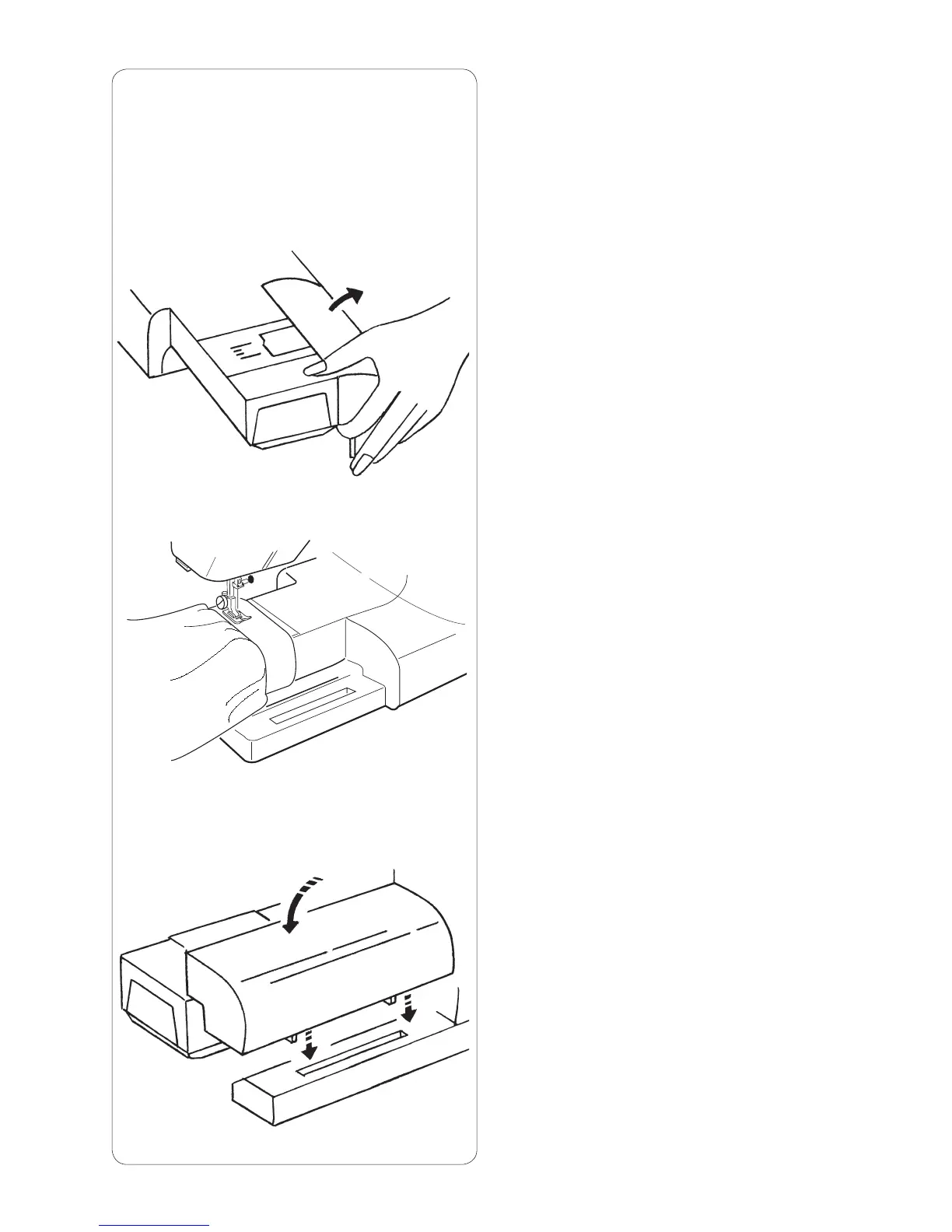

For free arm sewing
Lift out the extension table, as illustrated.
For attaching the table
Position the two pins of the storage box on the base
slit and push down gently.
Removable Extension Table
Free arm sewing:
The free arm is used for stitching sleeves, waistbands,
pant legs or any other tubular garments.
It is also useful for darning socks or elbows.

Janome HD3000 Specifications

General

Built-in Stitches	18
Buttonhole Style	1-step
Maximum Stitch Width	6.5mm
Maximum Stitch Length	4mm
Needle Threader	Yes
Free Arm	Yes
Drop Feed	Yes
Weight	18.7 lbs
Type	Mechanical
Adjustable Stitch Length	Yes
Adjustable Stitch Width	Yes
Reverse Stitch	Yes
Body Material	Aluminum
Warranty	25-Year Limited
Bobbin Type	Top loading full rotary hook bobbin
