Janome JP720 - Rear Cover Removal and Attachment

8
Changing External Parts

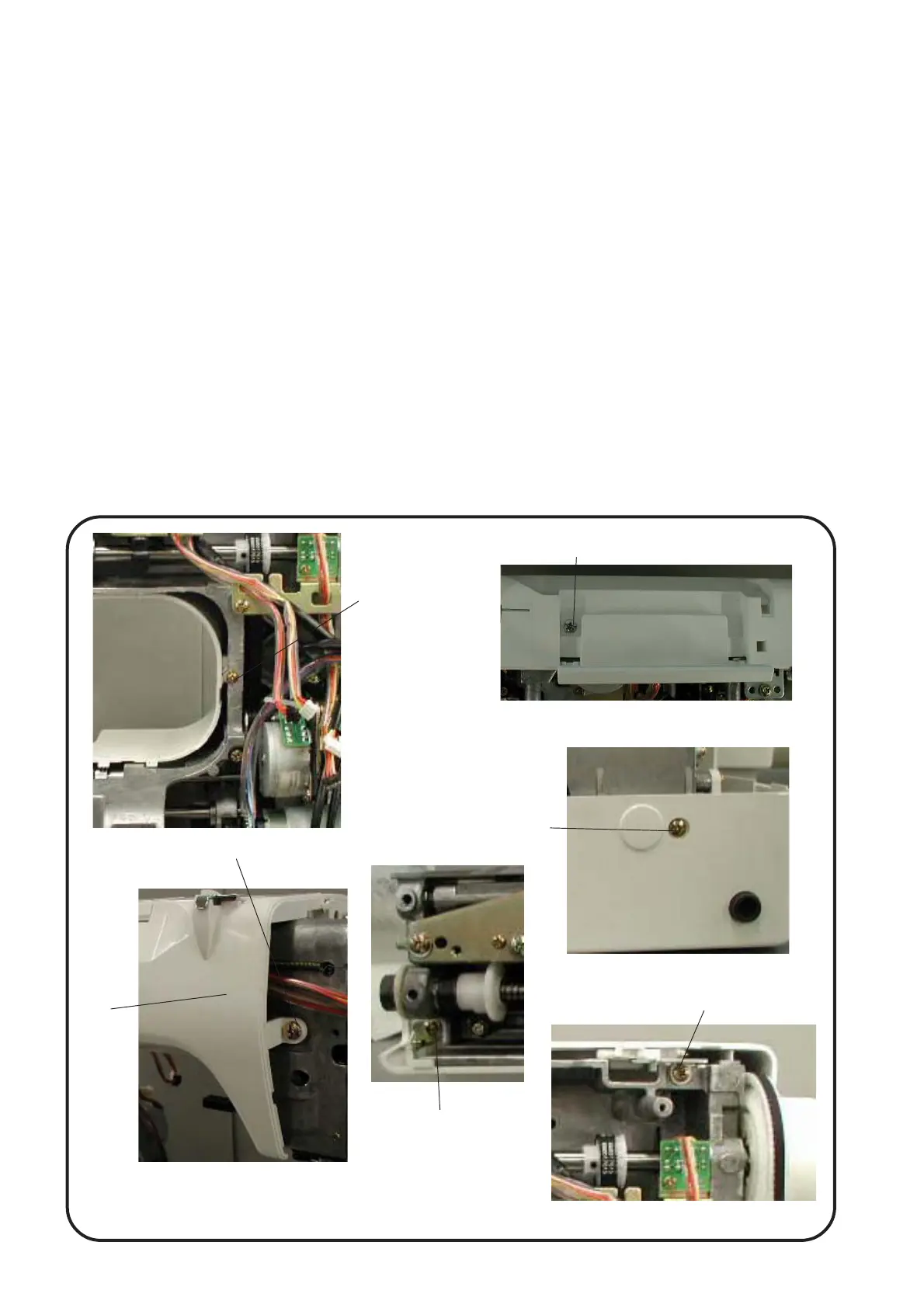

Rear cover
To remove:
1. Remove the front cover. (See pages. 6, 7)
2. Loosen set screws , , , , ,and , then remove the rear cover .
NOTE:
Remove the presser lifter from the rear cover first while presser lifter lowered.
To attach:
Follow the above procedures in reverse.
q
q
w
w
e
e
r
r
t
t
y
y
u
u
