26
300g
7 – 9 mm

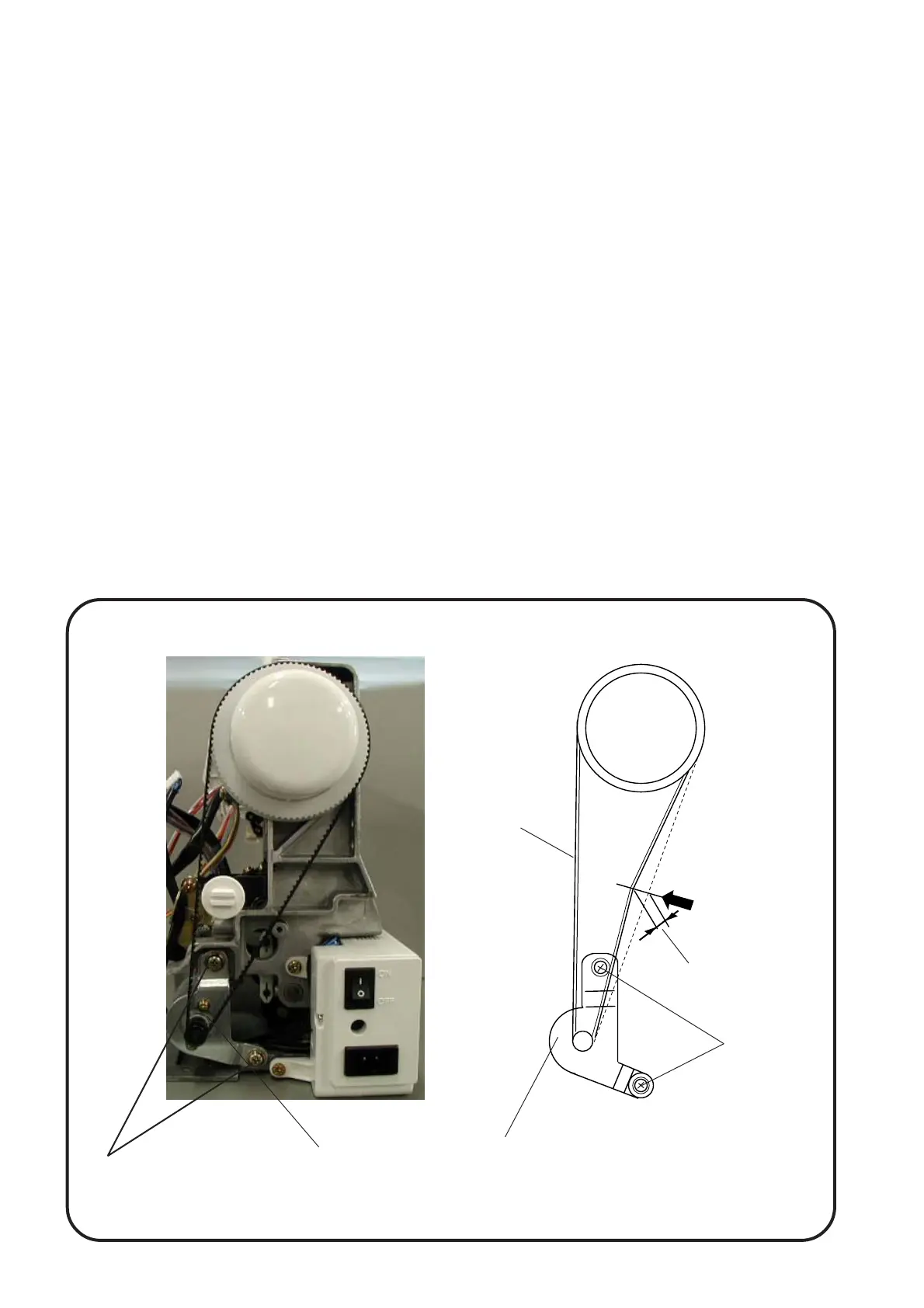

Driving motor
To remove:
1. Remove the front cover and the rear cover.
2. Loosen 2 screws and remove the driving motor and the belt .
To attach:
1. Install the driving motor and the motor belt with 2 screws .
2. Loosen the set screws slightly and move the motor up or down to adjust the motor belt tension.
The belt should deflect 7–9 mm when applying 300 grams of load to the middle of the belt.
Tighten the setscrews firmly.
3. Attach the rear cover and the front cover.
q
q
w
w
e
w
q
q
e
e
q
Motor belt tension
Replacing the Electronic Components
