22
MECHANICAL ADJUSTMENT
MOTOR BELT TENSION
TO CHECK:
1. If the motor belt tension is too tight or too loose, it can cause a belt noise: if the tension is too tight, it can
cause the machine to run slowly and the motor to overload; if the tension is too loose; it can cause the belt
teeth on the motor pulley to jump.
2. The correct motor belt tension is when the deection of motor belt is about 7mm (0.28”) - 9mm (0.36”).
(When pushing the motor belt by nger with a 300 gram load.)
ADJUSTMENT PROCEDURE:
1. Remove the rear cover. (See page 6)
2. Loosen the screws (A) and (B).

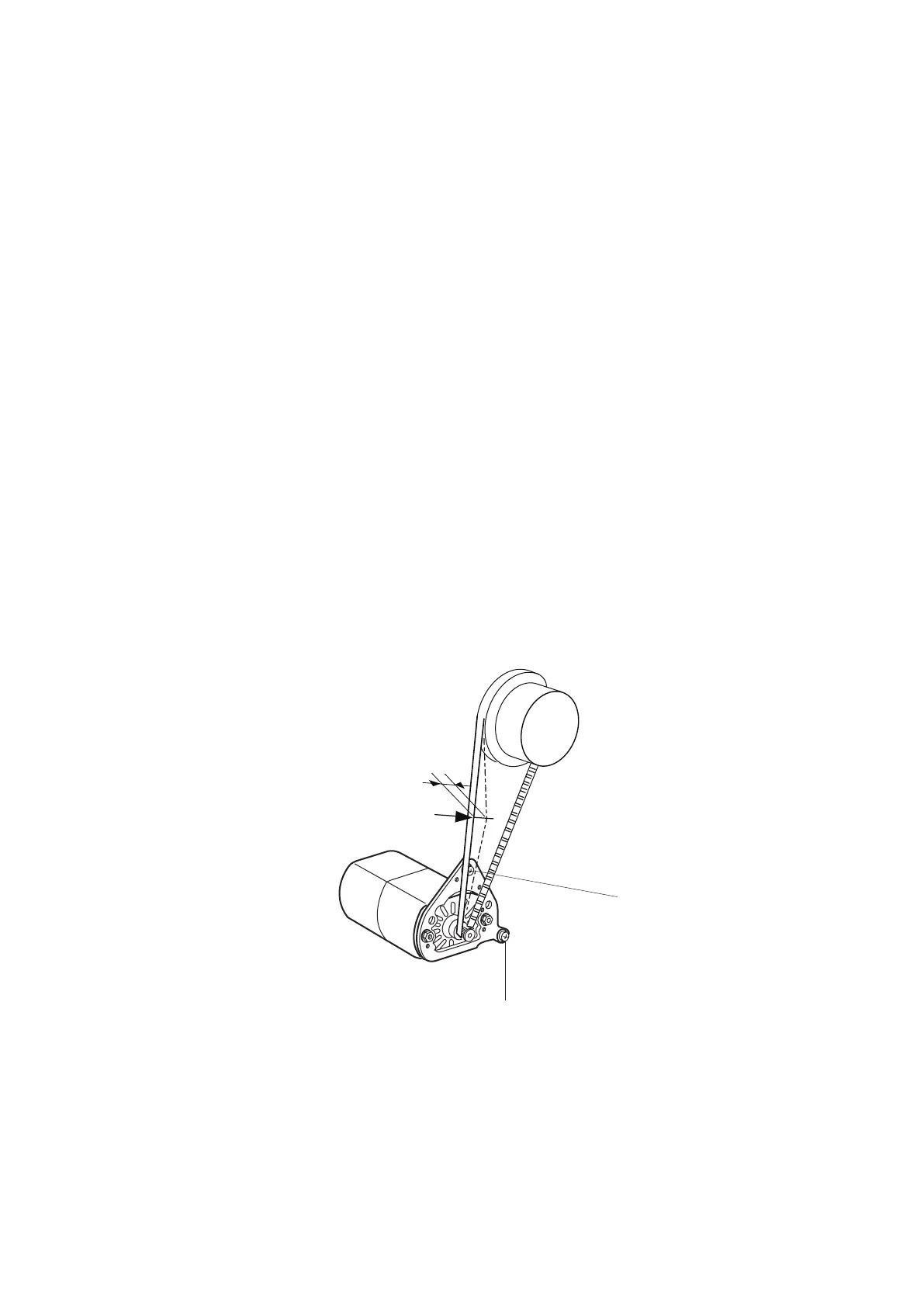

3. Move the motor UP or DOWN to adjust the deection about 7mm (0.28") - 9mm (0.36").
4. Tighten the screws (A) and (B).
300g Load
Deflection 7–9 mm
(A)
(B)
To Next Page
