Janome JUNO E1015 - Wiring

23
(A)
(A)
Arm
Machine socket unit
(B)
Machine socket cover

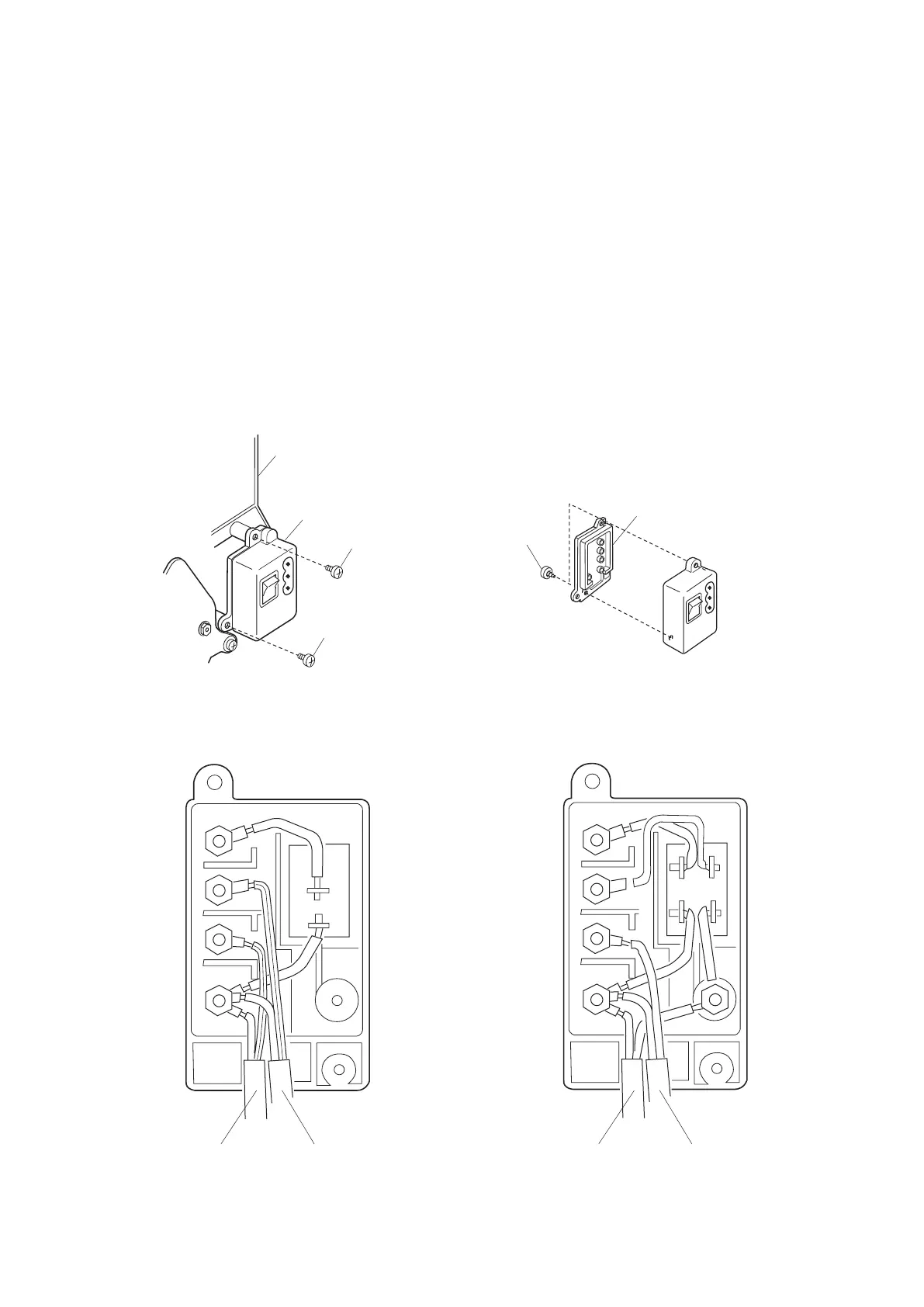

WIRING
1. Remove the belt cover. (See page 4.)
2. Remove the screws (A), (B) and machine socket cover.
3. Follow the above procedure in reverse.
Motor cord Lamp cord Motor cordLamp cord
240V
120V
