To adjust:
1. Remove the foot holder.
2. Turn the power switch OFF.
Attach the embroidery unit.
Extend the carriage arm.
3. Attach the embroidery hoop and the template.
4. Turn the power switch ON while pressing the Start/Stop
button and the Reverse stitch button to enter the factory
setting mode.

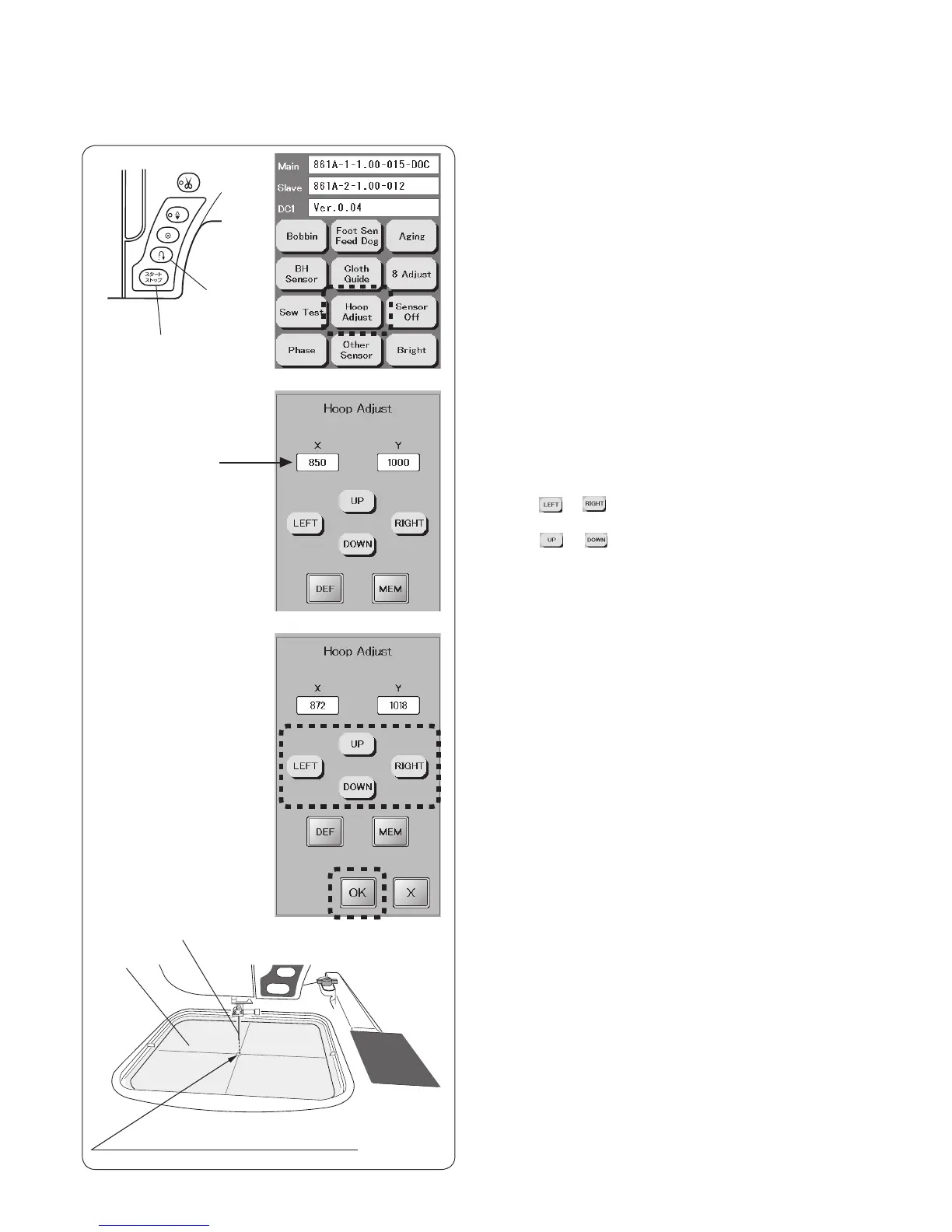

Press "Hoop Adjust" key (see Fig. 2).
5. The needle moves to the left needle position, and the
hoop moves to its starting position.
(Default position: X=850 Y=1000)
6. Adjust the hoop position so that the needle drops to the
center of the template hole.
Press
or key to adjust the horizontal hoop
position (X value).
Press or key to adjust the vertical hoop position
(Y value).
7. Press OK key.
⇒ ⇒
Start/Stop button
Reverse
stitch button
X and Y value
Template
Match the needle drop position and
the center of the tempalte hole
Mechanical adjustment
Adjusting X and Y sensors (simple adjustment)
