Janome MOD-19 - SECTION 1. ESSENTIAL PARTS Names of Parts; Setting the Spool Pin

2
Setting the Spool Pin
Insert the spool pin into the hole as shown.
q Spool pin
w Hole
q
w

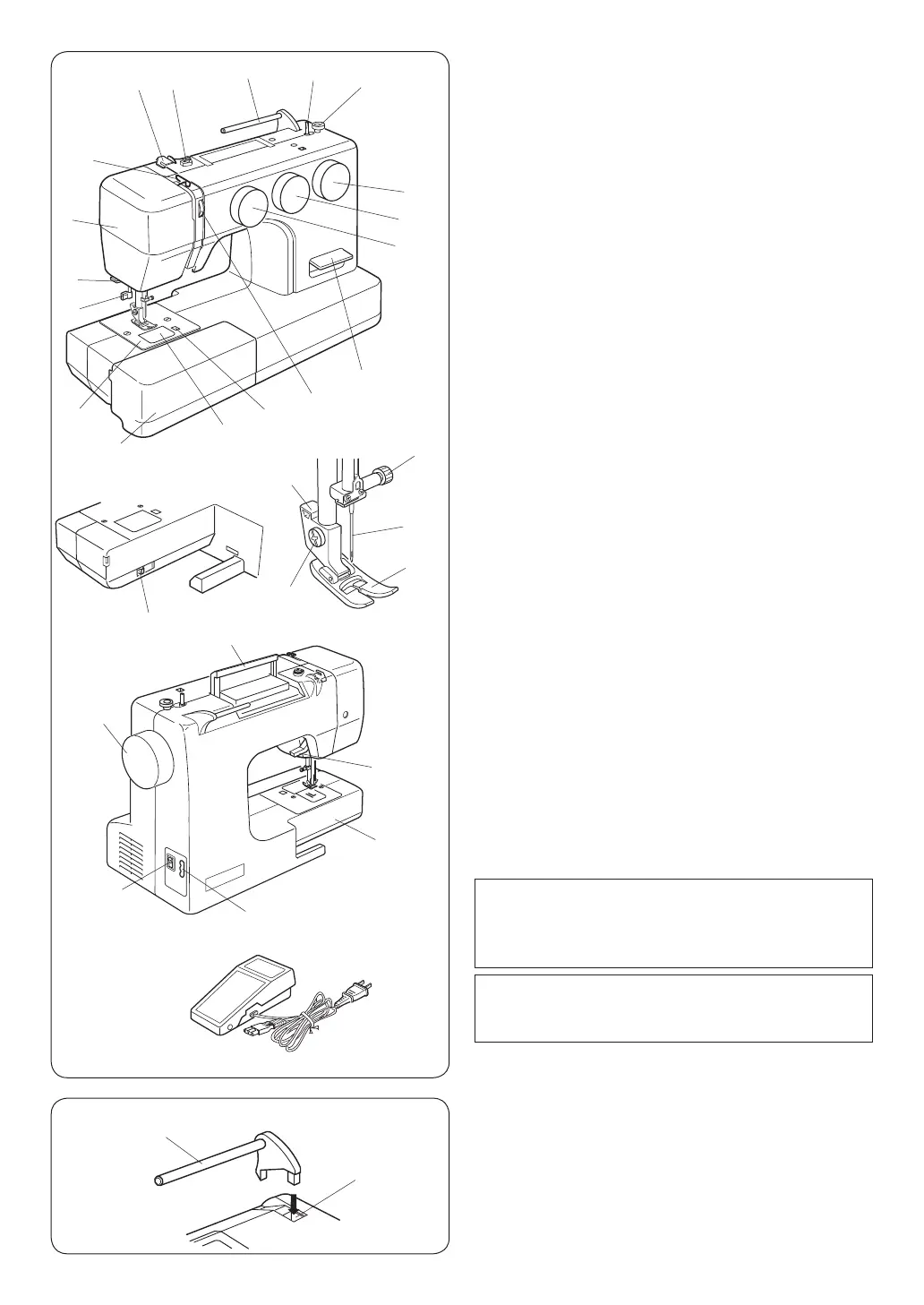

SECTION 1. ESSENTIAL PARTS
Names of Parts
q
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@4
@5
@6
@7
@8
@9
#0
#1
NOTE:
Design and specications are subject to
change without prior notice.
NOTE:
To carry the sewing machine, hold the carrying
handle with your hand, and support the sewing
machine with the other hand.
q
w
e
r
t
y
u
i
o
!0
#0
@9
@8
@7
@6
@5
@4
@3
@2
@1
@0
!9
!8
!7
!6
!5
!4
!3
!2
!1
#1
Bobbin winder stopper
Bobbin winder spindle
Spool pin
Bobbin winder thread guide
Thread guide
Thread take-up lever
Face cover
Thread cutter
Needle threader
Needle plate
Extension table (Accessory storage)
Hook cover plate
Hook cover plate release button
Thread tension dial
Reverse stitch lever
Stitch width dial
Stitch length dial
Pattern selector dial
Presser foot
Needle
Needle clamp screw
Foot holder
Setscrew
Carrying handle
Handwheel
Power switch
Machine socket
Drop feed lever
Free-arm
Presser foot lifter
Foot control*
* The foot control included may differ from the
illustration.
