MS5027PR
MECHANICAL ADJUSTMENT
DISTRIBUTION OF NEEDLE SWING
TO CHECK:
1. SET THE STITCH WIDTH CONTROL TO "0" AND THE STITCH SELECTOR AT " ".
2. RAISE THE NEEDLE TO ITS HIGHEST POSITION.
3. DROP THE FEED DOGS.
4. PLACE A PIECE OF PAPER ON THE NEEDLE PLATE, AND LOWER THE PRESSER FOOT.
5. LOWER THE NEEDLE TO MARK THE NEEDLE POINT (A) ON A PIECE OF PAPER BY TURNING THE
HANDWHEEL.
6. RAISE THE NEEDLE TO ITS HIGHEST POSITION.
7. SLIDE THE STITCH WIDTH CONTROL TO "6.5".
8. LOWER THE NEEDLE TO MARK THE NEEDLE POINTS (B AND C) ON THE PIECE OF PAPER, BY
TURNING THE HANDWHEEL.
9. THE DISTANCE BETWEEN A-B AND A-C SHOULD BE EQUAL.

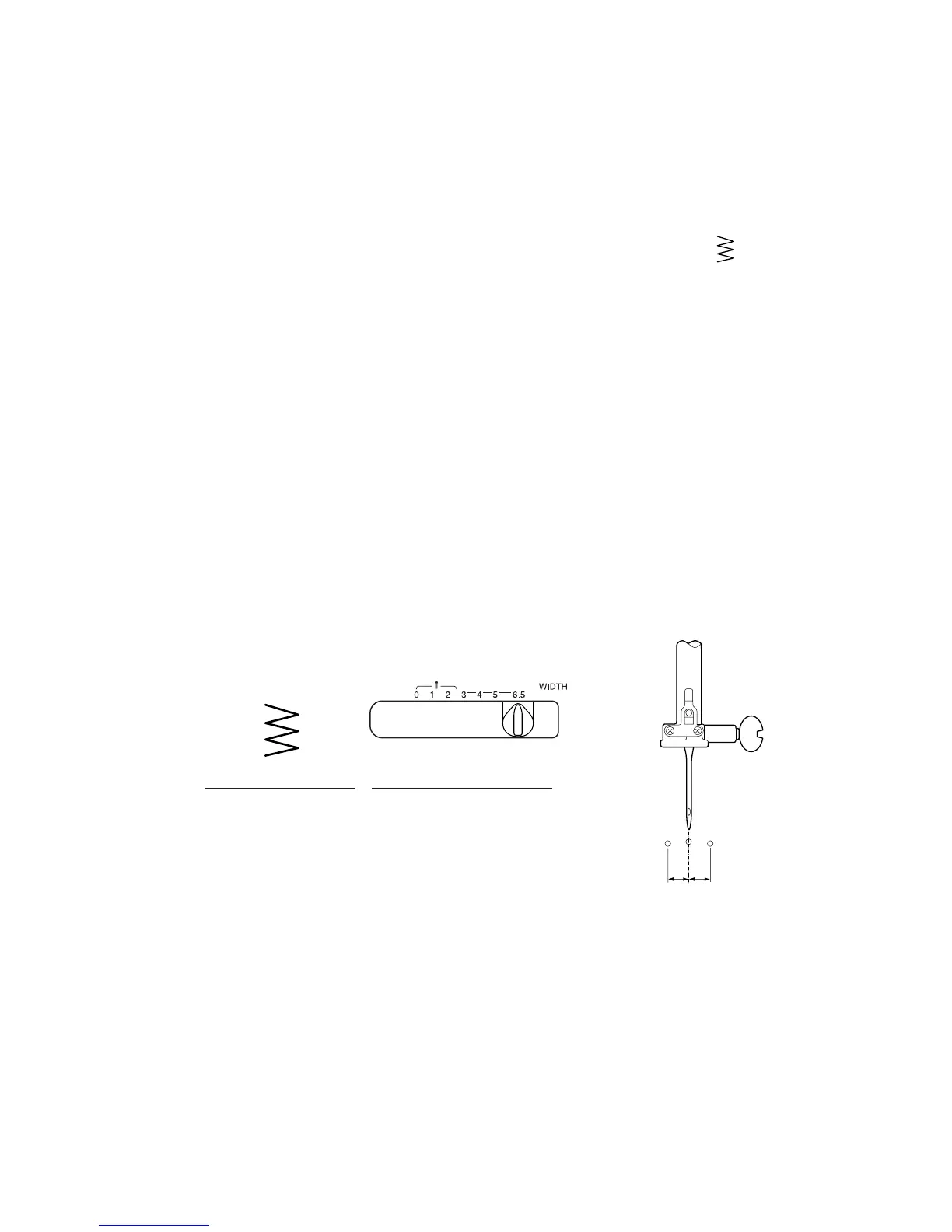

SELECTED PATTERN STITCH WIDTH CONTROL
A
BC
