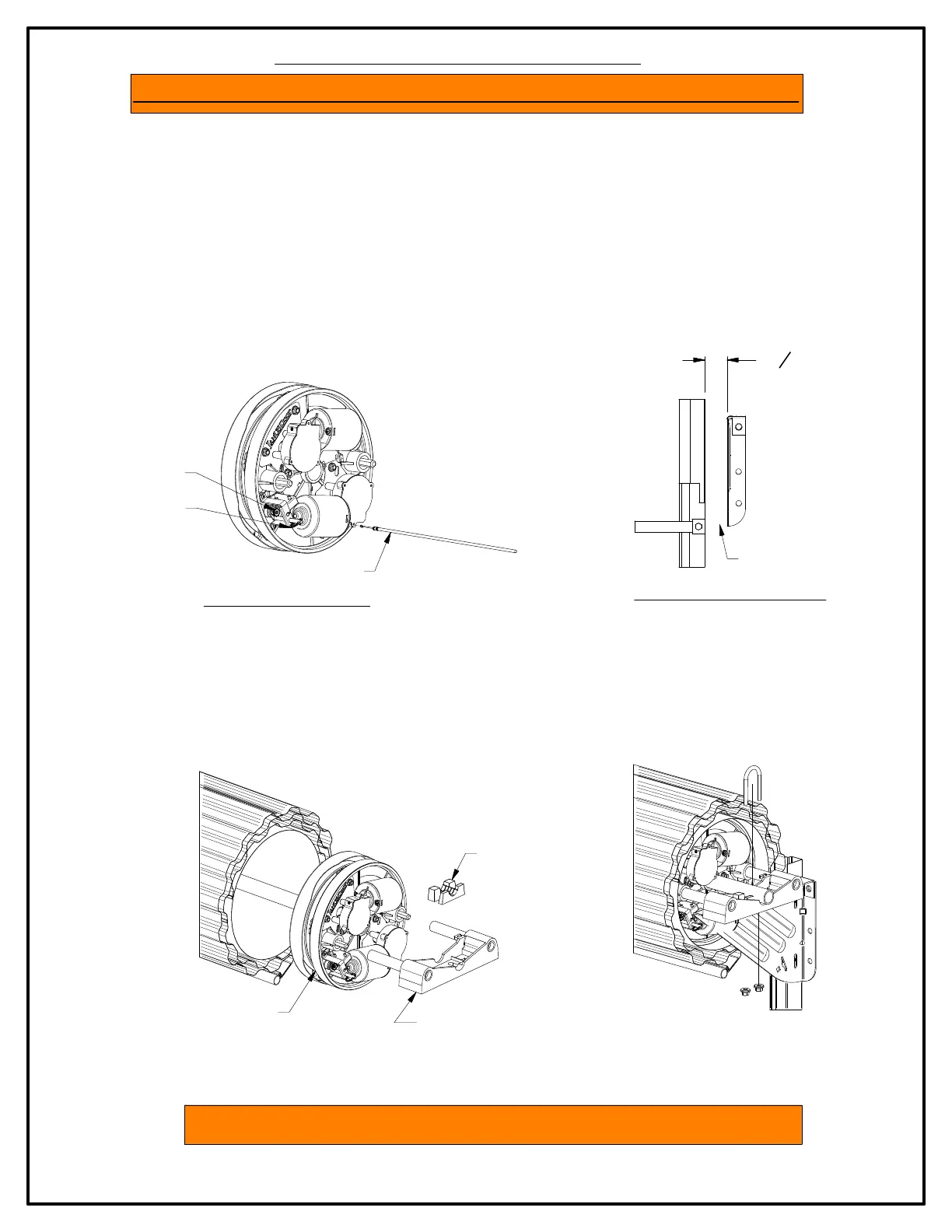

OPTIONAL PANTHEON INSTALLATION
Remove the knurled split nut.
Pull ring on spring loaded pin and twist to disengage auto (electric mode.
Uncoil the manual release cable and insert the free end of the cable into the threaded recess where the knurled split nut
was
removed
Reinstall knurled split nut and tighten
Carefully coil release cable and motor electric cables together and secure to each other in order to prevent uncoiling or
da
mage during installation of the door
Remove right hand bracket from end of door.
KNURLED SPLIT NUT
SPRING LOADED PIN
MANUAL RELEASE CABLE
NO SPACERS
PANTHEON DRIVE UNIT
GUIDE / BRACKET SPACING
CAST IRON SADDLE
ANCHOR BRACKET WITH
STEEL TUBES INSERTED
PANTHEON COMMERCIAL
ROLLING DOOR OPERATOR
When installing Commercial Pantheon spacing is required between guide and inside of drive end bracket. Drive end door
bracket is mounted independent of guide.
NO SPACERS ARE REQUIRED OR PROVIDED.
Assure Guides are plumb, holding back of guide to back of guide dimension, and door brackets are level with one another.
1-
1
4
"
NOTE: CONNECTING THE MANUAL RELEASE CABLE TO DIVE IS TO BE DONE BEFORE DOOR IS INSTALLED
FOR THE COMPLETE INSTRUCTIONS ON INSTALLING AND SETTING UP THE PANTHEON MOTOR,
PLEASE REFERENCE THE PANTHEON INSTRUCTIONS FOR FURTHER DETAILS.
